频率：45.000MHz
尺寸：2.0x1.6x0.5mm
Quarztechnik手机晶振,QTC2045.0000FBT3I30R,车载控制器晶振，德国进口晶振，Quarztechnik晶振，夸克晶振，型号：QTC20，编码为：QTC2045.0000FBT3I30R，频率为：45.000MHz，小体积晶振尺寸：2.0x1.6x0.5mm超小型封装，无源晶振，四脚贴片晶振，石英晶振，2016晶振，石英晶体谐振器，SMD晶振，带金属盖的接缝密封陶瓷包装，确保高精度和可靠性。具有超小型，轻薄型，高精度，高性能，高品质，高质量，耐热及耐环境特点。适用于：薄型设备，高密度应用，手机晶振，汽车电子晶振，调制解调器、通信和测试设备，MCIA，无线应用，汽车应用，通讯设备，无线网络，智能家居等。

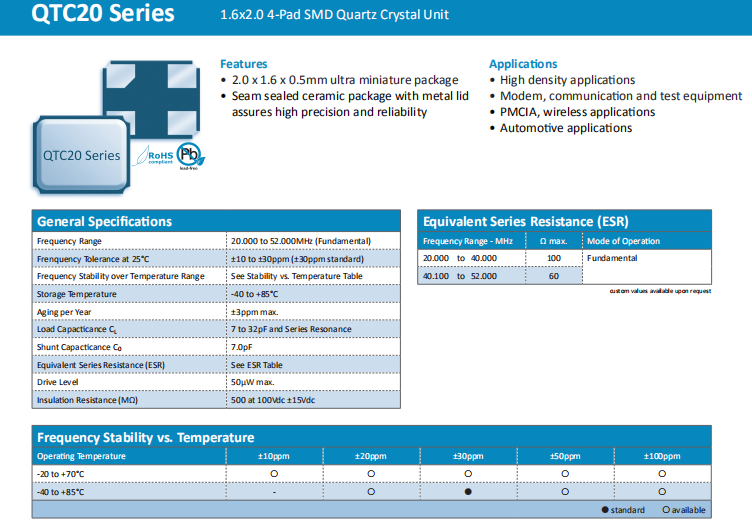

Quarztechnik手机晶振,QTC2045.0000FBT3I30R,车载控制器晶振,参数表
Frequency Range
45.000MHz
Frenquency Tolerance at 25°C
±10 to ±30ppm (±30ppm standard)
Frequency Stability over Temperature Range
See Stability vs. Temperature Table
Storage Temperature
-40 to +85°C
Aging per Year
±3ppm max.
Load Capacticance CL
7 to 32pF and Series Resonance
Shunt Capacticance C0
7.0pF
Equivalent Series Resistance (ESR)
See ESR Table
Drive Level
50μW max.
Insulation Resistance (MΩ)
500 at 100Vdc ±15Vdc
Quarztechnik手机晶振,QTC2045.0000FBT3I30R,车载控制器晶振,尺寸图
Quarztechnik手机晶振,QTC2045.0000FBT3I30R,车载控制器晶振
产品特点：
尺寸：2.0x1.6x0.5mm超小型封装
频率范围：20MHz~52MHz进口贴片晶振
带金属盖的接缝密封陶瓷包装
确保高精度和可靠性
应用程序
高密度应用
调制解调器、通信和测试设备
PMCIA，无线应用
汽车应用
| 石英晶振 | 频率 | 负载电容 | 精度 | 稳定性 | 工作温度范围 |
| QTC7A8.00000FDT1I20M | 8.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC7A10.0000FDT1I20M | 10.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC7A11.0592FDT1I20M | 11.0592 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC7A12.0000FDT1I20M | 12.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC7A14.31818FDT1I20M | 14.31818 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC7A14.7456FDT1I20M | 14.7456 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC7A16.0000FDT1I20M | 16.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC7A19.6608FDT1I20M | 19.6608 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC7A24.0000FDT1I20M | 24.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC7A25.0000FDT1I20M | 25.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC7A27.0000FDT1I20M | 27.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC7A32.0000FDT1I20M | 32.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC6A8.00000FDT1I20M | 8.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC6A11.0592FDT1I20M | 11.0592 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC6A12.0000FDT1I20M | 12.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC6A14.7456FDT1I20M | 14.7456 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC6A16.0000FDT1I20M | 16.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC6A20.0000FDT1I20M | 20.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC6A24.0000FDT1I20M | 24.0 MHz夸克晶振 | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC6A25.0000FDT1I20M | 25.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC6A27.0000FDT1I20M | 27.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC6A32.0000FDT1I20M | 32.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC5A8.00000FDT1I20M | 8.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC5A12.0000FDT1I20M | 12.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC5A12.2880FDT1I20M | 12.288 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC5A15.3600FDT1I20M | 15.360 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC5A16.0000FDT1I20M | 16.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC5A18.4320FDT1I20M | 18.432 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC5A20.0000FDT1I20M | 20.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC5A24.5760FDT1I20M | 24.576 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC5A25.0000FDT1I20M | 25.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC5A27.0000FDT1I20M | 27.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC5A30.0000FDT1I20M | 30.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC5A40.0000FDT1I20M | 40.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC5A48.0000FDT1I20M | 48.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC3216.0000FDT1I20M | 16.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC3218.4320FDT1I20M | 18.432 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC3220.0000FDT1I20M | 20.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC3224.0000FDT1I20M | 24.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC3225.0000FDT1I20M | 25.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC3227.0000FDT1I20M | 27.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
