1N212000BC0AK,DSX321G陶瓷晶振,KDS日产晶振

当前位置：首页 » 日产晶振 » 1N212000BC0AK,DSX321G陶瓷晶振,KDS日产晶振

prevnext

1N212000BC0AK,DSX321G陶瓷晶振,KDS日产晶振

频率：12M

尺寸：3225

1N212000BC0AK,DSX321G陶瓷晶振,KDS日产晶振,陶瓷谐振器密封封装,频率一致性好,抗温漂,抗振动,长期老化表现优异,保障硬件时序稳定可靠.标准3225贴片尺寸,节省PCB布局空间,适配大批量SMT产线焊接,满足研发打样及项目量产需求.康华尔电子作为KDS晶振正规代理,提供选型技术支持,试样打样,协调现货与交期,严控物料原装品质,降低采购风险,有采购选型需求欢迎来电咨询0755?27838351.

订购热线：86-0755-27838351

1N212000BC0AK,DSX321G陶瓷晶振,KDS日产晶振

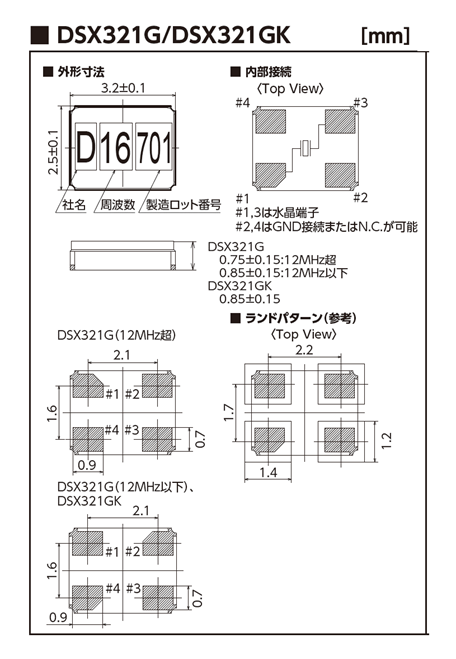

1N212000BC0AK为KDS日产DSX321G系列3225陶瓷贴片晶振,3.2×2.5mm微型4脚SMD无源谐振器,基波模式,具备优异耐热抗冲击性能,频率输出稳定,支持回流焊工艺,编带包装适配SMT自动化贴装生产.器件符合RoHS环保标准,温度适应性强,可给MCU,无线模组提供精准基准时钟,广泛用于工控设备,蓝牙模块,消费电子等时钟电路.康华尔电子是KDS晶振品牌代理,可提供规格书,样品测试,批量供货,原厂货源品质保障,欢迎来电咨询0755?27838351.

1N212000BC0AK,DSX321G陶瓷晶振,KDS日产晶振

品牌	日本KDS晶振
频率	12M
编码	1N212000BC0AK
负载	12PF
尺寸	3225
温度	-10+70°C
精度	20PP
类型	无源晶振
产地	日产
启动时间	-
包装单位	3000 个/卷（Φ180）

1N212000BC0AK,DSX321G陶瓷晶振,KDS日产晶振

所有产品的共同点
1,抗冲击
晶体产品可能会在某些条件下受到损坏.例如从桌上跌落或在贴装过程中受到冲击.如果产品已受过冲击请勿使用.
2,辐射
暴露于辐射环境会导致产品性能受到损害,因此应避免照射.
3,化学制剂/pH值环境
请勿在PH值范围可能导致腐蚀或溶解产品或包装材料的环境下使用或储藏这些产品.
4,粘合剂
请勿使用可能导致产品所用的封装材料,终端,组件,玻璃材料以及气相沉积材料等受到腐蚀的胶粘剂.
5,卤化合物
请勿在卤素气体环境下使用产品.即使少量的卤素气体,比如在空气中的氯气内或封装所用金属部件内,都可能产生腐蚀.同时,请勿使用任何会释放出卤素气体的树脂.
6,静电
过高的静电可能会损坏产品,请注意抗静电条件.请为容器和封装材料选择导电材料.在处理的时候,请使用电焊枪和无高电压泄漏的测量电路,并进行接地操作.

KDS	1N227000EE0L	DSX321G	3225	27.000M
KDS	1N226000AA0L	DSX321G	3225	26.000M
KDS	1N226000AA0G	DSX321G	3225	26.000M
KDS	1N226000AA0E	DSX321G	3225	26.000M
KDS	1C228322EE0D	DSX321G	3225	28.322M
KDS	1C254000CC0C	DSX321G	3225	54.000M
KDS	1C319200AA0A	DSX321G	3225	19.200M
KDS	1C338400AA0B	DSX321G	3225	38.400M
KDS	1C227000BBAH	DSX321G	3225	27.000M
KDS		DSX321G	3225	40.000M
KDS	1C208000CE0H	DSX321G	3225	8.000M
KDS	1N232000AA0N	DSX321G		32.000M
KDS	1C208000CE0H	DSX321G	3225	8.000M
KDS	1N232000AA0N	DSX321G	3225	32.000M
KDS	7AD01200A1R	DSX321G	3225	12.000M
KDS	1C216000BF0B	DSX321G	3225	16.000M
KDS	7AD00800A1C	DSX321G	3225	8.000M
KDS	1N226000AB0J	DSX321G	3225	26.000MHZ
KDS	1N227000AB0N	DSX321G	3225	27MHZ
KDS	1C226000BE0D	DSX321G	3225	26MHZ
KDS	1C216384BE0D	DSX321G	3225	16.384MHZ
KDS	1C224576AC0A	DSX321G	3225	24.576MHZ
KDS	1C210000EK0C	DSX321G	3225	10.000MHZ
KDS	1N226000AB0M	DSX321G	3225	26MHZ
KDS	1N340000LA0B	DSX321G	3225	40.000MHZ
KDS	1C340000LA0A	DSX321G	3225	40.000MHZ
KDS	1C233333BC0G	DSX321G	3225	33.333333MHZ
KDS	1C214745CE0E	DSX321G	3225	14.7456MHZ
KDS	1C262400BK0A	DSX321G	3225	62.4MHZ
KDS	1N226000AA0G	DSX321G	3225	26.000M
KDS	1N226000AA0AE	DSX321G	3225	26.000M
KDS	1N230000AB0C	DSX321G	3225	30.000M
KDS	1N226000AB0M	DSX321G	3225	26.000M
KDS	1N215974EE0B	DSX321G	3225	15.9744M
KDS	1C216000CZ0B	DSX321G	3225	16.000M
KDS	1C240000AB0G	DSX321G	3225	40.000M
KDS	1N226000AA0G	DSX321G	3225	26.000M
KDS	1C340000LA0A	DSX321G	3225	40.000M
KDS	1C213225CC0B	DSX321G	3225	13.225625M
KDS	1N224265ZZ0A	DSX321G	3225	24.265M
KDS	1N340000LA0B	DSX321G	3225	40.000M
KDS	1C214745CE0E	DSX321G	3225	14.7456M
KDS	1C216000EC0A	DSX321G	3225	16.000M
KDS	1C224000CE0AK	DSX321G	3225	24.000M
KDS	1C224545CE0A	DSX321G	3225	24.54545M
KDS	1C225000BE0M	DSX321G	3225	25.000M
KDS	1C232000AB0V	DSX321G	3225	32.000M
KDS	1N232000AA0R	DSX321G	3225	32.000M
KDS	1C216000CC0K	DSX321G	3225	16.000M
KDS	1C224000EZ0B	DSX321G	3225	24.000M
KDS	1N226000AB0J	DSX321G	3225	26.000M
KDS	1N227000BB0N	DSX321G	3225	27.000M
KDS	1ZCV27600BZ0A	DSX321GK	3225	27.6M
KDS	1C220000AB0B	DSX321G	3225	20.000M
KDS	1C227000BBAH	DSX321G	3225	27.000M
KDS	1C236864BD0A	DSX321G	3225	36.864M
KDS	1C241600CDAA	DSX321G	3225	41.6M
KDS	1C262400BC0C	DSX321G	3225	62.4M
KDS	1N225400BC0D	DSX321G	3225	25.4M
KDS	1N227000CC0BT	DSX321G	3225	27.000M
KDS	1N227000EE0L	DSX321G	3225	27.000M
KDS	1N233000EE0D	DSX321G	3225	33.000M
KDS	1N233333BC0G	DSX321G	3225	33.333M
KDS	1N226000AA0E	DSX321G	3225	26.000M
KDS	1C316000AB0D	DSX321G	3225	16.000M
KDS	1C211289EE0C	DSX321G	3225	11.2896M
KDS	1C211600BB0A	DSX321G	3225	11.6M
KDS	1C216000BK0B	DSX321G	3225	16.000M
KDS	1C216000EE0B	DSX321G	3225	16.000M
KDS	1C220000CK0K	DSX321G	3225	20.000M
KDS	1C233333BC0G	DSX321G	3225	33.333M
KDS	1C248000EE0BM	DSX321G	3225	48.000M
KDS	1N227000AB0N	DSX321G	3225	27.000M
KDS	1B326000BC0A	DSX321G	3225	26.000M
KDS	1C316000AB0E	DSX321G	3225	16.000M
KDS	1C210000EK0C	DSX321G	3225	10.000M
KDS	1N226000AA0D	DSX321G	3225	26.000M
KDS	1C316000AB0E	DSX321G	3225	16.000M
KDS	1C208000EE0BL	DSX321G	3225	8.000M
KDS	1C208000CE0H	DSX321G	3225	8.000M
KDS	1C208000BC0R	DSX321G	3225	8.000M
KDS	1N226000AA0L	DSX321G	3225	26.000MHZ
KDS	1N226000AA0D	DSX321G	3225
KDS	1N216000AB0D	DSX321G	3225	16MHz
KDS	1N226000AA0D	DSX321G	3225
KDS	1C212000AA0H	DSX321G	3225	12.000MHZ
KDS	1C326000AB0AR	DSX321G	3225	26MHZ
KDS	1C208000BB0B	DSX321G	3225	8.000MHZ
KDS	1C208000CE0H	DSX321G	3225	8.000MHZ
KDS	1C209830CC0C	DSX321G	3225	9.8304MHZ
KDS	1C210000EE0M	DSX321G	3225	10.000MHZ
KDS	1C211059EE0K	DSX321G	3225	11.0592MHZ
KDS	1C211289EE0C	DSX321G	3225	11.2896MHZ
KDS	1C212000AA0H	DSX321G	3225	12.000MHZ
KDS	1N212000BC0AK	DSX321G	3225	12.000MHZ
KDS	1C212288EE0B	DSX321G	3225	12.288MHZ
KDS	1B214318CC0F	DSX321G	3225	14.31818MHZ
KDS	1C214745BC0D	DSX321G	3225	14.7456MHZ
KDS	1N214745CE0F	DSX321G	3225	14.7456MHZ
KDS	1N216000AB0D	DSX321G	3225	16.000MHZ
KDS	1N216000AB0AT	DSX321G	3225	16.000MHZ
KDS	1N216000CC0B	DSX321G	3225	16.000MHZ
KDS	1C319200AA0A	DSX321G	3225	19.200MHZ
KDS	1N220000AB0B	DSX321G	3225	20.000MHZ
KDS	1N224000BC0E	DSX321G	3225	24.000MHZ
KDS	1C225000BC0AV	DSX321G	3225	25.000MHZ
KDS	1N225000BC0J	DSX321G	3225	25.000MHZ
KDS	1N225000BC0M	DSX321G	3225	25.000MHZ
KDS	1C326000AB0AR	DSX321G	3225	26.000MHZ
KDS	1N326000AB0AR	DSX321G	3225	26.000MHZ
KDS	1N326000AA0AS	DSX321G	3225	26.000MHZ
KDS	1N226000AA0D	DSX321G	3225	26.000MHZ
KDS	1N226000AA0E	DSX321G	3225	26.000MHZ
KDS	1N226000AA0G	DSX321G	3225	26.000MHZ
KDS	1N226000AA0L	DSX321G	3225	26.000MHZ
KDS	1C227120CC0E	DSX321G	3225	27.120MHZ
KDS	1N230000AB0C	DSX321G	3225	30.000MHZ
KDS	1N230000EE0N	DSX321G	3225	30.000MHZ
KDS	1N232000AA0G	DSX321G	3225	32.000MHZ
KDS	1N232000AA0N	DSX321G	3225	32.000MHZ
KDS	1N337400AA0A	DSX321G	3225	37.400MHZ
KDS	1C338400AA0B	DSX321G	3225	38.400MHZ
KDS	1N240000AB0J	DSX321G	3225	40.000MHZ
KDS	1C244395BC0A	DSX321G	3225	44.395MHZ
KDS	1C254000CC0C	DSX321G	3225	54.000MHZ
KDS	1C255466CC0J	DSX321G	3225	55.46667MHZ
KDS	1C262400CC0A	DSX321G	3225	62.400MHZ
KDS	1C262400CC0N	DSX321G	3225	62.400MHZ
KDS	1N262400CC0N	DSX321G	3225	62.400MHZ
KDS	1C208000BB0B	DSX321G	3225	8.000MHZ
KDS	1C208000CE0H	DSX321G	3225	8.000MHZ
KDS	1C209830CC0C	DSX321G	3225	9.8304MHZ
KDS	1C210000EE0M	DSX321G	3225	10.000MHZ
KDS	1C211059EE0K	DSX321G	3225	11.0592MHZ
KDS	1C211289EE0C	DSX321G	3225	11.2896MHZ
KDS	1C212000AA0H	DSX321G	3225	12.000MHZ
KDS	1N212000BC0AK	DSX321G	3225	12.000MHZ
KDS	1C212288EE0B	DSX321G	3225	12.288MHZ
KDS	1B214318CC0F	DSX321G	3225	14.31818MHZ
KDS	1C214745BC0D	DSX321G	3225	14.7456MHZ
KDS	1N214745CE0F	DSX321G	3225	14.7456MHZ
KDS	1N216000AB0D	DSX321G	3225	16.000MHZ
KDS	1N216000AB0AT	DSX321G	3225	16.000MHZ
KDS	1N216000CC0B	DSX321G	3225	16.000MHZ
KDS	1C319200AA0A	DSX321G	3225	19.200MHZ
KDS	1N220000AB0B	DSX321G	3225	20.000MHZ
KDS	1N224000BC0E	DSX321G	3225	24.000MHZ
KDS	1C225000BC0AV	DSX321G	3225	25.000MHZ
KDS	1N225000BC0J	DSX321G	3225	25.000MHZ
KDS	1N225000BC0M	DSX321G	3225	25.000MHZ
KDS	1C326000AB0AR	DSX321G	3225	26.000MHZ
KDS	1N326000AB0AR	DSX321G	3225	26.000MHZ
KDS	1N326000AA0AS	DSX321G	3225	26.000MHZ
KDS	1N226000AA0D	DSX321G	3225	26.000MHZ
KDS	1N226000AA0E	DSX321G	3225	26.000MHZ
KDS	1N226000AA0G	DSX321G	3225	26.000MHZ
KDS	1N226000AA0L	DSX321G	3225	26.000MHZ
KDS	1C227120CC0E	DSX321G	3225	27.120MHZ
KDS	1N230000AB0C	DSX321G	3225	30.000MHZ
KDS	1N230000EE0N	DSX321G	3225	30.000MHZ
KDS	1N232000AA0G	DSX321G	3225	32.000MHZ
KDS	1N232000AA0N	DSX321G	3225	32.000MHZ
KDS	1N337400AA0A	DSX321G	3225	37.400MHZ
