爱普生LVDS晶振,SG2016VGN振荡器,X1G0061110002,6G路由器晶振

爱普生LVDS晶振,SG2016VGN振荡器,X1G0061110002,6G路由器晶振爱普生LVDS晶振,SG2016VGN振荡器,X1G0061110002,6G路由器晶振

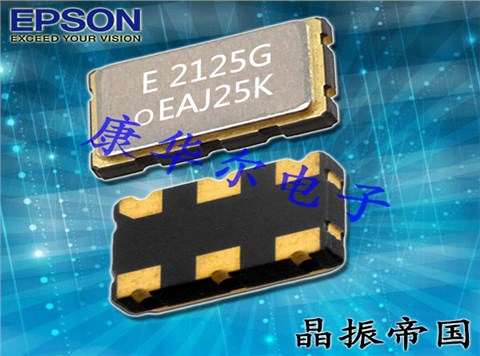

产品简介

爱普生LVDS晶振,SG2016VGN振荡器,X1G0061110002,6G路由器晶振，尺寸为2.0*1.6mm，频率为156.25MHZ，输出逻辑LVDS，差分晶振LVDS，LVDS差分晶体振荡器，OSC差分晶振，有源差分晶振，石英差分振荡器，低电压差分晶振，低耗能差分晶振，6G应用差分晶振，6G网络设备差分晶振，6G将使网络通信流量呈指数级增长。6G通信网络要求高速宽频带，同时最大限度地减少噪音。这将实现与高频率，低抖动用于通信设备的参考时钟，其中将使用小尺寸光模块。
SG2016VGN/SG2520VGN贴片差分晶振是非常受欢迎的SG3225VEN系列的下一代产品具有广泛的可用频率范围，低抖动和改进的频率容限的功能组合由于在更小的封装中使用了带有温度补偿的内部设计IC，因此性能更好。产品非常适合用于网络设备(路由器、交换机、光模块等)，数据中心，测试和测量设备，工厂自动化，高速转换器，如ADC和DAC等应用程序.爱普生LVDS晶振,SG2016VGN振荡器,X1G0061110002,6G路由器晶振.

产品详情

1

爱普生LVDS晶振,SG2016VGN振荡器,X1G0061110002,6G路由器晶振，尺寸为2.0*1.6mm，频率为156.25MHZ，输出逻辑LVDS，差分晶振LVDS，LVDS差分晶体振荡器，OSC差分晶振，有源差分晶振，石英差分振荡器，低电压差分晶振，低耗能差分晶振，6G应用差分晶振，6G网络设备差分晶振，6G将使网络通信流量呈指数级增长。6G通信网络要求高速宽频带，同时最大限度地减少噪音。这将实现与高频率，低抖动用于通信设备的参考时钟，其中将使用小尺寸光模块。
SG2016VGN/SG2520VGN贴片差分晶振是非常受欢迎的SG3225VEN系列的下一代产品具有广泛的可用频率范围，低抖动和改进的频率容限的功能组合由于在更小的封装中使用了带有温度补偿的内部设计IC，因此性能更好。产品非常适合用于网络设备(路由器、交换机、光模块等)，数据中心，测试和测量设备，工厂自动化，高速转换器，如ADC和DAC等应用程序.爱普生LVDS晶振,SG2016VGN振荡器,X1G0061110002,6G路由器晶振.

2

爱普生LVDS晶振,SG2016VGN振荡器,X1G0061110002,6G路由器晶振参数表

Parameter Symbol Specification Unit Conditions
Min. Typ. Max.
Maximum supply voltage VCC -0.3 - 4.0 V
Input voltage Vin -0.3 - VCC+ 0.5 V 一一
OE/ST terminal
Storage temperature range T_stg -55 - +125 °C
Parameter Symbol Specification Unit Conditions
Min. Typ. Max.
Supply voltage VCC 1.71 1.8 1.89 V Suffix: E, Output option: A or C
2.375 2.5 2.625 V Suffix: D
3.135 3.3 3.465 V Suffix: C
Supply voltage GND 0.0 0.0 0.0 V
Operating temperature range T_use -40 +25 +85 °C Suffix: G
-40 +25 +105 °C Suffix: H
LVDS load condition L_LVDS 100 Ω
Parameter Symbol Specification Unit Conditions
Min. Typ. Max.
Output frequency *1 fo

156.25 MHz
Frequency tolerance *2 f_tol -25 - +25 ×10-6 Suffix: D
-50 - +50 ×10-6 Suffix: J
Parameter Symbol Specification Unit Conditions
Min. Typ. Max.
Startup time t_str - - 10 ms t = 0 at 90 % VCC
Current consumption ICC - - 25 mA Output option: A, fo < 212 MHz
VCC= 2.5 V, 3.3 V Typ.
- - 28 mA Output option: A, fo≥212 MHz
VCC= 2.5 V, 3.3 V Typ.
- - 30 mA Output option: B, fo < 212 MHz
VCC= 2.5 V, 3.3 V Typ.
- - 35 mA Output option: B, fo≥212 MHz
VCC= 2.5 V, 3.3 V Typ.
- - 25 mA Output option: C, fo < 212 MHz
VCC= 2.5 V, 3.3 V Typ.
- - 28 mA Output option: C,
212 MHz≤fo < 392 MHz
VCC= 2.5 V, 3.3 V Typ.
- - 30 mA Output option: C, fo≥392 MHz
VCC= 2.5 V, 3.3 V Typ.
- - 25 mA Output option: A or C
VCC= 1.8 V Typ.
Disable current I_dis - - 20 mA OE = GND
Stand-by current I_std - - 30 μA = GND, T_use Max. = +85 °C
- - 60 μA = GND, T_use Max. = +105 °C
Rise time / Fall time tr / tf - - 0.35 ns 20 % - 80 % of VSW
Symmetry SYM 45 50 55 % At output crossing point
Output voltage VOD 250 - 450 mV Output option: A
400 - 800 mV Output option: B
Not available for VCC= 1.8 V Typ.
300 - 600 mV Output option: C
dVOD - - 50 mV |VOD1- VOD2|
VOS 1.15 - 1.35 V VCC= 2.5 V, 3.3 V Typ.
0.65 - 0.85 V VCC= 1.8 V Typ.
dVOS - - 50 mV |VOS1- VOS2|
Differential swing VSW 500 - 900 mV Output option: A
800 - 1 600 mV Output option: B
Not available for VCC= 1.8 V Typ.
600 - 1 200 mV Output option: C
Input voltage VIH 70 % VCC - - V OE/terminal
VIL - - 30 % VCC V
Output disable time (OE) tstp_oe - - 100 ns OE terminal HIGH → LOW
Output disable time (ST) tstp_st - - 100 ns terminal HIGH → LOW
Output enable time (OE) tsta_oe - - 500 ns OE terminal LOW → HIGH
Output enable time (ST) tsta_st - - 10 ms terminal LOW → HIGH
Phase jitter
VCC= 2.5 V, 3.3 V Typ.
Offset frequency
fo < 50 MHz; 12 kHz to 5 MHz
fo≥50 MHz: 12 kHz to 20 MHz 		tPJ - - 250 fs fo < 100 MHz
- - 100 fs 100 MHz≤fo≤156 MHz
- - 60 fs 156 MHz < fo≤212 MHz
- - 50 fs fo > 212 MHz
Phase jitter
VCC= 1.8 V Typ.
Offset frequency
fo < 50 MHz: 12 kHz to 5 MHz
fo≥50 MHz: 12 kHz to 20 MHz 		- - 400 fs fo < 100 MHz
- - 130 fs 100 MHz≤fo≤156 MHz
- - 70 fs 156 MHz < fo≤212 MHz
- - 60 fs fo > 212 MHz

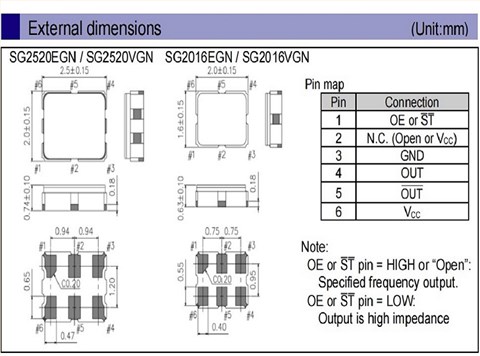

3爱普生LVDS晶振,SG2016VGN振荡器,X1G0061110002,6G路由器晶振 尺寸图SG2016EGN，SG2016VGN,SG2520EGN,SG2520VGN,2016,2520

产品特性：

有源晶体振荡器(SPXO)

频率范围(fo): 25MHz至500MHz

输出:LVDS

电源电压:1.8 V型。/ 2.5 V/ 3.3V类型

工作温度:-40℃~ +105℃

低相位抖动:38fs(fo = 156.25MHz)SG2016VGN SG2520VGN 1
