CS9TVH-155.52,CS9时钟振荡器,拉隆无线路由器晶振，尺寸7.0×5.0mm，频率155.52MHZ，电压3.3V，支持输出LVPECL，美国Raltron晶振，拉隆有源晶振，欧美进口晶振，石英差分振荡器，石英晶体振荡器，7050mm有源晶振，六脚差分晶振，LV-PECL差分晶振，差分晶体振荡器，OSC差分晶振，低电压差分晶振，低功耗差分晶振，低相位差分晶振，低相噪差分晶振，低耗能差分晶振，无线路由器专用差分晶振，服务器差分晶振，移动通信差分晶振，智能家居差分晶振，物联网差分晶振，具有低相位相噪的特点。

差分晶振产品很适合用于无线路由器，服务器，移动通信，智能家居，物联网等领域。CS9TVH-155.52,CS9时钟振荡器,拉隆无线路由器晶振.

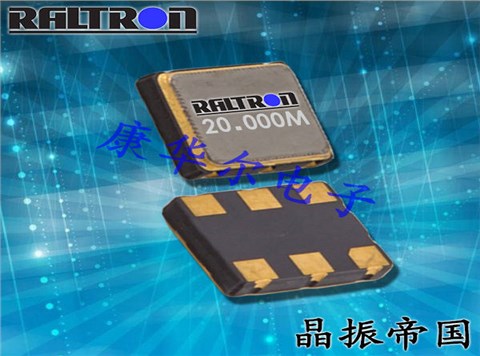

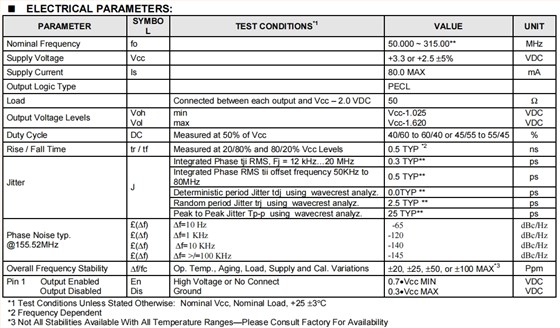

CS9TVH-155.52,CS9时钟振荡器,拉隆无线路由器晶振 参数表

PARAMETER	SYMBO L	TEST CONDITIONS*1	VALUE	UNIT
Nominal Frequency	fo		155.520**	MHz
Supply Voltage	Vcc		+3.3 or +2.5±5%	VDC
Supply Current	Is		80.0 MAX	mA
Output Logic Type			PECL
Load		Connected between each output and Vcc – 2.0 VDC	50	Ω
Output Voltage Levels	Voh Vol	min max	Vcc-1.025 Vcc-1.620	VDC VDC
Duty Cycle	DC	Measured at 50% of Vcc	40/60 to 60/40 or 45/55 to 55/45	%
Rise / Fall Time	tr / tf	Measured at 20/80% and 80/20% Vcc Levels	0.5 TYP*2	ns
Jitter	J	Integrated Phase tji RMS, Fj = 12 kHz…20 MHz	0.3 TYP**	ps
		Integrated Phase RMS tii offset frequency 50KHz to 80MHz	0.5 TYP**	ps
		Deterministic period Jitter tdjusingwavecrest analyz.	0.0TYP **	ps
		Random period Jitter trjusingwavecrest analyz.	2.5 TYP **	ps
		Peak to Peak Jitter Tp-pusingwavecrest analyz.	25 TYP**	ps
Phase Noise typ. @155.52MHz	£(Δf) £(Δf) £(Δf) £(Δf)	Δf=10 Hz Δf=1 KHz Δf=10 KHz Δf=>/=100 KHz	-65 -120 -140 -145	dBc/Hz dBc/Hz dBc/Hz dBc/Hz
Overall Frequency Stability	Δf/fc	Op. Temp., Aging, Load, Supply and Cal. Variations	±20,±25,±50, or±100 MAX*3	Ppm
Pin 1Output Enabled Output Disabled	En Dis	High Voltage or No Connect Ground	0.7.Vcc MIN 0.3.Vcc MAX	VDC VDC

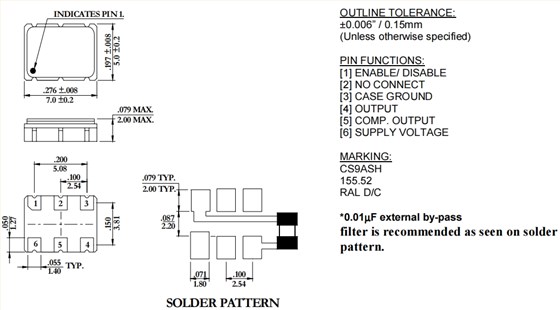

CS9TVH-155.52,CS9时钟振荡器,拉隆无线路由器晶振 尺寸图

CS9TVH-155.52,CS9时钟振荡器,拉隆无线路由器晶振

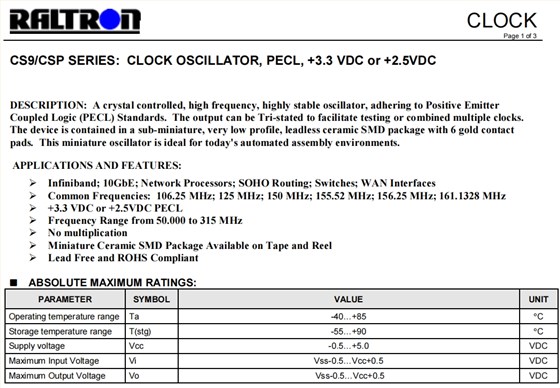

差分贴片晶振产品特点：

Infiniband；10GbE；网络处理器；SOHO路由；开关；WAN接口

“常用频率：106.25 MHz；125 MHz；150 MHz；155.52 MHz；156.25 MHz；161.1328 MHz

“+3.3 VDC或+2.5 VDC PECL

“频率范围从50.000到315 MHz

“没有乘法

“微型陶瓷SMD封装可用于磁带和卷轴

“无铅且符合ROHS
