XUL735200.000000I,Renesas Electronics,瑞萨差分晶振

XUL735200.000000I,Renesas Electronics,瑞萨差分晶振

产品简介

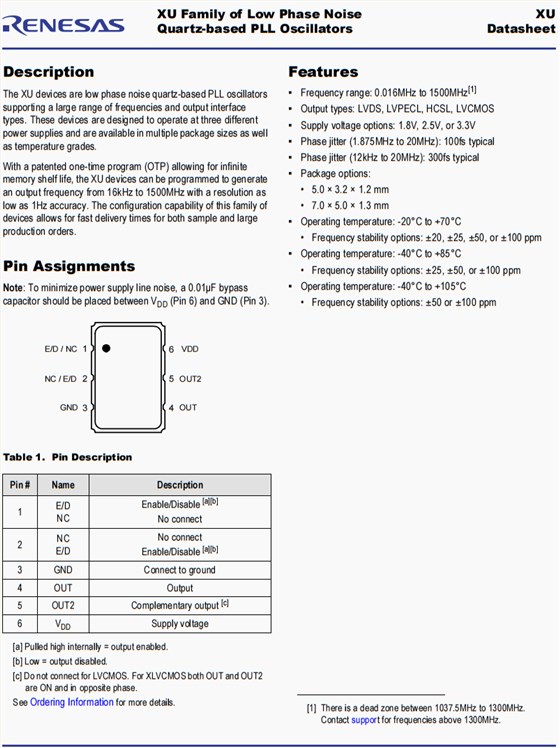

XUL735200.000000I,Renesas Electronics,瑞萨差分晶振，XU器件是低相位噪声石英基锁相环有源晶体振荡器，支持大范围的频率和输出接口类型。这些器件设计用于在三种不同的电源下工作，并提供多种封装尺寸和温度等级。凭借获得专利的一次性程序(OTP)，允许无限的存储保质期，XU设备可以编程产生从16kHz到1500MHz的输出频率，分辨率低至1Hz精度。该系列设备的配置能力允许样品和大型生产订单的快速交付时间。进口晶振，石英晶振，瑞萨晶振，有源晶振，六脚晶振，贴片晶振，高品质晶振， 差分晶振，LVDS晶振，高精度晶振，低损耗晶振，航空航天晶振。

产品详情

1

XUL735200.000000I,RenesasElectronics,瑞萨差分晶振，XU器件是低相位噪声石英基锁相环有源晶体振荡器，支持大范围的频率和输出接口类型。这些器件设计用于在三种不同的电源下工作，并提供多种封装尺寸和温度等级。凭借获得专利的一次性程序(OTP)，允许无限的存储保质期，XU设备可以编程产生从16kHz到1500MHz的输出频率，分辨率低至1Hz精度。该系列设备的配置能力允许样品和大型生产订单的快速交付时间。进口晶振，石英晶振，瑞萨晶振，有源晶振，六脚晶振，贴片晶振，高品质晶振， 差分晶振，LVDS晶振，高精度晶振，低损耗晶振，航空航天晶振。

2

Renesas瑞萨晶振,XUP535125.000JS6I8,XU差分振荡器,6G发射器晶振参数表

Symbol Parameter Test Condition Minimum Typical Maximum Units
F 输出频率范围 LVDS. 0.016 1500 MHz
LVPECL, HCSL. 0.016 670
LVCMOS. 0.016 167
频率稳定度 Temperature = -20°C to +70°C. -20
-25
-50
-100 		+20
+25
+50
+100 		ppm
Temperature = -40°C to +85°C. -25
-50
-100 		+25
+50
+100 		ppm
Temperature = -40°C to +105°C. -50
-100 		+50
+100 		ppm
输出负载 LVDS. 100 Ω
LVPECL. 50
HCSL. 50
LVCMOS. 15 pF
TST 启动时间 Output valid time after VDDmeets minimum specified level. 10 ms
tR 输出上升时间 LVDS. 275 380 ps
LVPECL. 400
HCSL. 330
LVCMOS. 3 ns
tF 输出下降时间 LVDS. 275 380 ps
LVPECL. 400
HCSL. 330
LVCMOS. 3 ns
ODC 输出时钟工作周期 LVDS. 45 55 %
LVPECL. 45 55
40 60
HCSL. 45 55
LVCMOS. 45 55
40 60
TOE 输出启用/禁用时间 100 ns

3

XU


XU1

XU2

更多相关Renesas晶振型号

Renesas原厂编码 生产商品牌 型号 频率 输出 电源电压 频率稳定度 工作温度
XUL535100.000000I Renesas晶振 XU 100 MHz LVDS 3.3V ±50ppm -40°C ~ 85°C
XUL516100.000000I Renesas晶振 XU 100 MHz LVDS 1.8V ±25ppm -40°C ~ 85°C
XUN535100.000000I Renesas晶振 XU 100 MHz HCSL 3.3V ±50ppm -40°C ~ 85°C
XUL536100.000000I Renesas晶振 XU 100 MHz LVDS 3.3V ±25ppm -40°C ~ 85°C
XUL536125.000000I Renesas晶振 XU 125 MHz LVDS 3.3V ±25ppm -40°C ~ 85°C
XUL536156.250000I Renesas晶振 XU 156.25 MHz LVDS 3.3V ±25ppm -40°C ~ 85°C
XUH518027.120000X Renesas晶振 XU 27.12 MHz HCMOS 1.8V ±20ppm -20°C ~ 70°C
XUH538024.576000X Renesas晶振 XU 24.576 MHz HCMOS 3.3V ±20ppm -20°C ~ 70°C
XUH738016.125000X Renesas晶振 XU 16.125 MHz HCMOS 3.3V ±20ppm -20°C ~ 70°C
XUH738044.736000X Renesas晶振 XU 44.736 MHz HCMOS 3.3V ±20ppm -20°C ~ 70°C
XUH518033.333333X Renesas晶振 XU 33.333333 MHz HCMOS 1.8V ±20ppm -20°C ~ 70°C
XUH738072.000000X Renesas晶振 XU 72 MHz HCMOS 3.3V ±20ppm -20°C ~ 70°C
XUH738022.579200X Renesas晶振 XU 22.5792 MHz HCMOS 3.3V ±20ppm -20°C ~ 70°C
XUH538027.000000X Renesas晶振 XU 27 MHz HCMOS 3.3V ±20ppm -20°C ~ 70°C
XUH538022.579200X Renesas晶振 XU 22.5792 MHz HCMOS 3.3V ±20ppm -20°C ~ 70°C
XUH728025.000000X Renesas晶振 XU 25 MHz HCMOS 2.5V ±20ppm -20°C ~ 70°C
XUH538013.000000X Renesas晶振 XU 13 MHz HCMOS 3.3V ±20ppm -20°C ~ 70°C
XUH728016.125000X Renesas晶振 XU 16.125 MHz HCMOS 2.5V ±20ppm -20°C ~ 70°C
XUH538067.108864X Renesas晶振 XU 67.108864 MHz HCMOS 3.3V ±20ppm -20°C ~ 70°C
XUH538125.000000X Renesas晶振 XU 125 MHz HCMOS 3.3V ±20ppm -20°C ~ 70°C
XUH535004.000000X Renesas晶振 XU 4 MHz LVCMOS 3.3V ±50ppm -20°C ~ 70°C
XUH515045.125000I Renesas晶振 XU 45.125 MHz LVCMOS 1.8V ±50ppm -40°C ~ 85°C
XUH525125.000000I Renesas晶振 XU 125 MHz LVCMOS 2.5V ±50ppm -40°C ~ 85°C
XUH516033.333300I Renesas晶振 XU 33.3333 MHz LVCMOS 1.8V ±25ppm -40°C ~ 85°C
XUH536090.000000I Renesas晶振 XU 90 MHz LVCMOS 3.3V ±25ppm -40°C ~ 85°C
XUH536005.000000I8 Renesas晶振 XU 5 MHz LVCMOS 3.3V ±25ppm -40°C ~ 85°C
XUL530039.000000X Renesas晶振 XU 39 MHz LVDS 3.3V ±100ppm -20°C ~ 70°C
XUH516012.000000I Renesas晶振 XU 12 MHz LVCMOS 1.8V ±25ppm -40°C ~ 85°C
XUH515100.000000K Renesas晶振 XU 100 MHz LVCMOS 1.8V ±50ppm -40°C ~ 105°C
XUH535008.000000K Renesas晶振 XU 8 MHz LVCMOS 3.3V ±50ppm -40°C ~ 105°C
XUH535025.000000K Renesas晶振 XU 25 MHz LVCMOS 3.3V ±50ppm -40°C ~ 105°C
XUL515644.530000I Renesas晶振 XU 644.53 MHz LVDS 1.8V ±50ppm -40°C ~ 85°C
XUL526644.530000I Renesas晶振 XU 644.53 MHz LVDS 2.5V ±25ppm -40°C ~ 85°C
XUH738020.000000X Renesas晶振 XU 20 MHz HCMOS 3.3V ±20ppm -20°C ~ 70°C
XUH538010.000000X Renesas晶振 XU 10 MHz HCMOS 3.3V ±20ppm -20°C ~ 70°C
XUH538020.000000X Renesas晶振 XU 20 MHz HCMOS 3.3V ±20ppm -20°C ~ 70°C
XUH538040.000000X Renesas晶振 XU 40 MHz HCMOS 3.3V ±20ppm -20°C ~ 70°C
XUH535003.686000I Renesas晶振 XU 3.686 MHz LVCMOS 3.3V ±50ppm -40°C ~ 85°C
XUH510100.000000X Renesas晶振 XU 100 MHz HCMOS 1.8V ±100ppm -20°C ~ 70°C
XUH535000.127700K Renesas晶振 XU 127.7 kHz HCMOS 3.3V ±50ppm -40°C ~ 105°C
XUH535000.050000X Renesas晶振 XU 50 kHz HCMOS 3.3V ±50ppm -20°C ~ 70°C
XUH515020.000000K Renesas晶振 XU 20 MHz HCMOS 1.8V ±50ppm -40°C ~ 105°C
XUH535025.000000X Renesas晶振 XU 25 MHz HCMOS 3.3V ±50ppm -20°C ~ 70°C
XUH535100.000000X Renesas晶振 XU 100 MHz HCMOS 3.3V ±50ppm -20°C ~ 70°C
XUH535000.192000X Renesas晶振 XU 192 kHz HCMOS 3.3V ±50ppm -20°C ~ 70°C
XUH730049.700000X Renesas晶振 XU 49.7 MHz HCMOS 3.3V ±100ppm -20°C ~ 70°C
XUL535644.531250I Renesas晶振 XU 644.53125 MHz LVDS 3.3V ±50ppm -40°C ~ 85°C
XUH535017.177600X Renesas晶振 XU 17.1776 MHz HCMOS 3.3V ±50ppm -20°C ~ 70°C
XUH535048.000000X Renesas晶振 XU 48 MHz HCMOS 3.3V ±50ppm -20°C ~ 70°C
XUH510133.333000X Renesas晶振 XU 133.333 MHz HCMOS 1.8V ±100ppm -20°C ~ 70°C
XUH535000.042000X Renesas晶振 XU 42 kHz HCMOS 3.3V ±50ppm -20°C ~ 70°C
XUH535024.000000X Renesas晶振 XU 24 MHz HCMOS 3.3V ±50ppm -20°C ~ 70°C
XUH535012.000000X Renesas晶振 XU 12 MHz HCMOS 3.3V ±50ppm -20°C ~ 70°C
XUH525010.000000X Renesas晶振 XU 10 MHz HCMOS 2.5V ±50ppm -20°C ~ 70°C
XUH535000.044000X Renesas晶振 XU 44 kHz HCMOS 3.3V ±50ppm -20°C ~ 70°C
XUH535000.096000X Renesas晶振 XU 96 kHz HCMOS 3.3V ±50ppm -20°C ~ 70°C
XUH525024.000000X Renesas晶振 XU 24 MHz HCMOS 2.5V ±50ppm -20°C ~ 70°C
XUH530000.460800X Renesas晶振 XU 460.8 kHz HCMOS 3.3V ±100ppm -20°C ~ 70°C
XUH530000.032768X Renesas晶振 XU 32.768 kHz LVCMOS 3.3V ±100ppm -20°C ~ 70°C
XUH518090.000000X Renesas晶振 XU 90 MHz LVCMOS 1.8V ±20ppm -20°C ~ 70°C
XUL535075.000000I Renesas晶振 XU 75 MHz LVDS 3.3V ±50ppm -40°C ~ 85°C
XUH518033.000000X Renesas晶振 XU 33 MHz LVCMOS 1.8V ±20ppm -20°C ~ 70°C
XUH518124.000000X Renesas晶振 XU 124 MHz LVCMOS 1.8V ±20ppm -20°C ~ 70°C
XUN535100.000000X Renesas晶振 XU 100 MHz HCSL 3.3V ±50ppm -20°C ~ 70°C
XUH516125.000000I Renesas晶振 XU 125 MHz HCMOS 1.8V ±25ppm -40°C ~ 85°C
XUM520125.000000X Renesas晶振 XU 125 MHz LVDS 2.5V ±100ppm -20°C ~ 70°C
XUP535024.576000X Renesas晶振 XU 24.576 MHz LVPECL 3.3V ±50ppm -20°C ~ 70°C
XUH526024.000000I Renesas晶振 XU 24 MHz HCMOS 2.5V ±25ppm -40°C ~ 85°C
XUP535100.000000X Renesas晶振 XU 100 MHz LVPECL 3.3V ±50ppm -20°C ~ 70°C
XUL525100.000000X Renesas晶振 XU 100 MHz LVDS 2.5V ±50ppm -20°C ~ 70°C
XUH526016.384000I Renesas晶振 XU 16.384 MHz HCMOS 2.5V ±25ppm -40°C ~ 85°C
XUH536100.000000I Renesas晶振 XU 100 MHz HCMOS 3.3V ±25ppm -40°C ~ 85°C
XUP535075.000000X Renesas晶振 XU 75 MHz LVPECL 3.3V ±50ppm -20°C ~ 70°C
XUO535027.000000X Renesas晶振 XU 27 MHz HCSL 3.3V ±50ppm -20°C ~ 70°C
XUH516033.333333I Renesas晶振 XU 33.333333 MHz HCMOS 1.8V ±25ppm -40°C ~ 85°C
XUH516024.000000I Renesas晶振 XU 24 MHz LVCMOS 1.8V ±25ppm -40°C ~ 85°C
XUH516026.000000I Renesas晶振 XU 26 MHz LVCMOS 1.8V ±25ppm -40°C ~ 85°C
XUH516031.250000I Renesas晶振 XU 31.25 MHz LVCMOS 1.8V ±25ppm -40°C ~ 85°C
XUH535133.300000I Renesas晶振 XU 133.3 MHz LVCMOS 3.3V ±50ppm -40°C ~ 85°C
XUH516000.032768I Renesas晶振 XU 32.768 kHz LVCMOS 1.8V ±25ppm -40°C ~ 85°C
XUL535156.250000I Renesas晶振 XU 156.25 MHz LVDS 3.3V ±50ppm -40°C ~ 85°C
XUH515033.000000K Renesas晶振 XU 33 MHz LVCMOS 1.8V ±50ppm -40°C ~ 105°C
XUH510025.000000K Renesas晶振 XU 25 MHz LVCMOS 1.8V ±100ppm -40°C ~ 105°C
XUL538750.000000X Renesas晶振 XU 750 MHz LVDS 3.3V ±20ppm -20°C ~ 70°C
XUL510125.000000I Renesas晶振 XU 125 MHz LVDS 1.8V ±100ppm -40°C ~ 85°C
XUH538033.000000X Renesas晶振 XU 33 MHz LVCMOS 3.3V ±20ppm -20°C ~ 70°C
XUH518001.843200X Renesas晶振 XU 1.8432 MHz LVCMOS 1.8V ±20ppm -20°C ~ 70°C
XUX515024.000000I Renesas晶振 XU 24 MHz HCMOS, LVCMOS 1.8V ±50ppm -40°C ~ 85°C
XUL538098.304000X Renesas晶振 XU 98.304 MHz LVDS 3.3V ±20ppm -20°C ~ 70°C
XUH518031.250000X Renesas晶振 XU 31.25 MHz LVCMOS 1.8V ±20ppm -20°C ~ 70°C
XUH536025.000000I Renesas晶振 XU 25 MHz HCMOS 3.3V ±25ppm -40°C ~ 85°C
XUH536033.333330I Renesas晶振 XU 33.33333 MHz HCMOS 3.3V ±25ppm -40°C ~ 85°C
XUH536030.000000I Renesas晶振 XU 30 MHz HCMOS 3.3V ±25ppm -40°C ~ 85°C
XUH536025.001250I Renesas晶振 XU 25.00125 MHz HCMOS 3.3V ±25ppm -40°C ~ 85°C
XUH735148.500000I Renesas晶振 XU 148.5 MHz HCMOS 3.3V ±50ppm -40°C ~ 85°C
XUH516100.000000I Renesas晶振 XU 100 MHz HCMOS 1.8V ±25ppm -40°C ~ 85°C
XUH536025.600000I Renesas晶振 XU 25.6 MHz HCMOS 3.3V ±25ppm -40°C ~ 85°C
XUH526000.828000I Renesas晶振 XU 828 kHz HCMOS 2.5V ±25ppm -40°C ~ 85°C
XUH736025.000000I Renesas晶振 XU 25 MHz HCMOS 3.3V ±25ppm -40°C ~ 85°C
XUH536033.333300I Renesas晶振 XU 33.3333 MHz HCMOS 3.3V ±25ppm -40°C ~ 85°C
XUH516030.000000I Renesas晶振 XU 30 MHz HCMOS 1.8V ±25ppm -40°C ~ 85°C
XUH536125.000000I Renesas晶振 XU 125 MHz HCMOS 3.3V ±25ppm -40°C ~ 85°C
XUH536050.000000I Renesas晶振 XU 50 MHz HCMOS 3.3V ±25ppm -40°C ~ 85°C
XUH715133.330000I Renesas晶振 XU 133.33 MHz HCMOS 1.8V ±50ppm -40°C ~ 85°C
XUH716125.000000I Renesas晶振 XU 125 MHz HCMOS 1.8V ±25ppm -40°C ~ 85°C
XUH536000.032768I Renesas晶振 XU 32.768 kHz HCMOS 3.3V ±25ppm -40°C ~ 85°C
XUH536000.050000I Renesas晶振 XU 50 kHz HCMOS 3.3V ±25ppm -40°C ~ 85°C
XUH536010.000000I Renesas晶振 XU 10 MHz HCMOS 3.3V ±25ppm -40°C ~ 85°C
XUH515160.000000I Renesas晶振 XU 160 MHz HCMOS 1.8V ±50ppm -40°C ~ 85°C
XUH535156.250000I Renesas晶振 XU 156.25 MHz HCMOS 3.3V ±50ppm -40°C ~ 85°C
XUH516026.214400I Renesas晶振 XU 26.2144 MHz HCMOS 1.8V ±25ppm -40°C ~ 85°C
XUH536020.000000I Renesas晶振 XU 20 MHz HCMOS 3.3V ±25ppm -40°C ~ 85°C
XUH516120.000000X Renesas晶振 XU 120 MHz HCMOS 1.8V ±25ppm -20°C ~ 70°C
XUH535000.034133I Renesas晶振 XU 34.133 kHz HCMOS 3.3V ±50ppm -40°C ~ 85°C
XUH516025.000000X Renesas晶振 XU 25 MHz HCMOS 1.8V ±25ppm -20°C ~ 70°C
XUM516156.250000I Renesas晶振 XU 156.25 MHz LVDS 1.8V ±25ppm -40°C ~ 85°C
XUL538161.132813X Renesas晶振 XU 161.132813 MHz LVDS 3.3V ±20ppm -20°C ~ 70°C
XUH526110.000000I Renesas晶振 XU 110 MHz LVCMOS 2.5V ±25ppm -40°C ~ 85°C
XUH530000.500000I Renesas晶振 XU 500 kHz HCMOS 3.3V ±100ppm -40°C ~ 85°C
XUH515100.000000I Renesas晶振 XU 100 MHz HCMOS 1.8V ±50ppm -40°C ~ 85°C
XUH535000.100000I Renesas晶振 XU 100 kHz HCMOS 3.3V ±50ppm -40°C ~ 85°C
XUH525050.000000I Renesas晶振 XU 50 MHz HCMOS 2.5V ±50ppm -40°C ~ 85°C
XUH515025.000000I Renesas晶振 XU 25 MHz HCMOS 1.8V ±50ppm -40°C ~ 85°C
XUH535156.257000X Renesas晶振 XU 156.257 MHz HCMOS 3.3V ±50ppm -20°C ~ 70°C
XUH515028.636360I Renesas晶振 XU 28.63636 MHz HCMOS 1.8V ±50ppm -40°C ~ 85°C
XUH525025.000000I Renesas晶振 XU 25 MHz HCMOS 2.5V ±50ppm -40°C ~ 85°C
XUH536025.001250X Renesas晶振 XU 25.00125 MHz HCMOS 3.3V ±25ppm -20°C ~ 70°C
XUH515125.000000I Renesas晶振 XU 125 MHz HCMOS 1.8V ±50ppm -40°C ~ 85°C
