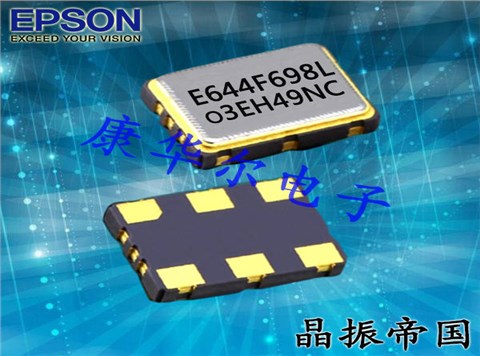

6G无线网络晶振,X1G0050110004,EPSON高频差分晶振SG-8503CA

6G无线网络晶振,X1G0050110004,EPSON高频差分晶振SG-8503CA，尺寸为7.0×5.0×1.5mm，频率为100MHZ，输出逻辑LV-PECL，差分晶振LV-PECL，差分有源晶振，LV-PECL差分振荡器，进口LV-PECL差分振荡器，低电压差分振荡器，低抖动差分晶振，低耗能差分晶振，高频差分晶振，100MHZ差分振荡器，仪器设备差分晶振，6G光模块差分晶振，网络设备专用差分晶振，仪器仪表专用差分晶振，测试设备专用差分振荡器，100MHZ差分晶振。

OscillatorCrystal有源晶振产品比较适合用于无线网络，智能家居，物联网，医疗产品，以及OTN, BTS，测试仪器，光模块，路由器等领域。6G无线网络晶振,X1G0050110004,EPSON高频差分晶振SG-8503CA.

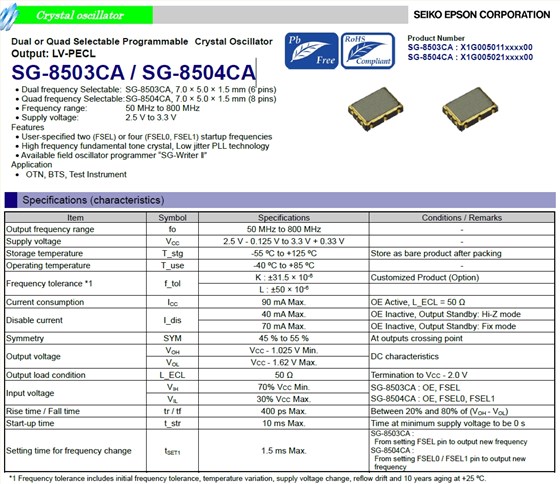

6G无线网络晶振,X1G0050110004,EPSON高频差分晶振SG-8503CA参数表

Item	Symbol	Specifications	Conditions/Remarks
Output frequency range	f0	100MHz	-
Supply voltage	VCC	2.5V-0.125V to 3.3V +0.33V	-
Storage temperature	T_stg	-55°C to +125°C	Store as bare product after packing
Operating temperature	T_use	-40°C to +85°C	-
Frequency tolerance*1	f_tol	±31.5 × 10-6	Customized Product (Option)
Frequency tolerance*1	f_tol	±50 × 10-6
Current consumption	ICC	90mA Max.	OE Active, L_ECL=50Ω
Disable current	I_dis	40mA Max.	OE Inactive, Output Standby: Hi-Z mode
Disable current	I_dis	70mA Max.	OE Inactive, Output Standby: Fix mode
Symmetry	SYM	45% to 55%	At outputs crossing point
Output voltage	VOH	VCC- 1.025 V Min.	DC characteristics
Output voltage	VOL	VCC- 1.62 V Max.	DC characteristics
Output load condition	L_ECL	50Ω	Termination to VCC- 2.0 V
Input voltage	VIH	70% VCCMin.	OE, FSEL
Input voltage	VIL	30% VCCMax.	OE, FSEL
Rise time / Fall time	tr / tf	400ps Max.	Between 20% and 80% of (VOH-VOL)
Start-up time	t_str	10ms Max.	Time at minimum supply voltage to be 0 s
Setting time for frequency change	TSET1	1.5ms Max.	From setting FSEL pin to output new frequency

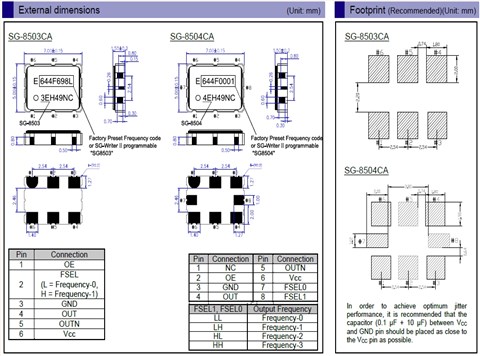

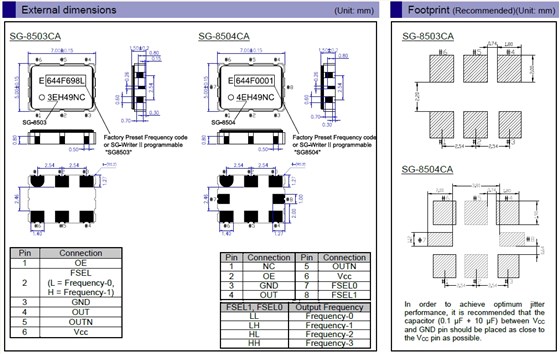

6G无线网络晶振,X1G0050110004,EPSON高频差分晶振SG-8503CA尺寸图

OSC晶振产品特性：

双频可选:SG-8503CA, 7.0×5.0×1.5mm(6引脚)

频率范围:50mhz ~ 800mhz

电源电压:2.5 V至3.3V

用户指定两个(FSEL)或四个(FSEL0, FSEL1)启动频率

高频基频晶体，低抖动锁相环技术

可用的场振荡器编程器“SG-Writer _

更多相关日本爱普生晶振型号

编码	品牌	日产晶振型号	频率	尺寸	输出方式	电源电压	工作温度
X1G0042910087	爱普生晶振	SG7050EAN	50.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042910088	爱普生晶振	SG7050EAN	68.750000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042910091	爱普生晶振	SG7050EAN	50.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042910092	爱普生晶振	SG7050EAN	68.750000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042910102	爱普生晶振	SG7050EAN	135.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042910103	爱普生晶振	SG7050EAN	121.500000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042910104	爱普生晶振	SG7050EAN	66.667000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042910105	爱普生晶振	SG7050EAN	698.812335 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042910106	爱普生晶振	SG7050EAN	153.600000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042910107	爱普生晶振	SG7050EAN	644.531200 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042910108	爱普生晶振	SG7050EAN	155.520000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042910109	爱普生晶振	SG7050EAN	114.285000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042910110	爱普生晶振	SG7050EAN	250.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042910111	爱普生晶振	SG7050EAN	350.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042910112	爱普生晶振	SG7050EAN	80.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042910113	爱普生晶振	SG7050EAN	98.304000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042910114	爱普生晶振	SG7050EAN	156.253800 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042910115	爱普生晶振	SG7050EAN	156.257812 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042910116	爱普生晶振	SG7050EAN	114.625000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042910117	爱普生晶振	SG7050EAN	300.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042910118	爱普生晶振	SG7050EAN	480.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042910119	爱普生晶振	SG7050EAN	212.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042910120	爱普生晶振	SG7050EAN	350.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042910121	爱普生晶振	SG7050EAN	176.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042910122	爱普生晶振	SG7050EAN	500.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042910123	爱普生晶振	SG7050EAN	622.080000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042910124	爱普生晶振	SG7050EAN	156.253906 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042910125	爱普生晶振	SG7050EAN	156.253906 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042910126	爱普生晶振	SG7050EAN	156.255468 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042910127	爱普生晶振	SG7050EAN	320.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042910128	爱普生晶振	SG7050EAN	125.003700 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042910129	爱普生晶振	SG7050EAN	301.386000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042910130	爱普生晶振	SG7050EAN	233.372000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0045110001	爱普生晶振	SG7050EBN	156.250000 MHz	7.00 x 5.00 x 1.70 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C
X1G0045110002	爱普生晶振	SG7050EBN	125.000000 MHz	7.00 x 5.00 x 1.70 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C
X1G0045110003	爱普生晶振	SG7050EBN	100.000000 MHz	7.00 x 5.00 x 1.70 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C
X1G0045110004	爱普生晶振	SG7050EBN	106.250000 MHz	7.00 x 5.00 x 1.70 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C
X1G0045110005	爱普生晶振	SG7050EBN	122.880000 MHz	7.00 x 5.00 x 1.70 mm	LV-PECL	2.375 to 2.625 V	-40 to 85 °C
X1G0045110007	爱普生晶振	SG7050EBN	150.000000 MHz	7.00 x 5.00 x 1.70 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C
X1G0045110008	爱普生晶振	SG7050EBN	155.520000 MHz	7.00 x 5.00 x 1.70 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C
X1G0045110011	爱普生晶振	SG7050EBN	114.285000 MHz	7.00 x 5.00 x 1.70 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C
X1G0045110012	爱普生晶振	SG7050EBN	156.253906 MHz	7.00 x 5.00 x 1.70 mm	LV-PECL	2.375 to 2.625 V	-40 to 85 °C
X1G0045110601	爱普生晶振	SG7050EBN	156.250000 MHz	7.00 x 5.00 x 1.70 mm	LV-PECL	2.375 to 2.625 V	-40 to 85 °C
X1G0045110602	爱普生晶振	SG7050EBN	125.000000 MHz	7.00 x 5.00 x 1.70 mm	LV-PECL	2.375 to 2.625 V	-40 to 85 °C
X1G0045110603	爱普生晶振	SG7050EBN	100.000000 MHz	7.00 x 5.00 x 1.70 mm	LV-PECL	2.375 to 2.625 V	-40 to 85 °C
X1G0050110000	爱普生晶振	SG-8503CA		7.00 x 5.00 x 1.70 mm	LV-PECL	2.375 to 3.630 V	-40 to 85 °C
X1G0050110003	爱普生晶振	SG-8503CA	156.250000 MHz	7.00 x 5.00 x 1.70 mm	LV-PECL	2.375 to 3.630 V	-40 to 85 °C
X1G0050110004	爱普生晶振	SG-8503CA	100.000000 MHz	7.00 x 5.00 x 1.70 mm	LV-PECL	2.375 to 3.630 V	-40 to 85 °C
X1G0050110005	爱普生晶振	SG-8503CA	125.000000 MHz	7.00 x 5.00 x 1.70 mm	LV-PECL	2.375 to 3.630 V	-40 to 85 °C
X1G0050111001	爱普生晶振	SG-8503CA	100.000000 MHz	7.00 x 5.00 x 1.70 mm	LV-PECL	2.375 to 3.630 V	-40 to 85 °C
X1G0050210000	爱普生晶振	SG-8504CA		7.00 x 5.00 x 1.70 mm	LV-PECL	2.375 to 3.630 V	-40 to 85 °C
X1G0050210003	爱普生晶振	SG-8504CA	75.000000 MHz	7.00 x 5.00 x 1.70 mm	LV-PECL	2.375 to 3.630 V	-40 to 85 °C
X1G0050210004	爱普生晶振	SG-8504CA	62.500000 MHz	7.00 x 5.00 x 1.70 mm	LV-PECL	2.375 to 3.630 V	-40 to 85 °C
X1G0050210005	爱普生晶振	SG-8504CA	106.250000 MHz	7.00 x 5.00 x 1.70 mm	LV-PECL	2.375 to 3.630 V	-40 to 85 °C
X1G0050210006	爱普生晶振	SG-8504CA	100.000000 MHz	7.00 x 5.00 x 1.70 mm	LV-PECL	2.375 to 3.630 V	-40 to 85 °C
X1G0050210007	爱普生晶振	SG-8504CA	100.000000 MHz	7.00 x 5.00 x 1.70 mm	LV-PECL	2.375 to 3.630 V	-40 to 85 °C
X1G0050211001	爱普生晶振	SG-8504CA	100.000000 MHz	7.00 x 5.00 x 1.70 mm	LV-PECL	2.375 to 3.630 V	-40 to 85 °C
X1G0050310000	爱普生晶振	SG-8506CA		7.00 x 5.00 x 1.70 mm	LV-PECL	2.375 to 3.630 V	-40 to 85 °C
X1G0050310003	爱普生晶振	SG-8506CA	622.080000 MHz	7.00 x 5.00 x 1.70 mm	LV-PECL	2.375 to 3.630 V	-40 to 85 °C
X1G0050311001	爱普生晶振	SG-8506CA	156.250000 MHz	7.00 x 5.00 x 1.70 mm	LV-PECL	2.375 to 3.630 V	-40 to 85 °C
X1M0001410001	爱普生晶振	EG-4101CA	212.500000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-40 to 85 °C
X1M0001410002	爱普生晶振	EG-4101CA	281.333300 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-40 to 85 °C
X1M0001410003	爱普生晶振	EG-4101CA	106.250000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-40 to 85 °C
X1M0001410004	爱普生晶振	EG-4101CA	698.812300 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-40 to 85 °C
X1M0001410007	爱普生晶振	EG-4101CA	312.500000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-40 to 85 °C
X1M0001410008	爱普生晶振	EG-4101CA	400.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-40 to 85 °C
X1M0001410010	爱普生晶振	EG-4101CA	156.250000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-40 to 85 °C
X1M0001410013	爱普生晶振	EG-4101CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-40 to 85 °C
X1M0001410014	爱普生晶振	EG-4101CA	644.531200 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-40 to 85 °C
X1M0001410017	爱普生晶振	EG-4101CA	156.253906 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-40 to 85 °C
X1M0002010001	爱普生晶振	EG-2102CB	133.330000 MHz	5.00 x 3.20 x 1.40 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
X1M0002010002	爱普生晶振	EG-2102CB	150.000000 MHz	5.00 x 3.20 x 1.40 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
X1M0002010003	爱普生晶振	EG-2102CB	133.000000 MHz	5.00 x 3.20 x 1.40 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
X1M0002010004	爱普生晶振	EG-2102CB	156.250000 MHz	5.00 x 3.20 x 1.40 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
X1M0002010005	爱普生晶振	EG-2102CB	212.500000 MHz	5.00 x 3.20 x 1.40 mm	LV-PECL	2.970 to 3.630 V	-20 to 70 °C
X1M0002010006	爱普生晶振	EG-2102CB	644.531300 MHz	5.00 x 3.20 x 1.40 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
X1M0002010007	爱普生晶振	EG-2102CB	625.000000 MHz	5.00 x 3.20 x 1.40 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C
