SX2KL-33F200E-32.768KHz,2520mm,FCD-Tech数字设备晶振,CMOS振荡器特点:
超小型封装有源晶振
高抗冲击/振动性(半导体工艺)
扩展可用的温度范围,非常快速地启动
定制频率0.5Hz至500MHz
应用:便携式电子产品.
SX2KL-33F200E-32.768KHz,2520mm,FCD-Tech数字设备晶振,CMOS振荡器 参数表
Item |
Speci?cation 32.768 kHz (please consult factory for custom make frequency 0.5 Hz - 500 MHz) |
|||||||
Frequency Range | 32.768 kHz (please consult factory for custom make frequency 0.5 Hz - 500 MHz) | |||||||
Output Logic | CMOS | |||||||
Overall Frequency Stability * | ± 200 ppm typ . ~ ± 500 ppm max | |||||||
Operating Temperature Range | -20 ~ +70°C | |||||||
Supply Voltage Vdd | +3.3V ±5% | |||||||
Supply CurrentIdd | 15 µA max | |||||||
Output Level | VOH ≥ 0.9 VddVOL ≤ 0.1 Vdd | |||||||
Output Load | 15 pF | |||||||
Symmetry | 45 / 55 % | |||||||
Rise Time / Fall Time | 20 ns max | |||||||
Tri-state function |
pin #1 = high or open pin #1 = low |
pin #3 ==>oscillation pin #3 ==>high impedance |
||||||
Start-up Time | 1 ms max. | |||||||
Shock resistance | 20000GS | |||||||
Packing Unit |
||||||||
Soldering Condition |

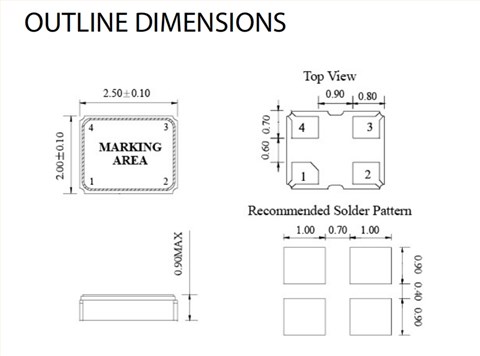

SX2KL-33F200E-32.768KHz,2520mm,FCD-Tech数字设备晶振,CMOS振荡器尺寸图
