2520mm,FCD-Tech电信晶振,SX2C-33K20EH-36MHz,3.3V,CMOS

2520mm,FCD-Tech电信晶振,SX2C-33K20EH-36MHz,3.3V,CMOS,进口FCD-Tech Crystal,OSC振荡器,石英有源晶振,2520mm振荡器,CMOS输出晶振,36MHZ有源振荡器,有源晶体振荡器,尺寸2.5x2.0mm,频率36MHZ,电压3.3V,输出逻辑CMOS,工作温度 -40~+85°C,高冲击晶振,高可靠晶振,高性能晶振,低相位晶振,低电压晶振,便携式设备晶振,电信应用晶振,智能家居晶振,无线模块晶振.

2520mm,FCD-Tech电信晶振,SX2C-33K20EH-36MHz,3.3V,CMOS 参数表

Item			Specification
Frequency Range			36.0 MHz
Output Signal			CMOS
Overall Frequency Stability *			± 20 ppm~± 100 ppm (see options)
Operating Temperature Range			0 ~ +70°C commercial application (see options)
			-40 ~ +85°C industrial application (see options)
Supply Voltage Vdd									+3.0V±5%		+3.3V±5%
Supply Current Idd									5 mA ~ 30 mA		5 mA ~ 30 mA
VOL ≤ 0.1 Vdd
Output Load
Symmetry
Rise / Fall timeFr/Ff
Tri-state function				open					pin #3=oscillation
									pin #3=high impedance
Start-up Time
band )
Packing Unit			3000pcs / reel
Soldering Condition			260°C , 10 sec x2 max

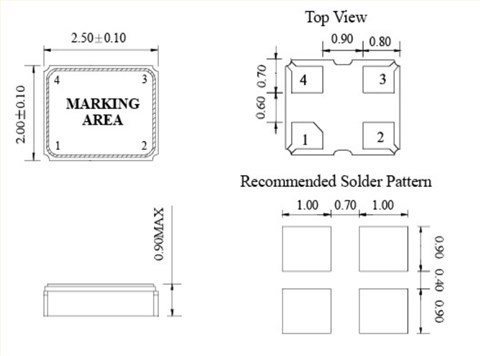

2520mm,FCD-Tech电信晶振,SX2C-33K20EH-36MHz,3.3V,CMOS尺寸图
