SX1C-18F20EH-32MHz,2016mm,FCD-Tech有源振荡器,32MHZ,1.8V

SX1C-18F20EH-32MHz,2016mm,FCD-Tech有源振荡器,32MHZ,1.8V,荷兰进口晶振,有源贴片晶振,石英振荡子,时钟晶体振荡器,2016晶体振荡器,32MHZ有源晶振,四脚有源晶振,尺寸2.0x1.6mm,频率32MHZ,电压1.8V,输出逻辑CMOS,低电压晶振,低损耗晶振,低相位晶振,CMOS输出振荡器,高性能晶振,电信设备晶振,便携式设备晶振,数字电子晶振,测试设备晶振.

SX1C-18F20EH-32MHz,2016mm,FCD-Tech有源振荡器,32MHZ,1.8V 参数表

Item

Specification

Frequency Range

32.0 MHz

Output Logic

CMOS

Overall Frequency Stability *

± 20 ppm~± 100 ppm (see options)

Operating Temperature Range

0 ~ +70°C commercial application (see options)

-40 ~ +85°C industrial application (see options)

Supply Voltage Vdd

+1.8V±5%+2.5V±5%

+2.8V±5%

+3.0V±5%

+3.3V±5%

Supply Current Idd

2.5 mA ~ 20 mA3 mA ~ 20 mA

3 mA ~ 25 mA

3.5 mA ~ 25 mA

3.5 mA ~ 30 mA

VOL ≤ 0.1 Vdd

Output Load

15 pF (see options)

Symmetry

45 / 55 %

Rise Time / Fall TimeFr/Ff

3~5 ns

Tri-state function

pin #1 = high or

open

pin #3=oscillation

pin #1 = low

pin #3=high impedance

Start-up Time

10 ms max.

band )

Packing Unit

3000pcs / reel

Soldering Condition

260°C , 10 sec x2 max

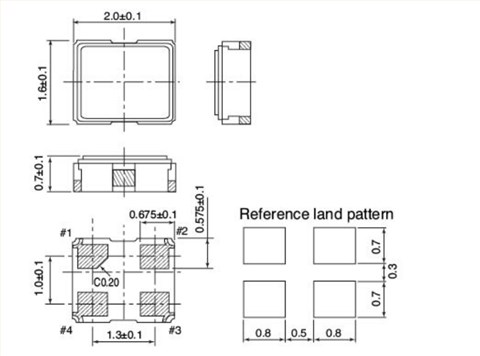

SX1C-18F20EH-32MHz,2016mm,FCD-Tech有源振荡器,32MHZ,1.8V尺寸图
