频率：40MHZ
尺寸：1.2x1.0mm
6G放大器晶振/HSX1210A石英晶体/HELE加高晶振/X12A040000BZ1H-HZ，尺寸1.2x1.0mm，频率40MHZ，加高无源晶振，石英水晶振动子，石英晶体谐振器，石英SMD晶振，石英晶振，贴片石英晶振,SMD晶体谐振器，无源贴片晶振，无源晶振，绿色环保晶振，1210mm无源晶振，台湾贴片晶振，6G放大器晶振，小型设备专用晶振，蓝牙音响专用晶振，通信设备晶振，智能家居晶振，娱乐设备无源晶振，具有良好的可靠性能以及稳定性能。
石英晶体产品可满足不同应用程序的需求，尤其适合用于通信，便携式设备，蓝牙音响，智能家居，小型设备，6G放大器，娱乐设备等领域.6G放大器晶振/HSX1210A石英晶体/HELE加高晶振/X12A040000BZ1H-HZ.
6G放大器晶振/HSX1210A石英晶体/HELE加高晶振/X12A040000BZ1H-HZ，尺寸1.2x1.0mm，频率40MHZ，加高无源晶振，石英水晶振动子，石英晶体谐振器，石英SMD晶振，石英晶振，贴片石英晶振,SMD晶体谐振器，无源贴片晶振，无源晶振，绿色环保晶振，1210mm无源晶振，台湾贴片晶振，6G放大器晶振，小型设备专用晶振，蓝牙音响专用晶振，通信设备晶振，智能家居晶振，娱乐设备无源晶振，具有良好的可靠性能以及稳定性能。
石英晶体产品可满足不同应用程序的需求，尤其适合用于通信，便携式设备，蓝牙音响，智能家居，小型设备，6G放大器，娱乐设备等领域.6G放大器晶振/HSX1210A石英晶体/HELE加高晶振/X12A040000BZ1H-HZ.

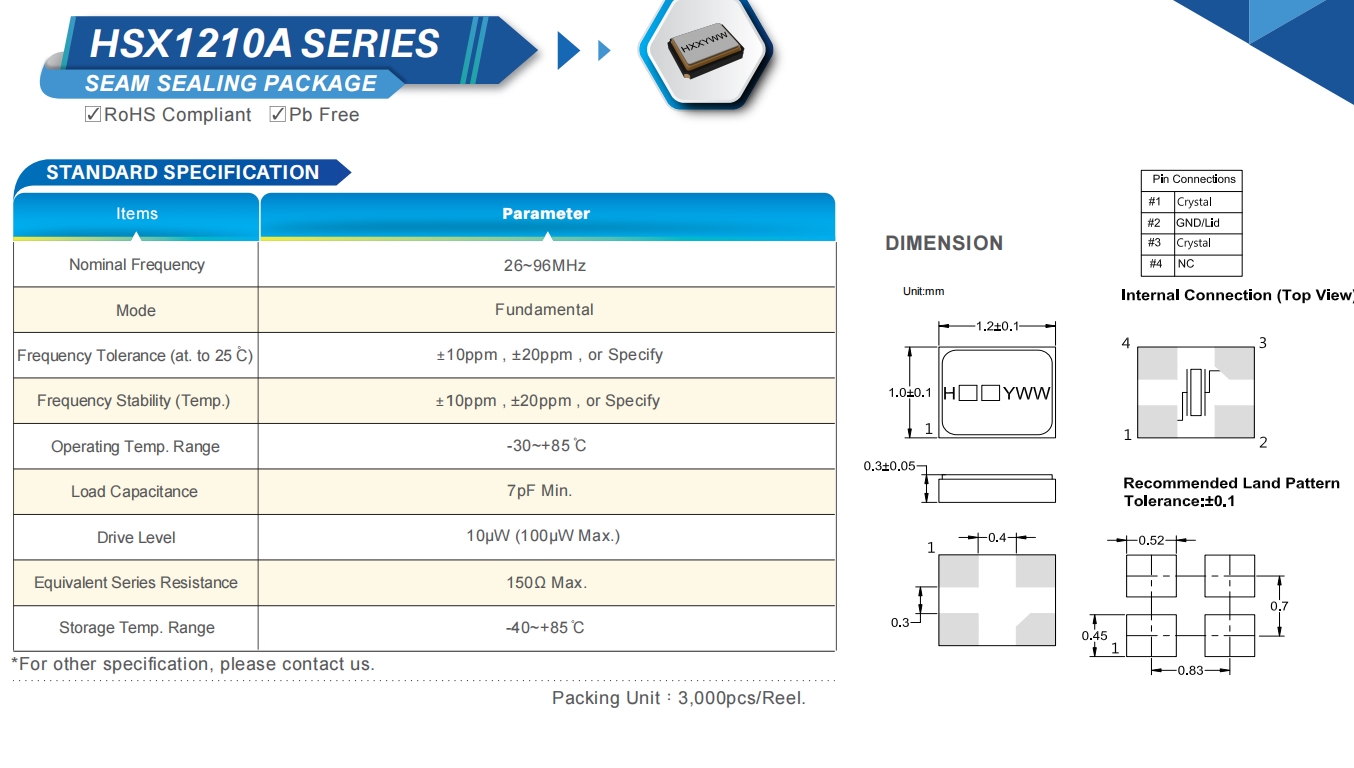

6G放大器晶振/HSX1210A石英晶体/HELE加高晶振/X12A040000BZ1H-HZ 参数表
 Items
|
parameter | |||||
| Nominal Frequency | 40MHz | |||||
| Mode | Fundamental | |||||
| Frequency Tolerance (at. to 25 C) | ± 10ppm , ±20ppm , or Specify | |||||
| Frequency Stability (Temp.) | ±10ppm , ±20ppm , or Specify | |||||
| Operating Temp. Range | -30~+85 C | |||||
| Load Capacitance | 7pF Min. | |||||
| Drive Level | 10μW (100μW Max.) | |||||
| Equivalent Series Resistance | 150Ω Max. | |||||
| Storage Temp. Range |
 -40~+85 C
|
|||||

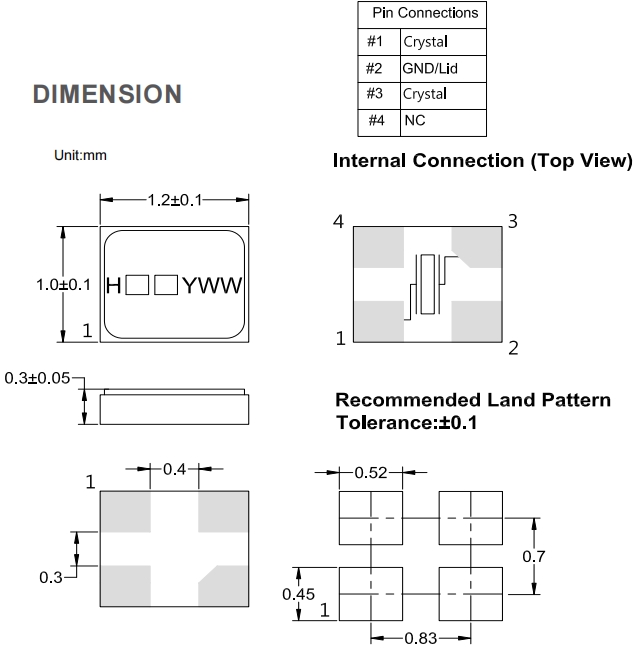

6G放大器晶振/HSX1210A石英晶体/HELE加高晶振/X12A040000BZ1H-HZ 尺寸图
SMD晶振产品特性：
极好的老化
轻薄小，高可靠性能
优异的耐热性
频率范围26MHz-96MHz
符合RoHS标准且无铅
更多相关加高HELE晶振型号
| 编码 | Series | 品牌 | 描述 | 频率 | 频率稳定性 |
| X2B026000M81H-HS | HSX221SA | HELE加高晶振 | HSX221SA/26MHZ/8PF/7PPM/15PPM/-4 | 26.000MHZ | ±15ppm |
| X2B016000BA1H-U | HSX221SA | HELE加高晶振 | HSX221SA/16MHZ/10PF/10PPM/10PPM/ | 16.000MHZ | ±10ppm |
| X2B012000BC1H-U | HSX221SA | HELE加高晶振 | HSX221SA/12MHZ/12PF/10PPM/20PPM/ | 12.000MHZ | ±20ppm |
| X2B040000BC1H-DHZ | HSX221SA | HELE加高晶振 | HSX221SA/40MHZ/12PF/10PPM/10PPM/ | 40.000MHZ | ±10ppm |
| X12A040000BZ1H-HZ | HSX1210A | HELE加高晶振 | HSX1210A/40MHZ/6PF/10PPM/12PPM/- | 40.000MHZ | ±10ppm |
| X12A032000B81H-HZ | HSX1210A | HELE加高晶振 | HSX1210A/32MHZ/8PF/10PPM/10PPM/- | 32.000MHZ | ±10ppm |
| X2B012000DC1H-X | HSX221SA | HELE加高晶振 | SMD Crystal Resonators 12MHz ±20ppm SMD-2520_4P RoHS | 12.000MHZ | ±20ppm |
| X2B016000B91H-HU | HSX221SA | HELE加高晶振 | SMD Crystal Resonators 16MHz ±10ppm SMD-2520_4P RoHS | 16.000MHZ | ±10ppm |
| X2B027000BC1H-HU | HSX221SA | HELE加高晶振 | SMD Crystal Resonators 27MHz ±10ppm SMD-2520_4P RoHS | 27.000MHZ | ±10ppm |
| X2B032000BC1H-HZ | HSX221SA | HELE加高晶振 | SMD Crystal Resonators SMD-2520_4P RoHS | 32.000MHZ | - |
| X2C048000L71HA-CEHZ | HSX211S-AU | HELE加高晶振 | SMD Crystal Resonators 48MHz ±8ppm SMD-2016_4P RoHS | 48.000MHZ | ±8ppm |
| X2B024000BC1HA-V | HSX221SA | HELE加高晶振 | SMD Crystal Resonators SMD_2520-4P RoHS | 24.000MHZ | - |
| X2B026000B91H-HZ | HSX221SA | HELE加高晶振 | SMD Crystal Resonators 26MHz ±10ppm SMD-2520_4P RoHS | 26.000MHZ | ±10ppm |
| X2B026000B71HZ-HPR | HSX221SA | HELE加高晶振 | SMD Crystal Resonators 26MHz ±10ppm SMD-2520_4P RoHS | 26.000MHZ | ±10ppm |
| X2B026000B71HZ | HSX221SA | HELE加高晶振 | SMD Crystal Resonators 26MHz ±7ppm SMD-2520_4P RoHS | 26.000MHZ | ±7ppm |
| X2B040000BF1H-HZ | HSX221SA | HELE加高晶振 | SMD Crystal Resonators 40MHz ±10ppm SMD-2520_4P RoHS | 40.000MHZ | ±10ppm |
| X5H008000FC1H-X | HSX530G | HELE加高晶振 | SMD Crystal Resonators 8MHz ±30ppm SMD-5032_2P RoHS | 8.000MHZ | ±30ppm |
| X5H027000DA1H-W | HSX530G | HELE加高晶振 | SMD Crystal Resonators 27MHz ±20ppm SMD-5032_2P RoHS | 27.000MHZ | ±20ppm |
| X5H01431AFK1H-X | HSX530G | HELE加高晶振 | SMD Crystal Resonators SMD_5032-2P RoHS | 14.31818MHZ | - |
| X5H025000FK1H-X | HSX530G | HELE加高晶振 | SMD Crystal Resonators SMD_5032-2P RoHS | 25.000MHZ | - |
| X5H008000FF1H | HSX530G | HELE加高晶振 | SMD Crystal Resonators SMD-5032-2P RoHS | 8.000MHZ | - |
| X2B024000BCIH-HV | HSX221SA | HELE加高晶振 | SMD Crystal Resonators 24MHz ±10ppm SMD-2520_4P RoHS | 24.000MHZ | ±10ppm |
| X5H012288FI1H | HSX530G | HELE加高晶振 | SMD Crystal Resonators 12.288MHz ±30ppm SMD-5032_2P RoHS | 12.288MHZ | ±30ppm |
| X5H008000IK1H-H | HSX530G | HELE加高晶振 | SMD Crystal Resonators SMD_5032-2P RoHS | 8.000MHZ | - |
| X2C024000BA1H | HSX211S-AU | HELE加高晶振 | SMD Crystal Resonators SMD-2016 RoHS | 24.000MHZ | ±10ppm |
| X2C024000B71H-V | HSX211S-AU | HELE加高晶振 | SMD Crystal Resonators SMD,2.0x1.6mm RoHS | 24.000MHZ | ±10ppm |
| X2B050000BC1H-V | HSX221SA | HELE加高晶振 | SMD Crystal Resonators SMD,2.5x2.0mm RoHS | 50.000MHZ | 10PPM |
| X2C024000FA1H-X | HSX211S-AU | HELE加高晶振 | SMD Crystal Resonators SMD,2.0x1.6mm RoHS | 24.000MHZ | 30PPM |
| X2C016000B81H-HPU | HSX211S-AU | HELE加高晶振 | SMD Crystal Resonators SMD-2016 RoHS | 16.000MHZ | 10PPM |
| X2C024000B91H-HZ | HSX211S-AU | HELE加高晶振 | SMD Crystal Resonators SMD,2.0x1.6mm RoHS | 24.000MHZ | 10PPM |
| X2C037400BG1H-U | HSX211S-AU | HELE加高晶振 | SMD Crystal Resonators SMD-2016 RoHS | 37.400MHZ | 10PPM |
| X2B040000BF1H-HT | HSX221SA | HELE加高晶振 | SMD Crystal Resonators SMD-2520 RoHS | 40.000MHZ | ±15ppm |
| X2B030000BA1H-U | HSX221SA | HELE加高晶振 | SMD Crystal Resonators SMD,2.5x2.0mm RoHS | 30.000MHZ | 10PPM |
| X2B026000B91H-HR | HSX221SA | HELE加高晶振 | SMD Crystal Resonators SMD,2.5x2.0mm RoHS | 26.000MHZ | 10PPM |
| X2B038400BA1H-U | HSX221SA | HELE加高晶振 | SMD Crystal Resonators SMD-2520 RoHS | 38.400MHZ | 10PPM |
| X2B040000B91H-U | HSX221SA | HELE加高晶振 | SMD Crystal Resonators SMD,2.5x2.0mm RoHS | 40.000MHZ | 10PPM |
| X2B032000C81H-HU | HSX221SA | HELE加高晶振 | SMD Crystal Resonators SMD,2.5x2.0mm RoHS | 32.000MHZ | ±15ppm |
| X2B012000B91H-U | HSX221SA | HELE加高晶振 | SMD Crystal Resonators SMD,2.5x2.0mm RoHS | 12.000MHZ | 10PPM |
| X2C027120FA1H-HV | HSX211S-AU | HELE加高晶振 | SMD Crystal Resonators SMD,2.0x1.6mm RoHS | 27.120MHZ | ±30ppm |
| X2B030000BA1H-HW | HSX221SA | HELE加高晶振 | SMD Crystal Resonators SMD,2.5x2.0mm RoHS | 30.000MHZ | 10PPM |
| X2B026000B91H-HV | HSX221SA | HELE加高晶振 | SMD Crystal Resonators SMD-2520 RoHS | 26.000MHZ | 10PPM |
| X2C040000B91HA-Z | HSX211S-AU | HELE加高晶振 | SMD Crystal Resonators SMD-2016 RoHS | 40.000MHZ | 10PPM |
| X2B026000BC1H-Z | HSX221SA | HELE加高晶振 | SMD Crystal Resonators SMD,2.5x2.0mm RoHS | 26.000MHZ | 10PPM |
| X2B016000BC1H-HV | HSX221SA | HELE加高晶振 | SMD Crystal Resonators SMD,2.5x2.0mm RoHS | 16.000MHZ | 10PPM |
| X2C016000B91H-R | HSX211S-AU | HELE加高晶振 | SMD Crystal Resonators SMD,2.0x1.6mm RoHS | 16.000MHZ | 10PPM |
| X2B019200BZ1H-CHZ | HSX221SA | HELE加高晶振 | SMD Crystal Resonators SMD,2.5x2.0mm RoHS | 19.200MHZ | 10PPM |
| X2C032000BA1HA-U | HSX211S-AU | HELE加高晶振 | SMD Crystal Resonators SMD,2.0x1.6mm RoHS | 32.000MHZ | 10PPM |
| X2B026000B91H-U | HSX221SA | HELE加高晶振 | SMD Crystal Resonators SMD,2.5x2.0mm RoHS | 26.000MHZ | 10PPM |
| X2B026000L91H-S | HSX221SA | HELE加高晶振 | SMD Crystal Resonators SMD,2.5x2.0mm RoHS | 26.000MHZ | ±8ppm |
| X2C048000L71H-CEHZ | HSX211S-AU | HELE加高晶振 | SMD Crystal Resonators SMD,2.0x1.6mm RoHS | 48.000MHZ | ±8ppm |
| X2B030000FA1H-X | HSX221SA | HELE加高晶振 | SMD Crystal Resonators SMD-2520 RoHS | 30.000MHZ | ±30ppm |
| X2C032000BC1H-R | HSX211S-AU | HELE加高晶振 | SMD Crystal Resonators SMD,2.0x1.6mm RoHS | 32.000MHZ | 10PPM |
| X2B024000FK1H-V | HSX221SA | HELE加高晶振 | SMD Crystal Resonators SMD,2.5x2.0mm RoHS | 24.000MHZ | ±30ppm |
| X2B026000B81H-CHZ | HSX221SA | HELE加高晶振 | SMD Crystal Resonators SMD,2.5x2.0mm RoHS | 26.000MHZ | 10PPM |
| X2C038400BA1H-HZ | HSX211S-AU | HELE加高晶振 | SMD Crystal Resonators SMD-2016 RoHS | 38.400MHZ | 10PPM |
| X2B02863ADC1H-W | HSX221SA | HELE加高晶振 | SMD Crystal Resonators SMD,2.5x2.0mm RoHS | 28.63636MHZ | ±20ppm |
| X2B032000D81H-U | HSX221SA | HELE加高晶振 | SMD Crystal Resonators SMD,2.5x2.0mm RoHS | 32.000MHZ | ±20ppm |
| X2B025000BI1H-U | HSX221SA | HELE加高晶振 | SMD Crystal Resonators SMD,2.5x2.0mm RoHS | 25.000MHZ | 10PPM |
| X2C032000B81H-HS | HSX211S-AU | HELE加高晶振 | SMD Crystal Resonators SMD,2.0x1.6mm RoHS | 32.000MHZ | ±10ppm |
| X1H008000DC1H-U | HSX531S | HELE加高晶振 | SMD Crystal Resonators 8MHz ±20ppm SMD_5032-4P RoHS | 8.000MHZ | ±20ppm |
| X2C026000B71H-HZ | HSX211S-AU | HELE加高晶振 | SMD Crystal Resonators 26MHz ±10ppm SMD-2016_4P RoHS | 26.000MHZ | ±10ppm |
| X2C048000BA1H-HZ | HSX211S-AU | HELE加高晶振 | SMD Crystal Resonators SMD,2.0x1.6mm RoHS | 48.000MHZ | ±10ppm |
| X2CO48000B71H-CEHZ | HSX211S-AU | HELE加高晶振 | 48.000MHZ | ||
| X2CO48000R71HA-CEHZ | HSX211S-AU | HELE加高晶振 | 48.000MHZ | ||
| X2CO40000BD1H-HZ | HSX211S-AU | HELE加高晶振 | 40.000MHZ | ||
| X2BO32000BC1H-HZ | HSX221SA | HELE加高晶振 | 32.000MHZ | ||
| X2CO27120FC1H-HX | HSX211S-AU | HELE加高晶振 | 27.120MHZ | ||
| X2BO27000FC1H-HX | HSX221SA | HELE加高晶振 | 27.000MHZ | ||
| XSHO25000FC1H-H | HSX530G | HELE加高晶振 | 25.000MHZ | ||
| X2BO19200FC1H-HX | HSX221SA | HELE加高晶振 | 19.200MHZ | ||
| XSHO12000FG1H-X | HSX530G | HELE加高晶振 | 12.000MHZ | ||
| X5H024576FI1HA-X | HSX530G | 加高石英晶振 | 24.576MHZ | ||
| X1H01431AFK1H-HX | HSX531S | HELE加高晶振 | 14.31818MHZ | 30PPM | |
| X1H024576DK1H-X | HSX531S | HELE加高晶振 | 24.576MHZ | ||
| X1H012000BC1H-X | HSX531S | HELE加高晶振 | 12.000MHZ | ||
| X5H048000FQ1H-X | HSX530G | HELE加高晶振 | 48.000MHZ | ||
| X1H022118DW1H | HSX531S | HELE加高晶振 | 22.1184MHZ |
