频率：26.0~60.0MHz
尺寸：1.2x1.0mm
KX-3T,1210mm,Geyer格耶晶振,SMD石英晶体,智能手机晶振，丹麦进口晶振，Geyer晶振，格耶晶振，型号：KX-3T，频率范围为：26.0~60.0MHz，小体积晶振尺寸：1.2x1.0mm封装，SMD晶振，四脚贴片晶振，石英晶振，无源晶振，石英晶体谐振器，无铅环保晶振。工作温度范围：-40℃至+85℃。具有超小型，轻薄型，高精度，高性能，高品质，耐热及耐环境特点。应用于：移动通讯设备，智能穿戴设备晶振，小型便捷式设备，手机晶振，平板电脑，无线网络，蓝牙模块，汽车电子设备，医疗设备，安防设备，数码电子等应用。

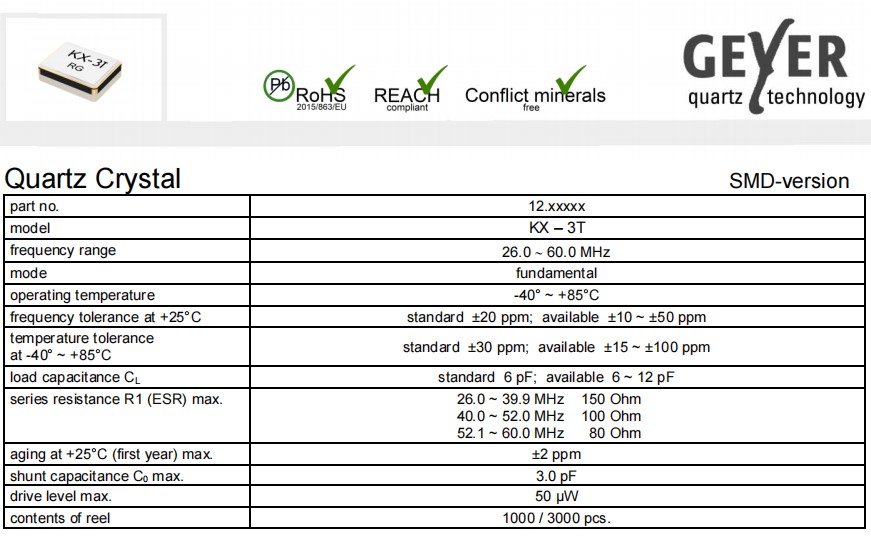

KX-3T,1210mm,Geyer格耶晶振,SMD石英晶体,智能手机晶振,参数表
part no.
12.xxxxx
model
KX - 3T
frequency range
26.0 ~ 60.0 MHz
mode
fundamental
operating temperature
-40° ~ +85°C
frequency tolerance at +25°C
standard ±20 ppm; available ±10 ~ ±50 ppm
temperature tolerance
at -40° ~ +85°C
standard ±30 ppm; available ±15 ~ ±100 ppm
load capacitance CL
standard 6 pF; available 6 ~ 12 pF
series resistance R1 (ESR) max.
26.0 ~ 39.9 MHz
40.0 ~ 52.0 MHz
52.1 ~ 60.0 MHz
150 Ohm
100 Ohm
80 Ohm
aging at +25°C (first year) max.
±2 ppm
shunt capacitance C0 max.
3.0 pF
drive level max.
50 µW
contents of reel
1000 / 3000 pcs.

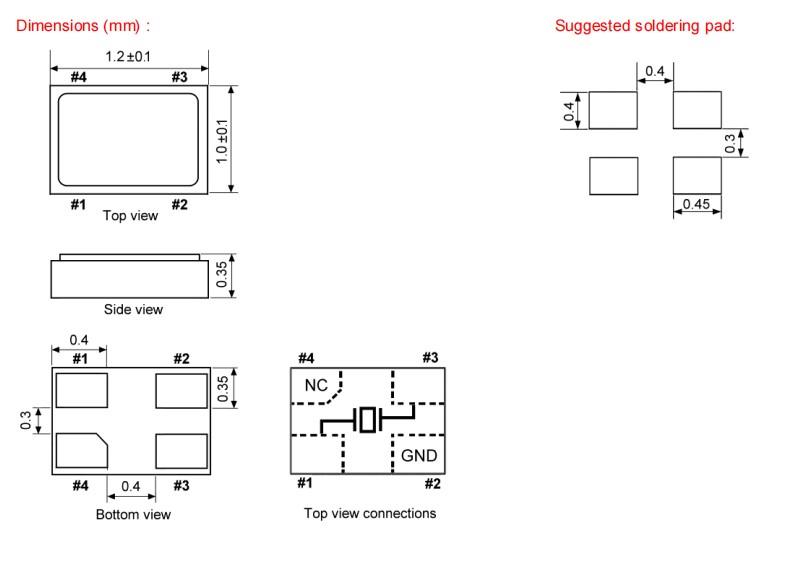

KX-3T,1210mm,Geyer格耶晶振,SMD石英晶体,智能手机晶振,尺寸图
KX-3T,1210mm,Geyer格耶晶振,SMD石英晶体,智能手机晶振

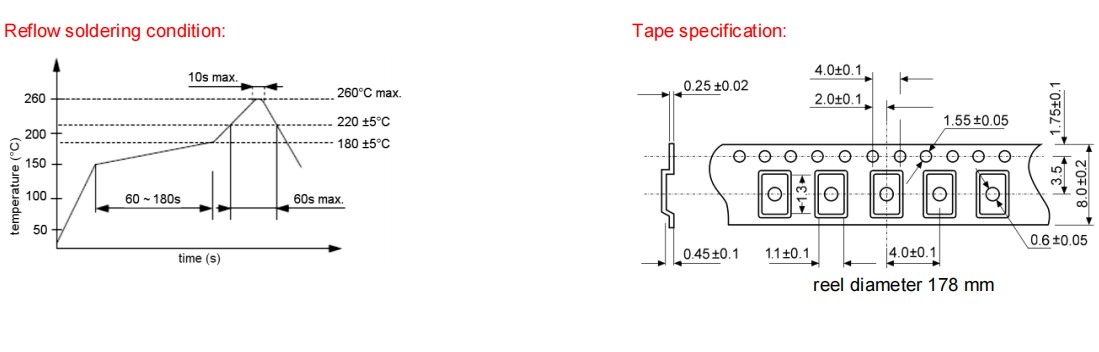

1210mm体积的晶振,可以说是目前小型数码产品的福音,目前超小型的智能手机里面所应用的就是小型的石英晶振,该产品最适用于无线通讯系统,无线局域网,已实现低相位噪声,低电压,低消费电流和高稳定度,超小型,质量轻等产品特点,产品本身编带包装方式,可对应自动高速贴片机应用,以及高温回流焊接（产品无铅对应）,为无铅产品.
| 编码 | 晶振厂家 | 描述 | 型号 | 频率 | 频率温度性 |
| 12.85536 | Geyer格耶 | CYSTAL 40.0MHZ 8PF SMD | KX-5T | 40 MHz | ±20ppm |
| 12.84816 | Geyer格耶 | Crystal 25.0MHz 8pF SMD | KX-4 | 25 MHz | ±50ppm |
| 12.84805 | Geyer格耶 | Crystal 27.120MHz 8pF SMD | KX-4 | 27.12 MHz | ±30ppm |
| 12.86509 | Geyer格耶 | Cystal 48.0Mhz 10pF SMD | KX-6 | 48 MHz | ±50ppm |
| 12.84813 | Geyer格耶 | Crystal 27.120MHz 8pF SMD | KX-4 | 27.12 MHz | ±15ppm |
| 12.85515 | Geyer格耶 | CYSTAL 27.0MHZ 8PF SMD | KX-5 | 27 MHz | ±50ppm |
| 12.86544 | Geyer格耶 | Crystal 16.0Mhz 10pF SMD | KX-7E | 24 MHz | ±120ppm |
| 12.85547 | Geyer格耶 | CYSTAL 26.0MHZ 8PF SMD | KX-5T | 26 MHz | ±20ppm |
| 12.85562 | Geyer格耶 | CYSTAL 50.0MHZ 8PF SMD | KX-5T | 50 MHz | ±50ppm |
| 12.86531 | Geyer格耶 | Cystal 16.0Mhz 10pF SMD | KX-6T | 16 MHz | ±100ppm |
| 12.86512 | Geyer格耶 | Cystal 20.0Mhz 10pF SMD | KX-6 | 20 MHz | ±50ppm |
| 12.8655 | Geyer格耶 | Crystal 16.0Mhz 10pF SMD | KX-6E | 16 MHz | ±150ppm |
| 12.86526 | Geyer格耶 | Cystal 26.0Mhz 10pF SMD | KX-6T | 26 MHz | ±20ppm |
| 12.85521 | Geyer格耶 | CYSTAL 26.0MHZ 10PF SMD | KX-5T | 26 MHz | ±20ppm |
| 12.86517 | Geyer格耶 | Cystal 24.0Mhz 10pF SMD | KX-6 | 24 MHz | ±50ppm |
| 12.84812 | Geyer格耶 | Crystal 25.0MHz 8pF SMD | KX-4 | 25 MHz | ±50ppm |
| 12.85519 | Geyer格耶 | CYSTAL 20.0MHZ 8PF SMD | KX-5T | 20 MHz | ±50ppm |
| 12.85539 | Geyer格耶 | CYSTAL 40.0MHZ 8PF SMD | KX-5T | 48 MHz | ±20ppm |
| 12.85517 | Geyer格耶 | CYSTAL 54.0MHZ 8PF SMD | KX-5T | 54 MHz | ±100ppm |
| 12.85569 | Geyer格耶 | CYSTAL 27.120MHZ 8PF SMD | KX-5T | 27.12 MHz | ±15ppm |
| 12.85538 | Geyer格耶 | CYSTAL 24.5760MHZ 8PF SMD | KX-5T | 24.576 MHz | ±100ppm |
| 12.86533 | Geyer格耶 | Cystal 26.0Mhz 10pF SMD | KX-6T | 26 MHz | ±100ppm |
| 12.8652 | Geyer格耶 | Cystal 27.0Mhz 10pF SMD | KX-6 | 27 MHz | ±50ppm |
| 12.86574 | Geyer格耶 | Crystal 27.0Mhz 8pF SMD | KX-6F | 27 MHz | ±150ppm |
| 12.85541 | Geyer格耶 | CYSTAL 30.0MHZ 8PF SMD | KX-5 | 30 MHz | ±30ppm |
| 12.84818 | 石英晶振 | Crystal 24.0MHz 8pF SMD | KX-4 | 24 MHz | ±50ppm |
| 12.86527 | Geyer格耶 | Cystal 20.0Mhz 10pF SMD | KX-6T | 20 MHz | ±15ppm |
| 12.85534 | Geyer格耶 | CYSTAL 27.0MHZ 8PF SMD | KX-5T | 27 MHz | ±50ppm |
| 12.86505 | Geyer格耶 | Cystal 26.0Mhz 10pF SMD | KX-6 | 26 MHz | ±50ppm |
| 12.84803 | Geyer格耶 | Crystal 26.0MHz 8pF SMD | KX-4 | 26 MHz | ±20ppm |
| 12.85518 | Geyer格耶 | CYSTAL 20.0MHZ 8PF SMD | KX-5E | 20 MHz | ±50ppm |
| 12.86556 | Geyer格耶 | Crystal 40.0Mhz 8pF SMD | KX-6T | 40 MHz | ±20ppm |
| 12.86511 | Geyer格耶 | Crystal 18.4320Mhz 10pF SMD | KX-6 | 18.432 MHz | ±50ppm |
| 12.86536 | Geyer格耶 | Crystal 14.318180Mhz 10pF SMD | KX-6 | 14.31818 MHz | ±50ppm |
| 12.8481 | Geyer格耶 | Crystal 48.0MHz 8pF SMD | KX-4 | 48 MHz | ±50ppm |
| 12.84814 | Geyer格耶 | Crystal 32.0MHz 8pF SMD | KX-4 | 32 MHz | ±15ppm |
| 12.8556 | Geyer格耶 | CYSTAL 16.0MHZ 8PF SMD | KX-5T | 16 MHz | ±30ppm |
| 12.86561 | Geyer格耶 | Crystal 40.0Mhz 10pF SMD | KX-6T | 40 MHz | ±20ppm |
| 12.86564 | Geyer格耶 | Crystal 14.318180Mhz 10pF SMD | KX-6T | 14.31818 MHz | ±100ppm |
| 12.86592 | Geyer格耶 | Crystal 25.0Mhz SMD KX-6T 12pF, | KX-6T | 25 MHz | ±20ppm |
| 12.87159 | Geyer格耶 | CRYSTAL 32.7680kHz 12.5pF SMD | KX-327NHT | 32.768 kHz | -0.035ppm |
| 12.87163 | Geyer格耶 | CRYSTAL 32.768KHZ 7PF SMD | KX-327RT | 32.768 kHz | -0.036ppm |
| 12.87151 | Geyer格耶 | CRYSTAL 32.7680kHz 9pF SMD | KX-327NHT | 32.768 kHz | -0.035ppm |
| 12.8717 | Geyer格耶 | CRYSTAL 32.7680KHZ 12.5PF SMD | KX-327FT | 32.768 kHz | - |
| 12.87148 | Geyer格耶 | CRYSTAL 32.7680KHZ 7PF SMD | KX-327NHT | 32.768 kHz | -0.035ppm |
| 12.8716 | Geyer格耶 | CYSTAL 32.7680KHZ 12.5PF SMD | KX-327RT | 32.768 kHz | ±20ppm |
| 12.87143 | Geyer格耶 | CRYSTAL 32.768KHz 9pF SMD | KX-327NHT | 32.768 kHz | -0.035ppm |
| 12.84801 | Geyer格耶 | Crystal 26.0MHz 8pF SMD | KX-4 | 26 MHz | ±50ppm |
| 12.8718 | Geyer格耶 | Crystal 32.7680kHz 9pF SMD | KX-327NHF | 32.768 kHz | -0.03ppm |
| 12.87147 | Geyer格耶 | CRYSTAL 32.768KHz 7pF SMD | KX-327NHT | 32.768 kHz | - |
| 12.87081 | Geyer格耶 | CRYSTAL 32.768KHZ 6PF SMD | KX-327NHT | 32.768 kHz | -0.035ppm |
| 12.87149 | Geyer格耶 | CRYSTAL 32.7680KHZ 9PF SMD | KX-327NHT | 32.768 kHz | -0.035ppm |
| 12.87156 | Geyer格耶 | CRYSTAL 32.768KHz 12.5pF SMD | KX-327NHT | 32.768 kHz | -0.035ppm |
| 12.87154 | Geyer格耶 | CRYSTAL 32.768KHz 12.5pF SMD | KX-327NHT | 32.768 kHz | -0.035ppm |
| 12.87174 | Geyer格耶 | CRYSTAL 32.768KHz 7pF SMD | KX-327FT | 32.768 kHz | -0.036ppm |
| 12.8715 | Geyer格耶 | CRYSTAL 32.7680KHZ 12.5PF SMD | KX-327NHT | 32.768 kHz | -0.035ppm |
| 12.87181 | Geyer格耶 | CRYSTAL 32.7680KHZ 12.5PF SMD | KX-327NHF | 32.768 kHz | -0.03ppm |
| 12.85559 | Geyer格耶 | CYSTAL 40.0MHZ 8PF SMD | KX-5 | 40 MHz | ±50ppm |
