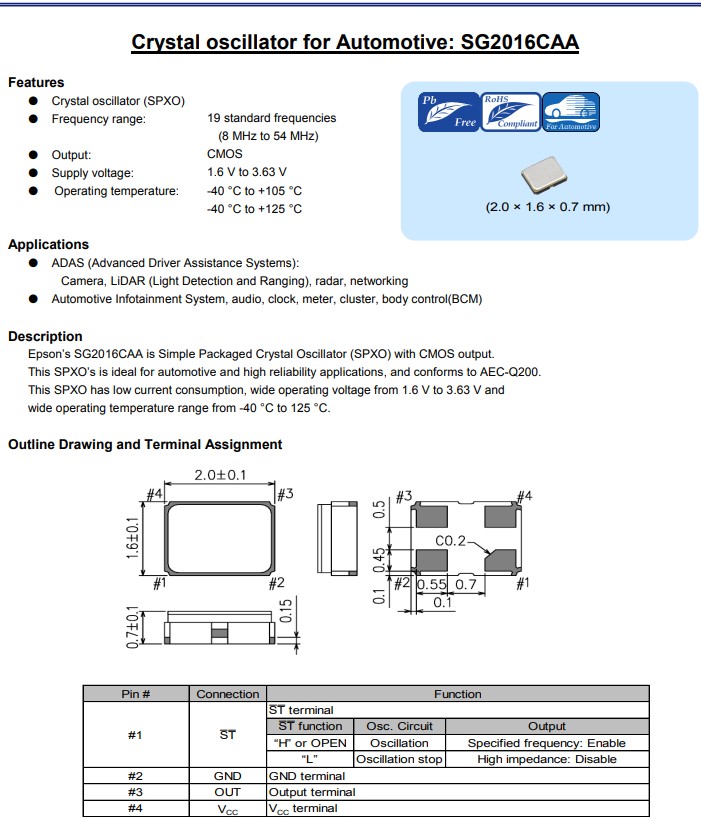

日本爱普生晶振推出汽车电子专用晶振SG2016CAA,支持CMOS输出晶体振荡器,小体积尺寸2.0x1.6mm有源晶振,四脚贴片晶振,电源电压1.6V至3.63V,频率范围:8MHz至54MHz,工作温度范围可达到-40℃至125℃,具有超小型,轻薄型,耐高温,耐热、耐振、耐冲击等优良的耐环境特性,满足无铅焊接的高温回流温度曲线要求,符合AEC-Q200标准。SG2016CAA耐高温晶振特别适用于汽车电子,ADAS(高级驾驶辅助系统): 摄像头,激光雷达(光探测和测距)、雷达,网络,汽车信息娱乐系统,音频,时钟,仪表,组合仪表,车身控制(BCM)等。
SG2016CAA耐高温晶振X1G005341002900特别适用于汽车电子应用
产品编码 | 型号 | 频率 | 尺寸 | 输出波 | 电源电压 | 工作温度 |
X1G005341000200 | SG2016CAA | 27.000000MHz | 2.00x1.60x0.70mm | CMOS | 1.600 to 3.630V | -40 to 105°C |
X1G005341000400 | SG2016CAA | 40.000000MHz | 2.00x1.60x0.70mm | CMOS | 1.600 to 3.630V | -40 to 105°C |
X1G005341000900 | SG2016CAA | 25.000000MHz | 2.00x1.60x0.70mm | CMOS | 1.600 to 3.630V | -40 to 125°C |
X1G005341001100 | SG2016CAA | 24.000000MHz | 2.00x1.60x0.70mm | CMOS | 1.600 to 3.630V | -40 to 105°C |
X1G005341001300 | SG2016CAA | 27.000000MHz | 2.00x1.60x0.70mm | CMOS | 1.600 to 3.630V | -40 to 125°C |
X1G005341001500 | SG2016CAA | 48.000000MHz | 2.00x1.60x0.70mm | CMOS | 1.600 to 3.630V | -40 to 105°C |
X1G005341001700 | SG2016CAA | 12.288000MHz | 2.00x1.60x0.70mm | CMOS | 1.600 to 3.630V | -40 to 105°C |
X1G005341001900 | SG2016CAA | 48.000000MHz | 2.00x1.60x0.70mm | CMOS | 1.600 to 3.630V | -40 to 125°C |
X1G005341002400 | SG2016CAA | 20.000000MHz | 2.00x1.60x0.70mm | CMOS | 1.600 to 3.630V | -40 to 105°C |
X1G005341002700 | SG2016CAA | 24.576000MHz | 2.00x1.60x0.70mm | CMOS | 1.600 to 3.630V | -40 to 105°C |
X1G005341002900 | SG2016CAA | 24.000000MHz | 2.00x1.60x0.70mm | CMOS | 1.600 to 3.630V | -40 to 125°C |
X1G005341003400 | SG2016CAA | 50.000000MHz | 2.00x1.60x0.70mm | CMOS | 1.600 to 3.630V | -40 to 105°C |
X1G005341003500 | SG2016CAA | 25.000000MHz | 2.00x1.60x0.70mm | CMOS | 1.600 to 3.630V | -40 to 105°C |
X1G005341003700 | SG2016CAA | 54.000000MHz | 2.00x1.60x0.70mm | CMOS | 1.600 to 3.630V | -40 to 105°C |
X1G005341003800 | SG2016CAA | 54.000000MHz | 2.00x1.60x0.70mm | CMOS | 1.600 to 3.630V | -40 to 125°C |
X1G005341004100 | SG2016CAA | 8.000000MHz | 2.00x1.60x0.70mm | CMOS | 1.600 to 3.630V | -40 to 125°C |
X1G005341004400 | SG2016CAA | 12.000000MHz | 2.00x1.60x0.70mm | CMOS | 1.600 to 3.630V | -40 to 105°C |
X1G005341004500 | SG2016CAA | 24.000000MHz | 2.00x1.60x0.70mm | CMOS | 1.600 to 3.630V | -40 to 105°C |
X1G005341004600 | SG2016CAA | 33.333300MHz | 2.00x1.60x0.70mm | CMOS | 1.600 to 3.630V | -40 to 105°C |
X1G005341005000 | SG2016CAA | 50.000000MHz | 2.00x1.60x0.70mm | CMOS | 1.600 to 3.630V | -40 to 125°C |
X1G005341005100 | SG2016CAA | 14.745600MHz | 2.00x1.60x0.70mm | CMOS | 1.600 to 3.630V | -40 to 105°C |
X1G005341005300 | SG2016CAA | 33.000000MHz | 2.00x1.60x0.70mm | CMOS | 1.600 to 3.630V | -40 to 105°C |
X1G005341005400 | SG2016CAA | 16.666600MHz | 2.00x1.60x0.70mm | CMOS | 1.600 to 3.630V | -40 to 105°C |
X1G005341005600 | SG2016CAA | 8.000000MHz | 2.00x1.60x0.70mm | CMOS | 1.600 to 3.630V | -40 to 105°C |
X1G005341005700 | SG2016CAA | 10.000000MHz | 2.00x1.60x0.70mm | CMOS | 1.600 to 3.630V | -40 to 125°C |
X1G005341005800 | SG2016CAA | 12.000000MHz | 2.00x1.60x0.70mm | CMOS | 1.600 to 3.630V | -40 to 125°C |
X1G005341005900 | SG2016CAA | 16.666600MHz | 2.00x1.60x0.70mm | CMOS | 1.600 to 3.630V | -40 to 105°C |
X1G005341006000 | SG2016CAA | 22.579200MHz | 2.00x1.60x0.70mm | CMOS | 1.600 to 3.630V | -40 to 105°C |
X1G005341006100 | SG2016CAA | 11.289600MHz | 2.00x1.60x0.70mm | CMOS | 1.600 to 3.630V | -40 to 105°C |
X1G005341006200 | SG2016CAA | 20.000000MHz | 2.00x1.60x0.70mm | CMOS | 1.600 to 3.630V | -40 to 125°C |
SG2016CAA耐高温晶振X1G005341002900特别适用于汽车电子应用
近几年互联网高速发展,随着5G时代的到来,智能汽车的发展也越发的迅速。汽车电子对晶振的要求比消费类的科技数码产品高的多,特别是耐高温这一块,汽车电子中的晶振最好能在高温和低温状态下正常工作。
生活中常见的高档游戏机、智能水表、蓝牙耳机、电风扇等电子设备都需要用到各种不同类型的晶振,对比汽车的应用场景来看,汽车电子产品对晶振的需求就非常明显了。汽车的应用场景包括导航、远程呼叫、紧急救援、防盗跟踪、道路救援、电话、资讯娱乐、下载应用,自动驾驶等等,为了实现人与汽车系统自由的交互,并提供实时的信息互动、支付、交通、天气等功能,汽车对汽车电子晶振的依赖只会越来越强。
