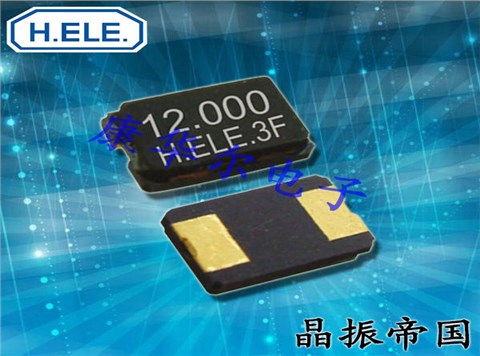

6G无线通信晶振,加高陶瓷晶振,XSHO25000FC1H-H,HSX530G无源晶体

6G无线通信晶振,加高陶瓷晶振,XSHO25000FC1H-H,HSX530G无源晶体，尺寸5.0x3.2mm，频率25MHZ，HELE无源晶振，台湾贴片晶振，5032mm贴片晶体，陶瓷谐振器，水晶振动子，两脚贴片晶振，SMD无源晶振，绿色环保晶振，低功耗无源晶振，低损耗贴片晶振，高精度贴片晶振，高性能无源晶振，高品质贴片晶振，无线通信专用贴片晶振，智能手机专用晶振，可穿戴设备专用晶振，物联网专用晶振，数码相机专用晶振，视听设备晶振，轻薄型晶振，产品具有高精度高品质的特点。

SMD晶振产品比较常用于无线通信应用，智能手机，可穿戴设备，物联网，数码相机，视听设备等，还可以广泛用于数字视频，测试设备等领域.6G无线通信晶振,加高陶瓷晶振,XSHO25000FC1H-H,HSX530G无源晶体.

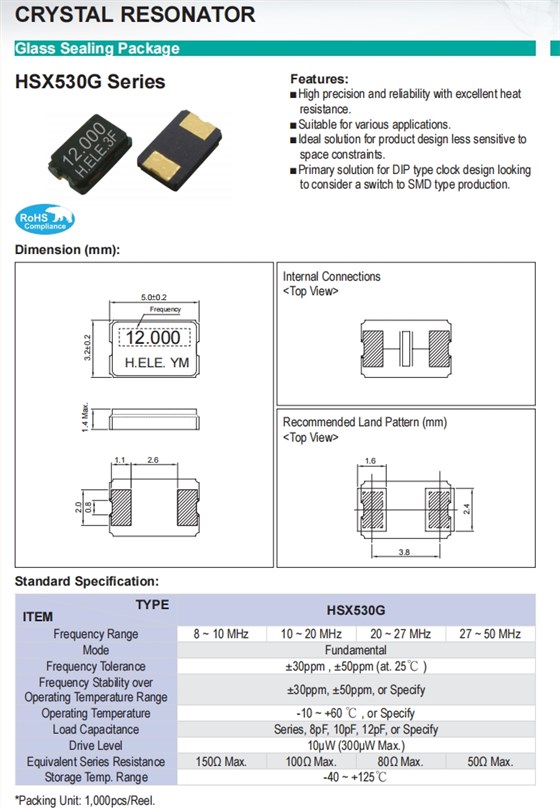

6G无线通信晶振,加高陶瓷晶振,XSHO25000FC1H-H,HSX530G无源晶体参数表

TYPE
ITEM

HSX530G

Frequency Range

8 ~ 10 MHz

10 ~ 20 MHz

20 ~ 27 MHz

27 ~ 50 MHz

Mode

Fundamental

Frequency Tolerance

±30ppm , ±50ppm (at. 25℃)

Frequency Stability over
Operating Temperature Range

±30ppm, ±50ppm, or Specify

Operating Temperature

-10 ~ +60℃, or Specify

Load Capacitance

Series, 8pF, 10pF, 12pF, or Specify

Drive Level

10μW (300μW Max.)

Equivalent Series Resistance

150Ω Max.

100Ω Max.

80Ω Max.

50Ω Max.

Storage Temp. Range

-40 ~ +125℃

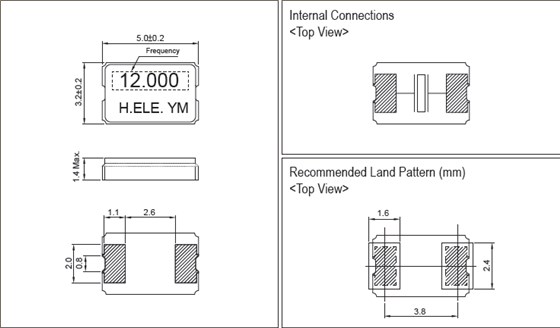

6G无线通信晶振,加高陶瓷晶振,XSHO25000FC1H-H,HSX530G无源晶体 尺寸图

陶瓷晶体产品特性：

非常低的老化

优异的耐热性和抗冲击性

频率范围8MHz-50MHz（基本模式）

更多相关HELE加高晶振型号

编码	Series	晶振厂家	描述	频率	频率稳定性
X2C025000DZ1H-U	HSX211S	HELE加高晶振	HSX211S/25MHZ/6PF/20PPM/20PPM@-3	25.000MHZ	±20ppm
X2C032000BA1H-HZ	HSX211S	HELE加高晶振	HSX211S/32MHZ/10PF/10PPM/15PPM@-	32.000MHZ	±15ppm
X2C024000DZ1H-HU	HSX211S	HELE加高晶振	HSX211S/24MHZ/6PF/20PPM/20PPM@-3	24.000MHZ	±20ppm
X2C016000B81H-R	HSX211S	HELE加高晶振	HSX211S/16MHZ/8PF/10PPM/10PPM@-2	16.000MHZ	±10ppm
X2C026000BC1H-Z	HSX211S	HELE加高晶振	HSX211S/26MHZ/12PF/10PPM/10PPM@-	26.000MHZ	±10ppm
X2C048000L71HH-CEHZ	HSX211S	HELE加高晶振	HSX211S/48MHZ/11.1PF/8PPM/14PPM/	48.000MHZ	±14ppm
X12A040000BZ1H-HZ	HSX1210A	HELE加高晶振	HSX1210A/40MHZ/6PF/10PPM/12PPM/-	40.000MHZ	±10ppm
X12A032000B81H-HZ	HSX1210A	HELE加高晶振	HSX1210A/32MHZ/8PF/10PPM/10PPM/-	32.000MHZ	±10ppm
X2C048000L71HA-CEHZ	HSX211S-AU	HELE加高晶振	SMD Crystal Resonators 48MHz ±8ppm SMD-2016_4P RoHS	48.000MHZ	±8ppm
X2C026000B91H-V	HSX211S	HELE加高晶振	SMD Crystal Resonators 26MHz ±10ppm SMD-2016_4P RoHS	26.000MHZ	±10ppm
X5H008000FC1H-X	HSX530G	HELE加高晶振	SMD Crystal Resonators 8MHz ±30ppm SMD-5032_2P RoHS	8.000MHZ	±30ppm
X5H027000DA1H-W	HSX530G	HELE加高晶振	SMD Crystal Resonators 27MHz ±20ppm SMD-5032_2P RoHS	27.000MHZ	±20ppm
X5H01431AFK1H-X	HSX530G	HELE加高晶振	SMD Crystal Resonators SMD_5032-2P RoHS	14.31818MHZ	-
X5H025000FK1H-X	HSX530G	HELE加高晶振	SMD Crystal Resonators SMD_5032-2P RoHS	25.000MHZ	-
X5H008000FF1H	HSX530G	HELE加高晶振	SMD Crystal Resonators SMD-5032-2P RoHS	8.000MHZ	-
X5H012288FI1H	HSX530G	HELE加高晶振	SMD Crystal Resonators 12.288MHz ±30ppm SMD-5032_2P RoHS	12.288MHZ	±30ppm
X5H008000IK1H-H	HSX530G	HELE加高晶振	SMD Crystal Resonators SMD_5032-2P RoHS	8.000MHZ	-
X2C024000BA1H	HSX211S-AU	HELE加高晶振	SMD Crystal Resonators SMD-2016 RoHS	24.000MHZ	±10ppm
X2C024000B71H-V	HSX211S-AU	HELE加高晶振	SMD Crystal Resonators SMD,2.0x1.6mm RoHS	24.000MHZ	±10ppm
X2C024000FA1H-X	HSX211S-AU	HELE加高晶振	SMD Crystal Resonators SMD,2.0x1.6mm RoHS	24.000MHZ	30PPM
X2C016000B81H-HPU	HSX211S-AU	HELE加高晶振	SMD Crystal Resonators SMD-2016 RoHS	16.000MHZ	10PPM
X2C024000B91H-HZ	HSX211S-AU	HELE加高晶振	SMD Crystal Resonators SMD,2.0x1.6mm RoHS	24.000MHZ	10PPM
X2C037400BG1H-U	HSX211S-AU	HELE加高晶振	SMD Crystal Resonators SMD-2016 RoHS	37.400MHZ	10PPM
X2C027120FA1H-HV	HSX211S-AU	HELE加高晶振	SMD Crystal Resonators SMD,2.0x1.6mm RoHS	27.120MHZ	±30ppm
X2C040000B91HA-Z	HSX211S-AU	HELE加高晶振	SMD Crystal Resonators SMD-2016 RoHS	40.000MHZ	10PPM
X2C016000B91H-R	HSX211S-AU	HELE加高晶振	SMD Crystal Resonators SMD,2.0x1.6mm RoHS	16.000MHZ	10PPM
X2C032000BA1HA-U	HSX211S-AU	HELE加高晶振	SMD Crystal Resonators SMD,2.0x1.6mm RoHS	32.000MHZ	10PPM
X2C048000L71H-CEHZ	HSX211S-AU	HELE加高晶振	SMD Crystal Resonators SMD,2.0x1.6mm RoHS	48.000MHZ	±8ppm
X2C032000BC1H-R	HSX211S-AU	HELE加高晶振	SMD Crystal Resonators SMD,2.0x1.6mm RoHS	32.000MHZ	10PPM
X2C038400BA1H-HZ	HSX211S-AU	HELE加高晶振	SMD Crystal Resonators SMD-2016 RoHS	38.400MHZ	10PPM
X2C032000B81H-HS	HSX211S-AU	HELE加高晶振	SMD Crystal Resonators SMD,2.0x1.6mm RoHS	32.000MHZ	±10ppm
X1H008000DC1H-U	HSX531S	HELE加高晶振	SMD Crystal Resonators 8MHz ±20ppm SMD_5032-4P RoHS	8.000MHZ	±20ppm
X2C026000B71H-HZ	HSX211S-AU	HELE加高晶振	SMD Crystal Resonators 26MHz ±10ppm SMD-2016_4P RoHS	26.000MHZ	±10ppm
X2C048000BA1H-HZ	HSX211S-AU	HELE加高晶振	SMD Crystal Resonators SMD,2.0x1.6mm RoHS	48.000MHZ	±10ppm
X2CO48000B71H-CEHZ	HSX211S-AU	HELE加高晶振		48.000MHZ
X2CO48000R71HA-CEHZ	HSX211S-AU	HELE加高晶振		48.000MHZ
X2CO40000BD1H-HZ	HSX211S-AU	HELE加高晶振		40.000MHZ
X2CO27120FC1H-HX	HSX211S-AU	HELE加高晶振		27.120MHZ
XSHO25000FC1H-H	HSX530G	HELE加高晶振		25.000MHZ
XSHO12000FG1H-X	HSX530G	HELE加高晶振		12.000MHZ
X5H024576FI1HA-X	HSX530G	HELE加高晶振		24.576MHZ
X1H01431AFK1H-HX	HSX531S	HELE加高晶振		14.31818MHZ	30PPM
X6S007600BI1H-X	HSX631S	HELE加高晶振		7.6.000MHZ	10PPM
X1H024576DK1H-X	HSX531S	HELE加高晶振		24.576MHZ
X1H012000BC1H-X	HSX531S	HELE加高晶振		12.000MHZ
X5H048000FQ1H-X	HSX530G	HELE加高晶振		48.000MHZ
X1H022118DW1H	HSX531S	HELE加高晶振		22.1184MHZ
X2C016000BC1H-Z	HSX211S	HELE加高晶振		16.000MHZ	±10PPM
X2C025000BC1H-U	HSX211S	HELE加高晶振		25.000MHZ	±10ppm
X2C037400BG1HA-U	HSX211S	HELE加高晶振		37.4.000MHZ	±10ppm
