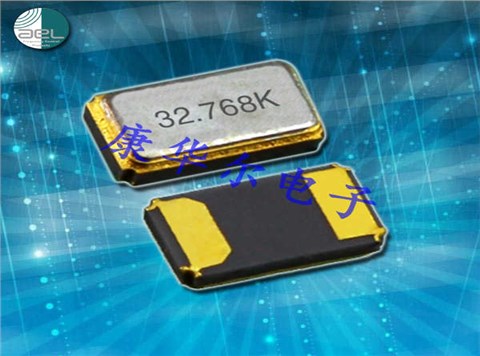

ELS06-32.768kHz-9-T,ELS06,32.768KHz,2012mm,AEL钟表电子晶振

ELS06-32.768kHz-9-T,ELS06,32.768KHz,2012mm,AEL钟表电子晶振ELS06-32.768kHz-9-T,ELS06,32.768KHz,2012mm,AEL钟表电子晶振

产品简介

ELS06-32.768kHz-9-T,ELS06,32.768KHz,2012mm,AEL钟表电子晶振，英国进口晶振，AEL艾尔晶振，型号：ELS06系列，编码为：ELS06-32.768kHz-9-T，频率：32.768KHz，负载电容：9pF，工作温度范围：-40℃至+85℃，精度：±20ppm，小体积晶振尺寸：2.0x1.2x0.6mm，音叉表晶，两脚贴片晶振，石英晶振，无源晶振，SMD晶振，石英晶体谐振器。具有超小型晶振，轻薄型晶振，高品质晶振，耐热及耐环境特点，应用于：移动通讯晶振，无线网络晶振，智能仪表晶振，可穿戴设备晶振，钟表电子晶振，数字显示等应用。

产品详情

1

ELS06-32.768kHz-9-T,ELS06,32.768KHz,2012mm,AEL钟表电子晶振，英国进口晶振，AEL艾尔晶振，型号：ELS06系列，编码为：ELS06-32.768kHz-9-T，频率：32.768KHz，负载电容：9pF，工作温度范围：-40℃至+85℃，精度：±20ppm，小体积晶振尺寸：2.0x1.2x0.6mm，音叉表晶，两脚贴片晶振，石英晶振，无源晶振，SMD晶振，石英晶体谐振器。具有超小型晶振，轻薄型晶振，高品质晶振，耐热及耐环境特点，应用于：移动通讯晶振，无线网络晶振，智能仪表晶振，可穿戴设备晶振，钟表电子晶振，数字显示等应用。

ELS06-32.768kHz-9-T,ELS06,32.768KHz,2012mm,AEL钟表电子晶振，产品特点：

•SMD音叉石英晶体
•公差：±20ppm，±10ppm可用
•工作温度-40°C至+85°C、-40°C到+125°C和-55°C到+125°C可用

2

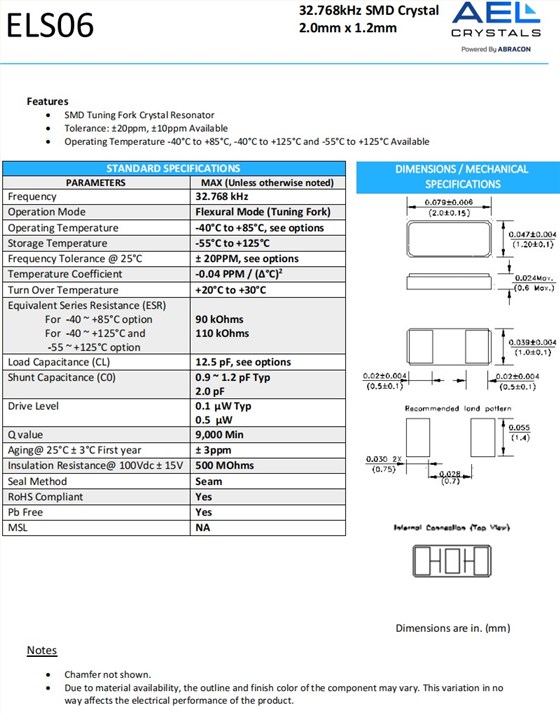

ELS06-32.768kHz-9-T,ELS06,32.768KHz,2012mm,AEL钟表电子晶振,参数表

PARAMETERS MAX (Unless otherwise noted)
Frequency 32.768 kHz
Operation Mode Flexural Mode (Tuning Fork)
Operating Temperature -40°C to +85°C, see options
Storage Temperature -55°C to +125°C
Frequency Tolerance @ 25°C ± 20PPM, see options
Temperature Coefficient -0.04 PPM / (?°C)2
Turn Over Temperature +20°C to +30°C
Equivalent Series Resistance (ESR)
For -40 ~ +85°C option
For -40 ~ +125°C and
-55 ~ +125°C option 		90 kOhms
110 kOhms
Load Capacitance (CL) 12.5 pF, see options
Shunt Capacitance (C0) 0.9 ~ 1.2 pF Typ
2.0 pF
Drive Level 0.1 μW Typ
0.5 μW
Q value 9,000 Min
Aging@ 25°C ± 3°C First year ± 3ppm
Insulation Resistance@ 100Vdc ± 15V 500 MOhms
Seal Method Seam
RoHS Compliant Yes
Pb Free Yes
MSL NA

3

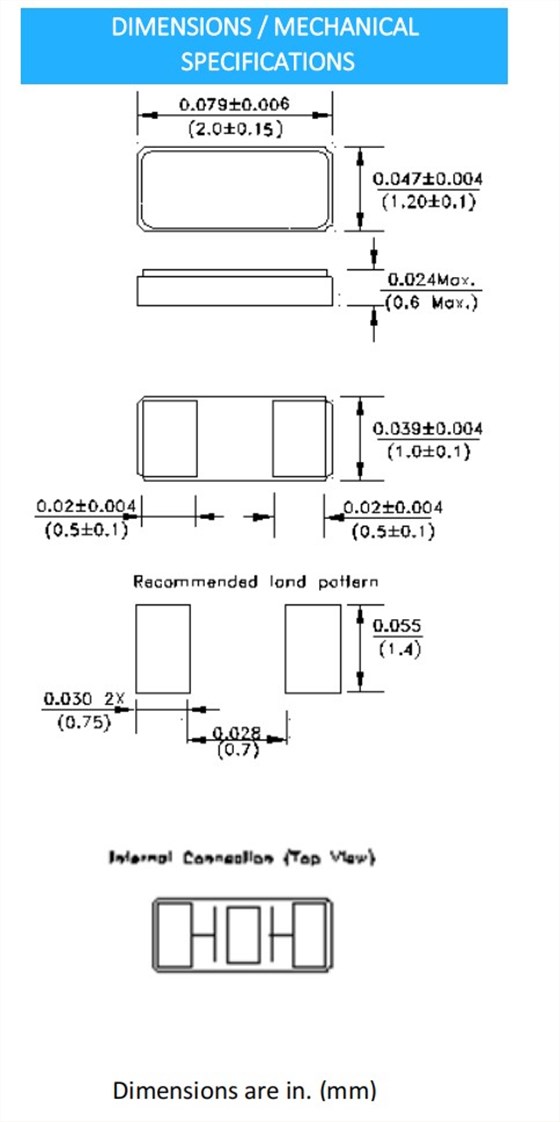

ELS06-32.768kHz-9-T,ELS06,32.768KHz,2012mm,AEL钟表电子晶振,尺寸图

ELS06尺寸

ELS06规格

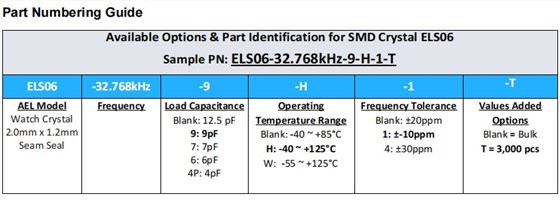

ELS06编码

进口晶振编码 品牌 型号 频率 负载电容 长度 宽度 高度
ELLS-10.000MHz-20-R60-J-Q-F-T AEL晶振 ELLS 10 MHz 20 pF 12.3mm 4.6mm 4.3mm
ELLS-12.000MHz-18-R60-A-4-F-T AEL晶振 ELLS 12 MHz 18 pF 12.3mm 4.6mm 4.3mm
ELLS-13.560MHz-10-R35-A4Y-F-T AEL晶振 ELLS 13.56 MHz 10 pF 12.3mm 4.6mm 4.3mm
ELLS-30.000MHz-10-R50-B1U-F-T AEL晶振 ELLS 30 MHz 10 pF 12.3mm 4.6mm 4.3mm
ELLS-4.000MHz-16-R120-A4-F-T AEL晶振 ELLS 4 MHz 16 pF 12.3mm 4.6mm 4.3mm
ELLS-4.000MHz-16-R120-B1X-F-T AEL晶振 ELLS 4 MHz 16 pF 12.3mm 4.6mm 4.3mm
ELLS-4.000MHz-30-R120-D4-F-T AEL晶振 ELLS 4 MHz 30 pF 12.3mm 4.6mm 4.3mm
ELLS-8.000MHz-16-R45-D4-F-T AEL晶振 ELLS 8 MHz 16 pF 12.3mm 4.6mm 4.3mm
ELM10-16.000MHz-8-R60-2-D20-T AEL晶振 ELM10 16 MHz 8 pF 2.5mm 2mm 0.5mm
ELM10-24.000MHz-16-R100-X-N15-T AEL晶振 ELM10 24 MHz 16 pF 2.5mm 2mm 0.5mm
ELM11-32.000MHz-10-R60-D1X-T AEL晶振 ELM11 32 MHz 10 pF 2mm 1.6mm 0.5mm
ELM12W-24.000MHz-6-R120-D7X-T AEL晶振 ELM12W 24 MHz 6 pF 1.6mm 1.2mm 0.4mm
ELM3-12.000MHz-30-R80-D4Y-T AEL晶振 ELM3 12 MHz 30 pF 5mm 3.2mm 1mm
ELM3-14.000MHz-30-R80-D4H-T AEL晶振 ELM3 14 MHz 30 pF 5mm 3.2mm 1mm
ELM3-24.000MHz-18-R40-D4H-T AEL晶振 ELM3 24 MHz 18 pF 5mm 3.2mm 1mm
ELM3-8.057MHz-18-R100-B4Y-T AEL晶振 ELM3 8.057 MHz 18 pF 5mm 3.2mm 1mm
ELM8-12.000MHz-10-R50-D4Y-T AEL晶振 ELM8 12 MHz 10 pF 3mm 2.5mm 0.6mm
ELM8-12.5829MHz-16-R60-1U-T AEL晶振 ELM8 12.5829 MHz 16 pF 3mm 2.5mm 0.6mm
ELM8-14.000MHz-16-R150-B1U-T AEL晶振 ELM8 14.8 MHz 16 pF 3mm 2.5mm 0.6mm
ELM8-18.432MHz-16-R80-DQ-T 石英晶振 ELM8 18.432 MHz 16 pF 3mm 2.5mm 0.6mm
ELM8-24.000MHz-10-R60-D1W-T AEL晶振 ELM8 24 MHz 10 pF 3mm 2.5mm 0.6mm
ELM8-24.000MHz-18-R60-B1W-T AEL晶振 ELM8 24 MHz 18 pF 3mm 2.5mm 0.6mm
ELM8-24.000MHz-9-R40-N1U-T AEL晶振 ELM8 24 MHz 9 pF 3mm 2.5mm 0.6mm
ELM8-26.000MHz-18-R60-B1U-T AEL晶振 ELM8 26 MHz 18 pF 3mm 2.5mm 0.6mm
ELM8-32.000MHz-16-R40-B1U-T AEL晶振 ELM8 32 MHz 16 pF 3mm 2.5mm 0.6mm
ELM8-32.000MHz-9-R40-D1G-T AEL晶振 ELM8 32 MHz 9 pF 3mm 2.5mm 0.6mm
ELS05-32.768kHz-9-T AEL晶振 ELS05 32.768 kHz 9 pF 1.6mm 1mm 0.5mm
ELS06-32.768kHz-9-T AEL晶振 ELS06 32.768 kHz 9 pF 2mm 1.2mm 0.6mm
ELS07-32.768kHz-6-T AEL晶振 ELS07 32.768 kHz 6 pF 3.2mm 1.5mm 0.75mm
ELS07-32.768kHz-T AEL晶振 ELS07 32.768 kHz 12.5 pF 3.2mm 1.5mm 0.75mm
ELS13-32.768kHz-7-T AEL晶振 ELS13 32.768 kHz 7 pF 7mm 1.5mm 1.4mm
ELS13-32.768kHz-9-T AEL晶振 ELS13 32.768 kHz 9 pF 7mm 1.5mm 1.4mm
ELS13-32.768kHz-T AEL晶振 ELS13 32.768 kHz 12.5 pF 7mm 1.5mm 1.4mm
ELS25-32.768kHz-6-2-T AEL晶振 ELS25 32.768 kHz 6 pF 8mm 3.8mm 2.4mm
ELS25-32.768kHz-T AEL晶振 ELS25 32.768 kHz 12.5 pF 8mm 3.8mm 2.4mm

5
