NX5032GA-20.000000MHZ-LN-CD-1|20MHZ|50ppm|汽车设备

NX5032GA-20.000000MHZ-LN-CD-1|20MHZ|50ppm|汽车设备,尺寸为5032mm,频率为20MHZ,频率稳定度为50ppm,日本进口晶振,SMD晶振,无源晶体,陶瓷晶振,两脚贴片晶振,NDK晶振,音叉谐振器，水晶振动子，汽车设备专用晶振，仪器仪表无源晶振，无线网络晶振，通讯产品专用晶振，低损耗晶振，高性能晶振，无源贴片晶振，NX5032GA-48.000000MHZ-LN-CD-1晶振，NX5032GA-27M-STD-CSK-4晶振。

日产晶振产品主要应用领域：无线设备，网络电子，智能产品，仪器仪表，汽车设备等领域。NX5032GA-20.000000MHZ-LN-CD-1|20MHZ|50ppm|汽车设备.

NX5032GA-20.000000MHZ-LN-CD-1|20MHZ|50ppm|汽车设备,尺寸为5032mm,频率为20MHZ,频率稳定度为50ppm,日本进口晶振,SMD晶振,无源晶体,陶瓷晶振,两脚贴片晶振,NDK晶振,音叉谐振器，水晶振动子，汽车设备专用晶振，仪器仪表无源晶振，无线网络晶振，通讯产品专用晶振，低损耗晶振，高性能晶振，无源贴片晶振，NX5032GA-48.000000MHZ-LN-CD-1晶振，NX5032GA-27M-STD-CSK-4晶振。

日产晶振产品主要应用领域：无线设备，网络电子，智能产品，仪器仪表，汽车设备等领域。NX5032GA-20.000000MHZ-LN-CD-1|20MHZ|50ppm|汽车设备.

NX5032GA-20.000000MHZ-LN-CD-1|20MHZ|50ppm|汽车设备 参数表

参数				SYM.		ElectricalSpec.									Notes
						min			typ		max		Units
标称频率				fnom		8			-		40		MHz		---
泛音的顺序				-		Fundamental							-		---
频率公差				-		--50			-		+50		×10-6		@ +25°C
频率和稳定度特点				-		--150			-		+150		×10-6		参考温度应为+25°C
等效电阻				-		-			-		*1		?		* 1。参见表1 (pi网络/系列)
负载电容				CL		-			8		-		pF		PI-network
驱动级别				-		-			10		500		µW		---
工作温度范围				Topr		--40			-		+150		°C		---
储存温度范围				Tstr		--40			-		+150		°C		---
绝缘电阻				-		500			-		-		M?		当终端对终端和终端对 盖板在DC100V±15V下通电。
气密性				-		-			-		3.0×10-9		Pa m3/s		---

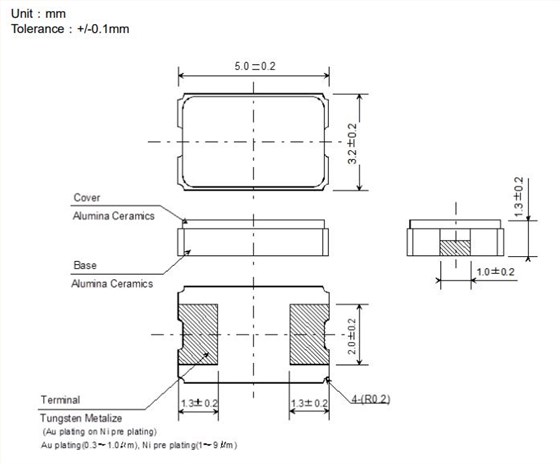

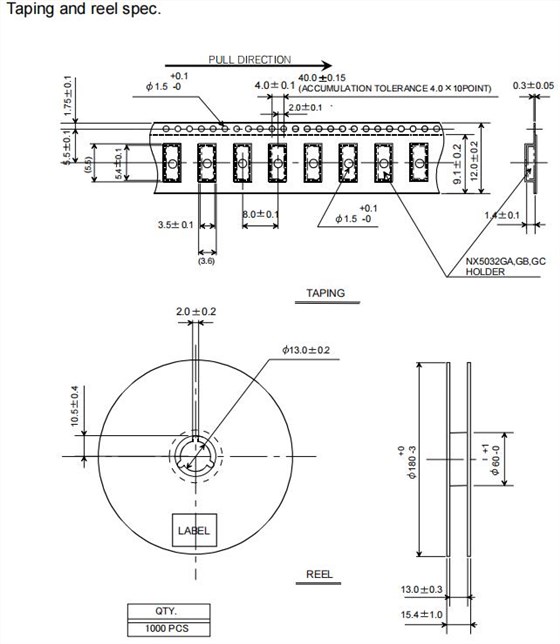

NX5032GA-20.000000MHZ-LN-CD-1|20MHZ|50ppm|汽车设备 尺寸图 包装图

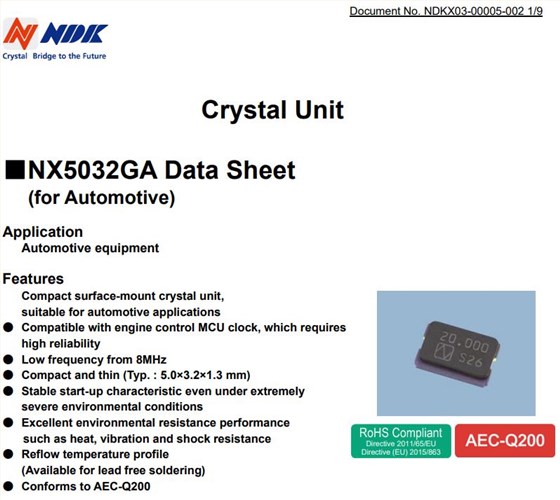

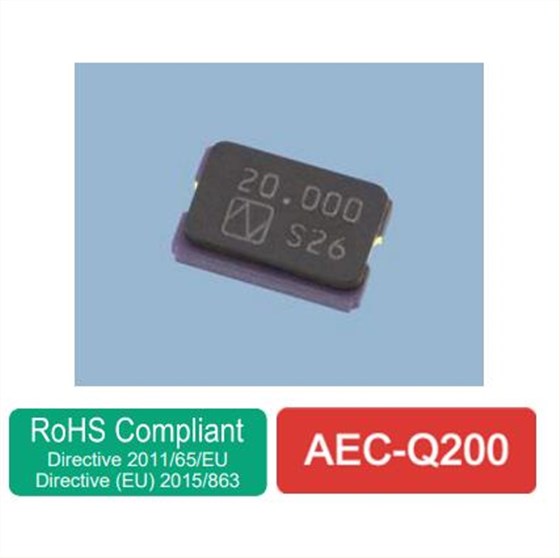

NX5032GA-20.000000MHZ-LN-CD-1|晶振特性

紧凑的表面贴装晶体单元，
适用于汽车应用
●兼容发动机控制MCU时钟，这需要高可靠性
●8MHz以内的低频
●紧凑、薄(型)。: 5.0×3.2×1.3 mm)
●即使在极端高压下，启动特性也稳定恶劣的环境条件
●优异的耐环境性能如耐热、耐振动、耐冲击
●回流温度曲线
(可进行无铅焊接)
●符合AEC-Q200标准

更多有关NDK晶振型号

原厂编码	厂家	型号	系列	频率	频率稳定度
NX5032GA-24.000000MHZ-LN-CD-1	NDK晶振	NX5032GA	MHz Crystal	24MHz	±50ppm
NX5032GA-25.000000MHZ-LN-CD-1	NDK晶振	NX5032GA	MHz Crystal	25MHz	±50ppm
NX5032GA-27.000000MHZ-LN-CD-1	NDK晶振	NX5032GA	MHz Crystal	27MHz	±50ppm
NX5032GA-16.000000MHZ-LN-CD-1	NDK晶振	NX5032GA	MHz Crystal	16MHz	±50ppm
NX5032GA-10.000000MHZ-LN-CD-1	NDK晶振	NX5032GA	MHz Crystal	10MHz	±50ppm
NX5032GA-12.000000MHZ-LN-CD-1	NDK晶振	NX5032GA	MHz Crystal	12MHz	±50ppm
NX5032GA-48.000000MHZ-LN-CD-1	NDK晶振	NX5032GA	MHz Crystal	48MHz	±50ppm
NX5032GA-16.384000MHZ-LN-CD-1	NDK晶振	NX5032GA	MHz Crystal	16.384MHz	±50ppm
NX5032GA-20.000000MHZ-LN-CD-1	NDK晶振	NX5032GA	MHz Crystal	20MHz	±50ppm
NX5032GA-32.000000MHZ-LN-CD-1	NDK晶振	NX5032GA	MHz Crystal	32MHz	±50ppm
NX5032GA-27M-STD-CSK-4	NDK晶振	NX5032GA	MHz Crystal	27MHz	±30ppm
NX5032GA-12.288M-STD-CSK-4	NDK晶振	NX5032GA	MHz Crystal	12.288MHz	±30ppm
NX5032GA-14.31818M-STD-CSK-4	NDK晶振	NX5032GA	MHz Crystal	14.31818MHz	±30ppm
NX5032GA-25.000M-STD-CSK-4	NDK晶振	NX5032GA	MHz Crystal	25MHz	±30ppm
NX5032GA-12MHZ-STD-CSK-4	NDK晶振	NX5032GA	MHz Crystal	12MHz	±30ppm
NX5032GA-10.000M-STD-CSU-1	NDK晶振	NX5032GA	MHz Crystal	10MHz	±150ppm
NX5032GA-20.000M-STD-CSU-2	NDK晶振	NX5032GA	MHz Crystal	20MHz	±150ppm
NX5032GA-12.000M-STD-CSU-2	NDK晶振	NX5032GA	MHz Crystal	12MHz	±150ppm
NX5032GA-20.000M-STD-CSK-4	NDK晶振	NX5032GA	MHz Crystal	20MHz	±30ppm
NX5032GA-13.56M-STD-CSK-4	NDK晶振	NX5032GA	MHz Crystal	13.56MHz	±30ppm
NX5032GA-12.288000MHZ-LN-CD-1	NDK晶振	NX5032GA	MHz Crystal	12.288MHz	±50ppm
NX5032GA-16MHZ-STD-CSK-8	NDK晶振	NX5032GA	MHz Crystal	16MHz	±50ppm
NX5032GA-16MHZ-STD-CSK-4	NDK晶振	NX5032GA	MHz Crystal	16MHz	±30ppm
NX5032GA- 9.84375M-STD-CSU-1	NDK晶振	NX5032GA	MHz Crystal	9.84375MHz	±150ppm
NX5032GA-10.000M-STD-CSK-3	NDK晶振	NX5032GA	MHz Crystal	10MHz	±30ppm
NX5032GA-30.000000MHZ-LN-CD-1	NDK晶振	NX5032GA	MHz Crystal	30MHz	±50ppm
NX5032GA-40.000000MHZ-LN-CD-1	NDK晶振	NX5032GA	MHz Crystal	40MHz	±50ppm
NX5032GA-12MHZ-STD-CSK-8	NDK晶振	NX5032GA	MHz Crystal	12MHz	±50ppm
NX5032GA-16.000M-STD-CSU-2	NDK晶振	NX5032GA	MHz Crystal	16MHz	±150ppm
NX5032GA-8.000M-STD-CSU-1	NDK晶振	NX5032GA	MHz Crystal	8MHz	±150ppm
NX5032GA-13.560000MHZ-LN-CD-1	NDK晶振	NX5032GA	MHz Crystal	13.56MHz	±50ppm
NX5032GA-11.0592M-STD-CSK-4	NDK晶振	NX5032GA	MHz Crystal	11.0592MHz	±30ppm
NX5032GA-30.000M-STD-CSK-4	NDK晶振	NX5032GA	MHz Crystal	30MHz	±30ppm
NX5032GA-24.000M-STD-CSK-4	NDK晶振	NX5032GA	MHz Crystal	24MHz	±30ppm
NX5032GA-40.000M-STD-CSU-2	NDK晶振	NX5032GA	MHz Crystal	40MHz	±150ppm
NX5032GA -13.56M-STD-CSU-2	NDK晶振	NX5032GA	MHz Crystal	13.56MHz	±150ppm
