NC38LF-327,NC38LF,FKT38,3x8mm,FOX插件晶振,32.768KHz，美国进口晶振，福克斯晶振，FOX晶振，型号：FKT38（Former NC38LF），编码为：NC38LF-327，频率：32.768KHz，工作温度范围：-40℃至+85℃，小体积晶振尺寸：3.0x8.0mm，两脚插件晶振，音叉晶体，石英晶振，无源晶振，圆柱晶振，石英晶体谐振器，无铅晶振。应用于：数码相机晶振，智能家居晶振，无线蓝牙晶振，电脑主板晶振，数码电子晶振，计时晶振，仪器设备晶振等应用。

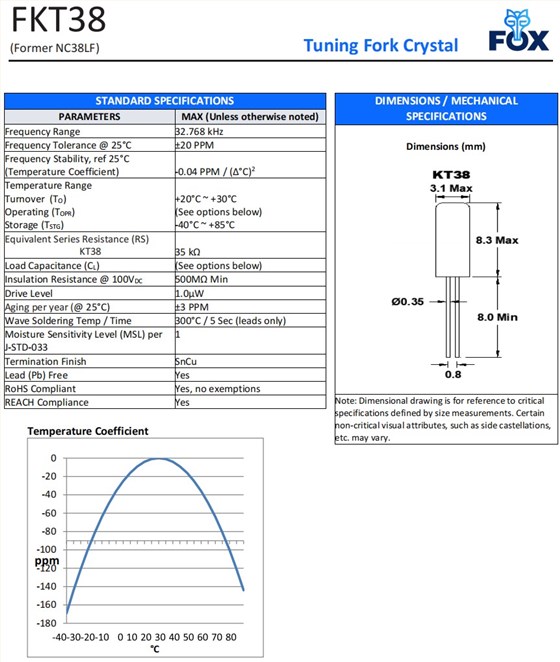

NC38LF-327,NC38LF,FKT38,3x8mm,FOX插件晶振,32.768KHz,参数表
PARAMETERS
MAX (Unless otherwise noted)
Frequency Range
32.768 kHz
Frequency Tolerance @ 25°C
±20 PPM
Frequency Stability, ref 25°C
(Temperature Coefficient)
-0.04 PPM / (△°C)2
Temperature Range
Turnover(TO)
Operating (TOPR)
Storage (TSTG)
+20°C ~ +30°C

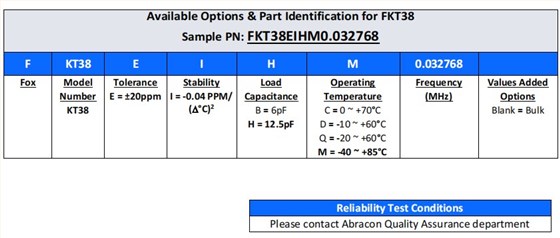

(See options below)
-40°C ~ +85°C
Equivalent Series Resistance (RS)
KT38
35 kΩ
Load Capacitance (CL)
(See options below)
Insulation Resistance @ 100VDC
500MΩMin
Drive Level
1.0µW
Aging per year (@ 25°C)
±3 PPM
Wave Soldering Temp / Time
300°C / 5 Sec (leads only)
Moisture Sensitivity Level (MSL) per
J-STD-033
1
Termination Finish
SnCu
Lead (Pb) Free
Yes
RoHS Compliant
Yes, no exemptions
REACH Compliance
Yes

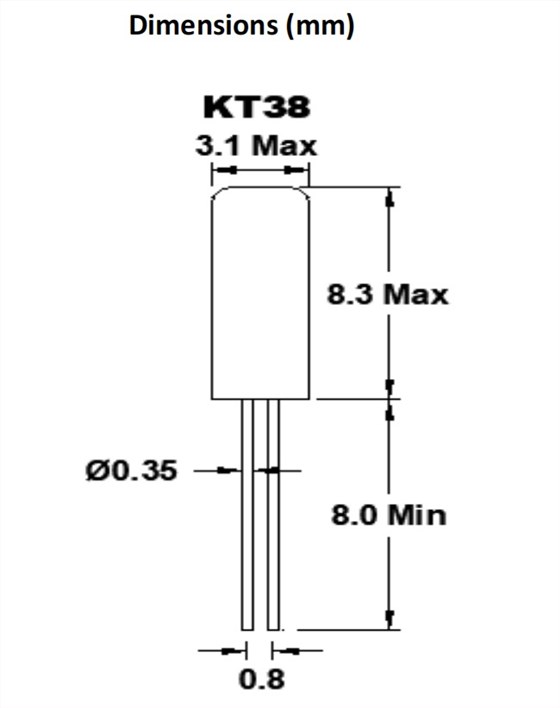

NC38LF-327,NC38LF,FKT38,3x8mm,FOX插件晶振,32.768KHz,尺寸图
