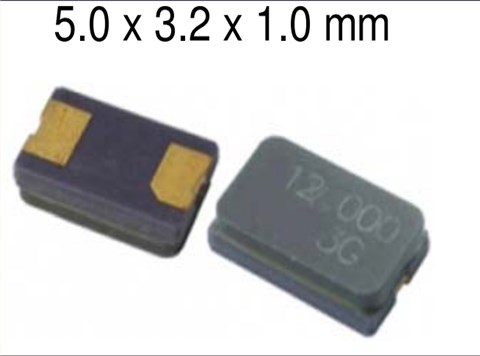

F5032B-30-50-D-S-F-54.000MHz FCD-Tech晶振 6G放大器晶振，尺寸5.00x3.20mm，频率为54MHZ，荷兰进口晶振，5032mm无源晶体，两脚贴片晶振，陶瓷晶振，无源晶振，SMD晶振，无源贴片晶振，无铅环保晶振，水晶振动子，轻薄型晶体，智能手机晶振，无线应用晶振，网络设备晶振，仪器仪表专用晶振，蓝牙音响晶振，平板电脑晶振，移动通信晶振，小型设备晶振，可视化智能家居晶振，娱乐设备晶振，低损耗晶振，高质量晶振，高性能晶振，具有良好的稳定性能。
SMD晶振产品特别适合用于移动通信，智能手机，无线应用，网络设备，仪器仪表，蓝牙音响，以及可视化智能家居，娱乐设备等领域。F5032B-30-50-D-S-F-54.000MHz FCD-Tech晶振 6G放大器晶振.

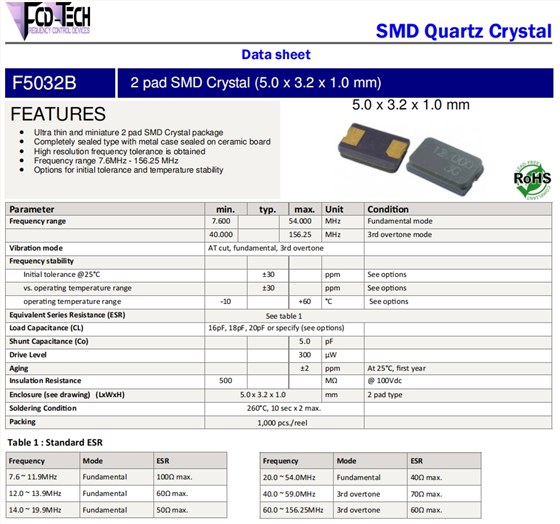

F5032B-30-50-D-S-F-54.000MHz FCD-Tech晶振 6G放大器晶振参数表
| Parameter | min. | typ. | max. | Unit | Condi?on | |||||||||||||||
| Frequency range |
|
54.000 | MHz | Fundamental mode | ||||||||||||||||
| 40.000 | 156.25 | MHz | 3rd overtone mode | |||||||||||||||||
| Vibra?on mode | AT cut, fundamental, 3rd overtone | |||||||||||||||||||
| Frequency stability | ||||||||||||||||||||
| Ini?al tolerance @25°C | ±30 | ppm | See op?ons | |||||||||||||||||
| vs. opera?ng temperature range | ±30 | ppm | See op?ons | |||||||||||||||||
| opera?ng temperature range | ‐10 | +60 | °C | See op?ons | ||||||||||||||||
| Equivalent Series Resistance (ESR) | See table 1 | |||||||||||||||||||
| Load Capacitance (CL) | 16pF, 18pF, 20pF or specify (see op?ons) | |||||||||||||||||||
| Shunt Capacitance (Co) | 5.0 | pF | ||||||||||||||||||
| Drive Level | 300 | µW | ||||||||||||||||||
| Aging | ±2 | ppm | At 25°C, ?rst year | |||||||||||||||||
| Insula?on Resistance | 500 | M? | @ 100Vdc | |||||||||||||||||
| Enclosure (see drawing)(LxWxH) | 5.0 x 3.2 x 1.0 | mm | 2 pad type | |||||||||||||||||
| Soldering Condi?on | 260°C, 10 sec x 2 max. | |||||||||||||||||||
| Packing | 1,000 pcs./reel | |||||||||||||||||||

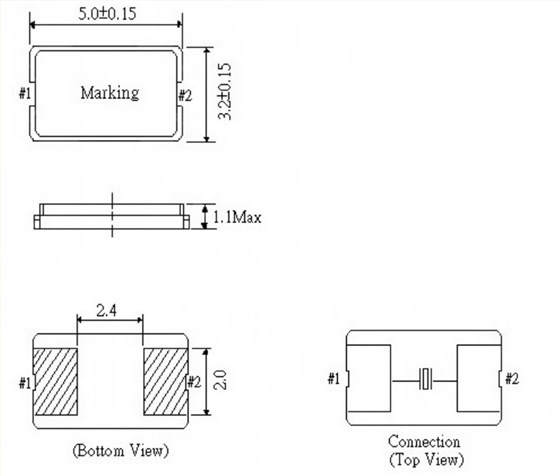

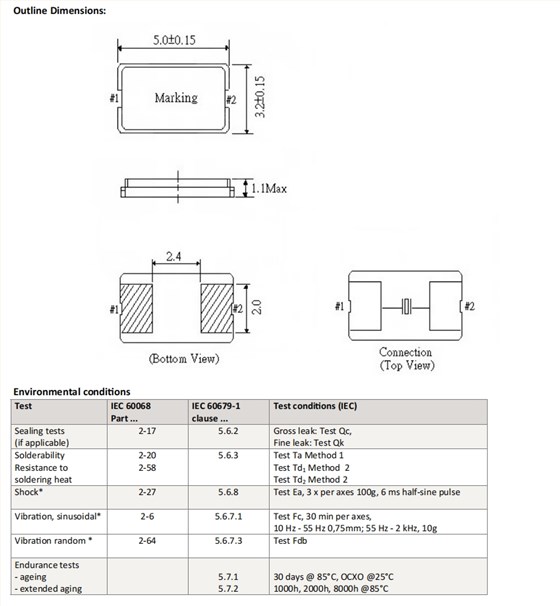

F5032B-30-50-D-S-F-54.000MHz FCD-Tech晶振 6G放大器晶振 尺寸图
贴片晶振产品特性：
超薄微型2焊盘SMD晶体封装
完全密封型，金属外壳密封在陶瓷板上
获得高分辨率频率容差
频率范围7.6MHz-156.25MHz
初始公差和温度稳定性选项
