XO-53000H无线模块晶振,XO-53331HST-LF-45.000MHz,KVG低电压振荡器,尺寸2.5x2.0mm,频率45MHZ德国进口晶振,KVG有源晶振,2520mm有源晶振,OSC贴片晶振,石英有源晶振,石英晶体振荡器,SMD振荡器,有源晶体振荡器,石英振荡子,时钟振荡器,无线模块有源晶振,室外基站有源晶振,无线路由器有源晶振,小型设备有源晶振,北斗定位有源晶振,测试设备有源晶振,仪器仪表有源晶振,低电压有源晶振,低抖动有源晶振,低损耗有源晶振,低功耗有源晶振,高性能有源晶振,高品质有源晶振,低相噪有源晶振,具有高性能低功耗的特点。
OSC晶振产品特别适合用于无线模块,室外基站,无线路由器,小型设备,北斗定位,测试设备,仪器仪表等领域。XO-53000H无线模块晶振,XO-53331HST-LF-45.000MHz,KVG低电压振荡器.

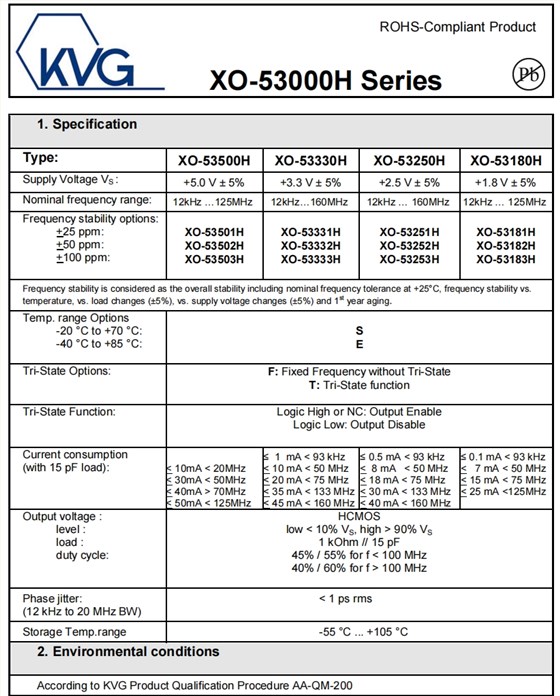

XO-53000H无线模块晶振,XO-53331HST-LF-45.000MHz,KVG低电压振荡器 参数表
Type: | XO-53500H | XO-53330H | XO-53250H | XO-53180H | ||||||||||||
Supply Voltage VS: | +5.0 V ± 5% | +3.3 V ± 5% | +2.5 V ± 5% | +1.8 V ± 5% | ||||||||||||
Nominal frequency range: | 12kHz …125MHz | 12kHz…160MHz | 12kHz …160MHz | 12kHz …125MHz | ||||||||||||
Frequency stability options: +25 ppm: +50 ppm: +100 ppm: |
XO-53501H XO-53502H XO-53503H |
XO-53331H XO-53332H XO-53333H |
XO-53251H XO-53252H XO-53253H |
XO-53181H XO-53182H XO-53183H |
||||||||||||
Frequency stability is considered as the overall stability including nominal frequency tolerance at +25°C, frequency stability vs. temperature, vs. load changes (±5%), vs. supply voltage changes (±5%) and 1styear aging. |
||||||||||||||||
Temp. range Options -20 °C to +70 °C: -40 °C to +85 °C: |
S E |
|||||||||||||||
Tri-State Options: |
F:Fixed Frequency without Tri-State T:Tri-State function |
|||||||||||||||
Tri-State Function: |
Logic High or NC: Output Enable Logic Low: Output Disable |
|||||||||||||||
Current consumption (with 15 pF load): |
<10mA < 20MHz <30mA < 50MHz <40mA > 70MHz < 50mA < 125MHz |
≤1mA < 93 kHz <10 mA < 50 MHz <20 mA < 75 MHz <35 mA < 133 MHz < 45 mA < 160 MHz |
≤ 0.5 mA < 93 kHz <8 mA< 50 MHz <18 mA < 75 MHz <30 mA < 133 MHz < 40 mA < 160 MHz |
≤ 0.1 mA < 93 kHz <7 mA < 50 MHz <15 mA < 75 MHz <25 mA <125MHz |
||||||||||||
Output voltage : level : load : duty cycle: |
HCMOS low < 10% VS, high > 90% VS 1 kOhm // 15 pF 45% / 55% for f < 100 MHz 40% / 60% for f > 100 MHz |
|||||||||||||||
Phase jitter: (12 kHz to 20 MHz BW) |
< 1 ps rms | |||||||||||||||
Storage Temp.range | -55 °C ... +105 °C |
XO-53000H无线模块晶振,XO-53331HST-LF-45.000MHz,KVG低电压振荡器 尺寸图
XO-53000H无线模块晶振,XO-53331HST-LF-45.000MHz,KVG低电压振荡器
石英晶振产品特点:
尺寸2.5x2.0mm
符合RoHS标准且无铅
低抖动低电压
