XMP-5135-1A-16pF-30MHZ,KVG石英振动子,XMP-5100网络晶振，尺寸7.0×5.0mm，频率30MHZ，德国进口晶振，KVG无源晶体，石英贴片晶振，四脚贴片晶振，SMD晶振，水晶振动子，无源晶振，7050mm无源晶振，轻薄型晶振，高质量晶振，高性能晶振，石英晶体谐振器，低功耗晶振，低损耗晶振，网络设备晶振，移动通信晶振，无线设备晶振，蓝牙音响晶振，智能手机晶振，数字视频晶振，具有高质量轻薄型的特点。
晶振外观使用金属材料封装的,具有高稳定性,高可靠性的石英晶振,晶振外观本身使用金属封装,充分的密封性能,可确保其高可靠性,采用编带包装,外包装采用朔胶盘,可在自动贴片机上对应自动贴装等优势.XMP-5135-1A-16pF-30MHZ,KVG石英振动子,XMP-5100网络晶振.

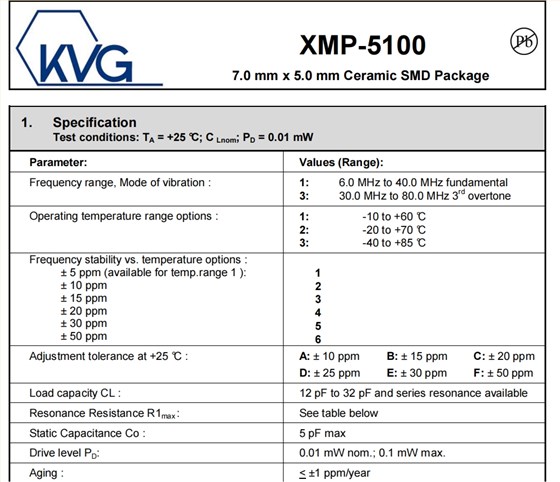

XMP-5135-1A-16pF-30MHZ,KVG石英振动子,XMP-5100网络晶振 参数表
| Parameter: | Values (Range): | |||||||||||||||||||||||
| Frequency range, Mode of vibration : |
1: 30.0 MHz fundamental 3:30.0 MHz to 80.0 MHz 3rdovertone |
|||||||||||||||||||||||
| Operating temperature range options : |
1:-10 to +60 °C 2:-20 to +70 °C 3:-40 to +85 °C |
|||||||||||||||||||||||
|
Frequency stability vs. temperature options : ± 5 ppm (available for temp.range 1 ): |
1 2 3 4 5 6 |
|||||||||||||||||||||||
|
± 10 ± 15 ± 20 ± 30 ± 50 |
ppm ppm ppm ppm ppm |
|||||||||||||||||||||||
| Adjustment tolerance at +25 °C : |
A:± 10 D:± 25 |
ppm ppm |
B:± 15 E:± 30 |
ppm ppm |
C:± 20 F:± 50 |
ppm ppm |
||||||||||||||||||
| Load capacity CL : | 12 pF to 32 pF and series resonance available | |||||||||||||||||||||||

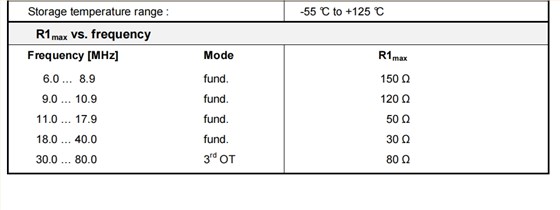

| Resonance Resistance R1max: | See table below | |||||||||||||||||||||||
| Static Capacitance Co : | 5 pF max | |||||||||||||||||||||||
| Drive level PD: | 0.01 mW nom.; 0.1 mW max. | |||||||||||||||||||||||
| Aging : | <±1 ppm/year | |||||||||||||||||||||||
| Storage temperature range : | -55 °C to +125 °C | |||||||||||||||||||||||

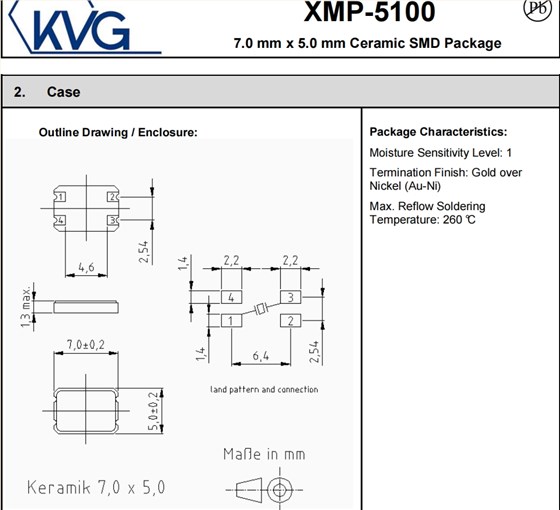

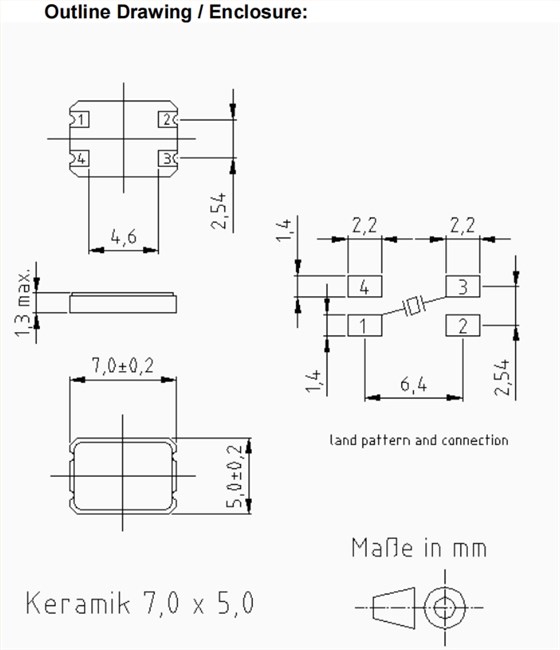

XMP-5135-1A-16pF-30MHZ,KVG石英振动子,XMP-5100网络晶振 尺寸图
XMP-5135-1A-16pF-30MHZ,KVG石英振动子,XMP-5100网络晶振
贴片晶振产品特点：
尺寸5.0x3.2mm晶体单元
符合RoHS标准且无铅
超高的可靠性能以及稳定性能
