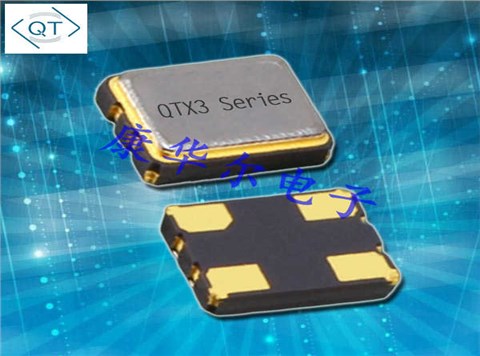

QTX333A24.5760B15TM,24.576MHz,3225mm,Quarztechnik医疗电子晶振，德国进口晶振，Quarztechnik夸克晶振，型号：QTX3，编码为：QTX333A24.5760B15TM，频率为：24.576MHz，电压3.3V，工作温度范围：-40℃至+85℃，频率稳定性：±25ppm，负载电容：15pF，小体积晶振尺寸：3.2x2.5x1.2mm封装，四脚贴片晶振，石英晶体振荡器，有源晶振，石英晶振，SMD时钟振荡器，无铅环保晶振。QX3超微型振荡器由一个TTL/HCMOS兼容的混合电路和一个微型石英晶体封装在一个低轮廓，行业标准的陶瓷封装中。3225晶振应用于：无线网络，蓝牙模块，物联网，移动通讯设备，测试设备，导航仪，汽车电子，电信，智能手机，平板电脑，智能家居，数码电子等应用。
QTX333A24.5760B15TM,24.576MHz,3225mm,Quarztechnik医疗电子晶振，产品特征：
•超小型3.2x2.5x1.2毫米包装
•频率范围1MHz至75MHz石英晶振
•标准的三态（启用/禁用）功能
•电源电压1.8V、2.5V或3.3V

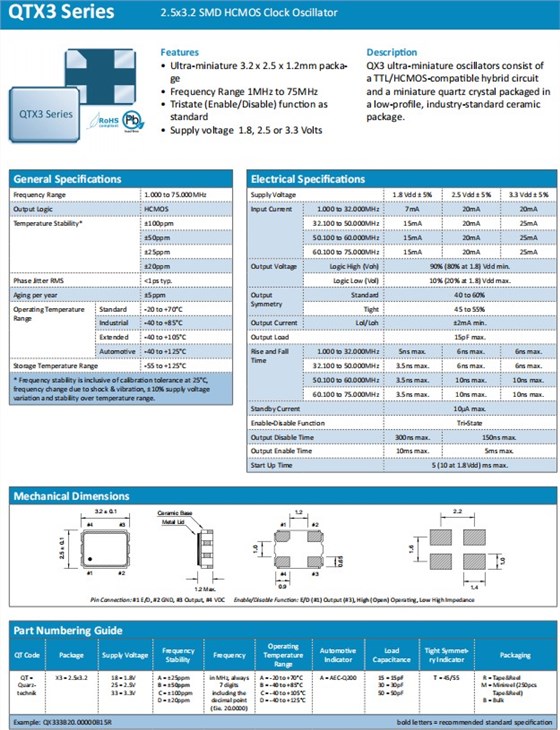

QTX333A24.5760B15TM,24.576MHz,3225mm,Quarztechnik医疗电子晶振,参数表
| General Specifications | ||
| Frequency Range | 24.576MHz | |
| Output Logic | HCMOS | |
| Temperature Stability* | ±100ppm | |
| ±50ppm | ||
| ±25ppm | ||
| ±20ppm | ||
| Phase Jitter RMS | <1ps typ. | |
| Aging per year | ±5ppm | |
|
Operating Temperature Range |
Standard | -20 to +70°C |
| Industrial | -40 to +85°C | |
| Extended | -40 to +105°C | |
| Automotive | -40 to +125°C | |
| Storage Temperature Range | -55 to +125°C | |
| * Frequency stability is inclusive of calibration tolerance at 25°C, frequency change due to shock & vibration, ±10% supply voltage variation and stability over temperature range. |
||

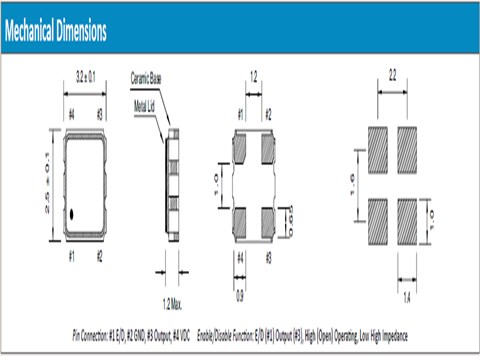

QTX333A24.5760B15TM,24.576MHz,3225mm,Quarztechnik医疗电子晶振,尺寸图
| 晶振编码 | 频率 | 输出逻辑 | 电压 | 工作温度范围 | 频率稳定性 |
| QTX533A3.68640B15M | 3.6864 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm |
| QTX533A4.00000B15M | 4.0 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm |
| QTX533A7.37280B15M | 7.3728 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm |
| QTX533A8.00000B15M | 8.0 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm |
| QTX533A10.0000B15M | 10.0 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm |
| QTX533A11.0592B15M | 11.0592 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm |
| QTX533A12.0000B15M | 12.0 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm |
| QTX533A16.0000B15M | 16.0 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm |
| QTX533A16.3840B15M | 16.384 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm |
| QTX533A20.0000B15M | 20.0 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm |
| QTX533A24.5760B15M | 24.576 MHz | 贴片晶振 | 3.3V | -40 - +85℃ | ±25ppm |
| QTX533A25.0000B15M | 25.0 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm |
| QTX533A27.0000B15M | 27.0 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm |
| QTX533A30.0000B15M | 30.0 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm |
| QTX533A32.0000B15M | 32.0 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm |
| QTX333A3.68640B15TM | 3.6864 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm |
| QTX333A4.00000B15TM | 4.0 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm |
| QTX333A7.37280B15TM | 7.3728 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm |
| QTX333A8.00000B15TM | 8.0 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm |
| QTX333A10.0000B15TM | 10.0 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm |
| QTX333A11.0592B15TM | 11.0592 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm |
| QTX333A12.0000B15TM | 12.0 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm |
| QTX333A14.7456B15TM | 14.7456 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm |
| QTX333A16.0000B15TM | 16.0 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm |
| QTX333A16.3840B15TM | 16.384 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm |
| QTX333A20.0000B15TM | 20.0 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm |
| QTX333A24.5760B15TM | 24.576 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm |
| QTX333A25.0000B15TM | 25.0 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm |
| QTX333A27.0000B15TM | 27.0 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm |
| QTX333A30.0000B15TM | 30.0 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm |
