6035mm,KX-12AE,Geyer格耶晶振,SMD石英晶体谐振器

6035mm,KX-12AE,Geyer格耶晶振,SMD石英晶体谐振器，丹麦进口晶振，Geyer格耶电子晶振，型号：KX-12AE系列，频率为：8.0MHz~150.0MHz，小体积晶振尺寸：6.0x3.5x1.0mm封装，四脚贴片晶振，6035晶振，无源晶振，石英晶体，SMD晶振，石英晶体谐振器，无铅环保晶振，工作温度范围：-40℃~+85℃ (KX-12AT)，-40℃~+105℃ (KX-12AE)，-40℃~+125℃ (KX-12AF)。具有超小型，轻薄型，高精度，高可靠性，高性能，高品质，耐热及耐环境等特点。石英晶振，被广泛应用于：移动通讯设备，无线网络，蓝牙晶振，物联网，平板电脑，安防设备，医疗设备，汽车电子，游戏机设备，数码电子，智能家居，数码电子等应用。

6035mm,KX-12AE,Geyer格耶晶振,SMD石英晶体谐振器,参数表

part no.	12.xxxxx
model	KX - 12A
frequency range	8.0 ~ 150.0 MHz
mode	fundamental,3rdovertone
operating temperature	standard-20° ~ +70°C avail. -40° ~ +85°C (=KX- 12AT) -40° ~ +105°C (=KX- 12AE) -40° ~ +125°C (=KX- 12AF)
frequency tolerance at +25°C	standard±30 ppm;available±10 ~ ±50 ppm
temperature tolerance at -20° ~ +70°C, -40° ~ +85°C -40° ~ +105°C -40° ~ +125°C	standard±50 standard±50 standard±50		ppm;available±10 ~ ±50 ppm ppm;available±30 ~ ±100 ppm ppm
load capacitance CL	standard 16 pF,available10 ~ 20 pF
series resistance R1 (ESR) max.	fundamental 3rdovertone	8.0 ~ 11.99 MHz 12.0 ~80.0MHz 40.0~ 150.0MHz		80 Ohm 50 Ohm 80 Ohm
aging at +25°C (first year) max.	±2 ppm
shunt capacitance C0max.	5.0 pF
drive level max.	300 µW
contents of reel	1000 pcs.

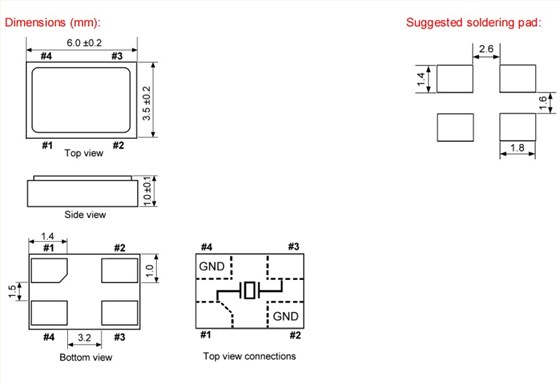

6035mm,KX-12AE,Geyer格耶晶振,SMD石英晶体谐振器,尺寸图

编码	品牌	石英晶体谐振器	型号	频率	频率温度性
12.88722	Geyer格耶	Crystal 16.0Mhz SMD KX-7T 12pF,	KX-7T	16 MHz	±25ppm
12.8902	Geyer格耶	Crystal 32.0Mhz SMD KX-9A 16pF,	KX-9A	32 MHz	±10ppm
12.60233	Geyer格耶	CRYSTAL 25.0MHZ 12PF SMD	KX-7T	25 MHz	±20ppm
12.8919	Geyer格耶	Crystal 8.0Mhz SMD KX-9AT 16pF,	KX-9AT	8 MHz	±30ppm
12.60208	Geyer格耶	CRYSTAL 26.0MHZ 8PF SMD	KX-7T	26 MHz	±10ppm
12.88664	Geyer格耶	Crystal 14.3181800Mhz 12pF SMD	KX-7	14.31818 MHz	±50ppm
12.89495	Geyer格耶	Crystal 8.0Mhz SMD KX-9BH 8pF, 4	KX-9BH	8 MHz	±50ppm
12.89103	Geyer格耶	Crystal 10.0Mhz SMD KX-9AE 16pF,	KX-9AE	10 MHz	±50ppm
12.887	Geyer格耶	Crystal 30.0Mhz 12pF SMD	KX-7	30 MHz	±50ppm
12.89131	Geyer格耶	Crystal 48.0Mhz SMD KX-9AT 16pF,	KX-9AT	48 MHz	±50ppm
12.89126	Geyer格耶	Crystal 13.560Mhz SMD KX-9AE 16p	KX-9A	13.56 MHz	±120ppm
12.6009	Geyer格耶	CRYSTAL 24.0MHZ 12PF SMD	KX-7T	24 MHz	±20ppm
12.88701	Geyer格耶	Crystal 40.0Mhz 12pF SMD	KX-7T	40 MHz	±100ppm
12.88493	Geyer格耶	Crystal 33.33Mhz SMD KX-7T 12pF,	KX-7T	33.33333 MHz	±100ppm
12.89078	Geyer格耶	Crystal 27.0Mhz SMD KX-9AT 16pF,	KX-9AT	27 MHz	±150ppm
12.88508	Geyer格耶	Crystal 24.0Mhz 12pF SMD	KX-7T	24 MHz	±50ppm
12.88711	Geyer格耶	Crystal 25.0Mhz SMD KX-7T 12pF,	KX-7T	25 MHz	±30ppm
12.89027	Geyer格耶	Crystal 25.0Mhz SMD KX-9A 16pF,	KX-9A	25 MHz	±30ppm
12.88721	Geyer格耶	Crystal 16.0Mhz 12pF SMD	KX-7T	16 MHz	±30ppm
12.88667	Geyer格耶	Crystal 25.0Mhz SMD KX-7 12pF, 4	KX-7	25 MHz	±50ppm
12.89017	Geyer晶振	Crystal 13.560Mhz SMD KX-9A 16pF	KX-9A	13.56 MHz	±50ppm
12.89082	Geyer格耶	Crystal 26.0Mhz SMD KX-9AT 16pF,	KX-9AT	26 MHz	±50ppm
12.60075	Geyer格耶	Cystal 30.0Mhz 8pF SMD	KX-7	30 MHz	±50ppm
12.89155	Geyer格耶	Crystal 32.0Mhz SMD KX-9AT 16pF,	KX-9AT	32 MHz	±30ppm
12.88522	Geyer格耶	Crystal 11.059200Mhz 12pF SMD	KX-7T	11.0592 MHz	±50ppm
12.88752	Geyer格耶	Crystal 10.0Mhz 12pF SMD	KX-7	10 MHz	±50ppm
12.88565	Geyer格耶	Crystal 8.0Mhz 12pF SMD	KX-7E	8 MHz	±50ppm
12.89209	Geyer格耶	Crystal 16.0Mhz SMD KX-9AE 20pF,	KX-9AE	16 MHz	±50ppm
12.60024	Geyer格耶	Cystal 27.0Mhz 12pF SMD	KX-7E	27 MHz	±100ppm
12.8873	Geyer格耶	Crystal 26.0Mhz 12pF SMD	KX-7T	26 MHz	±50ppm
12.88643	Geyer格耶	Crystal 14.3181800Mhz 12pF SMD	KX-7T	14.31818 MHz	±50ppm
12.88523	Geyer格耶	Crystal 40.0Mhz 12pF SMD	KX-7F	40 MHz	±50ppm
12.89288	Geyer格耶	Crystal 24.5760Mhz SMD KX-9AT 20	KX-9AT	24.576 MHz	±30ppm
12.89029	Geyer格耶	Crystal 27.0Mhz SMD KX-9A 16pF,	KX-9A	27 MHz	±50ppm
12.88799	Geyer格耶	Crystal 12.0Mhz 10pF SMD	KX-7	12 MHz	±30ppm
12.88756	Geyer格耶	Crystal 10.0Mhz 12pF SMD	KX-7E	26 MHz	±50ppm
12.8877	Geyer格耶	Crystal 30.0Mhz 12pF SMD	KX-7T	30 MHz	±10ppm
12.87106	Geyer格耶	CRYSTAL 32.768KHZ 7PF SMD	KX-327XST	32.768 kHz	±20ppm
12.87114	Geyer格耶	Cystal 32.7680Khz 12.5pF SMD	KX-327ST	32.768 kHz	-0.034ppm, ±0.006ppm
12.60023	Geyer格耶	Cystal 48.0Mhz 12pF SMD	KX-7E	48 MHz	±50ppm
