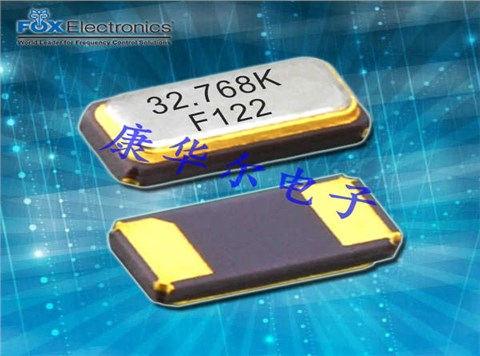

FX122,FX122-327,FK122,2012mm,32.768KHz,FOX两脚贴片晶振，进口晶振，FOX晶振，美国福克斯晶振，型号：FK122（Former FX122），编码为：FX122-327，频率：32.768KHz，工作温度范围：-40℃至+85℃，小体积晶振尺寸：2.0x1.2x0.6mm，两脚贴片晶振，石英晶振，无源晶振，手表晶体，音叉晶振，石英晶体谐振器，2012晶振，无铅晶振，贴片晶振，具有超小型晶振，轻薄型晶振，高品质晶振，高质量晶振，耐热及耐环境等特点，特别适用于：实时时钟参考，钟表电子晶振，电脑主板晶振，智能手机晶振，无线蓝牙晶振，通信晶振，数码电子晶振，游戏机设备等应用。

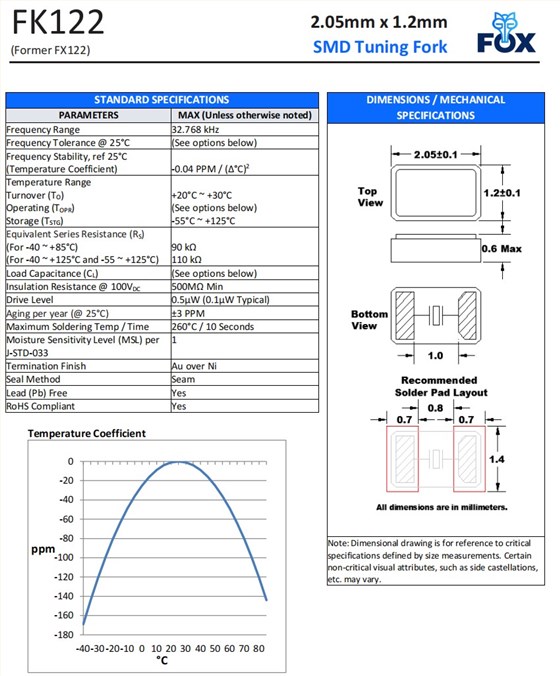

FX122,FX122-327,FK122,2012mm,32.768KHz,FOX两脚贴片晶振,参数表
PARAMETERS
MAX (Unless otherwise noted)
Frequency Range
32.768 kHz
Frequency Tolerance @ 25°C
(See options below)
Frequency Stability, ref 25°C
(Temperature Coefficient)
-0.04 PPM / (△°C)2
Temperature Range
Turnover (TO)
Operating (TOPR)
Storage (TSTG)
+20°C ~ +30°C
(See options below)
-55°C ~ +125°C
Equivalent Series Resistance (RS)
(For -40 ~ +85°C)
(For -40 ~ +125°C and -55 ~ +125°C)
90 kΩ
110 kΩ
Load Capacitance (CL)
(See options below)
Insulation Resistance @ 100VDC
500MΩMin
Drive Level
0.5μW (0.1µW Typical)
Aging per year (@ 25°C)
±3 PPM
Maximum Soldering Temp / Time
260°C / 10 Seconds
Moisture Sensitivity Level (MSL) per
J-STD-033
1
Termination Finish
Au over Ni
Seal Method
Seam
Lead (Pb) Free
Yes
RoHS Compliant
Yes

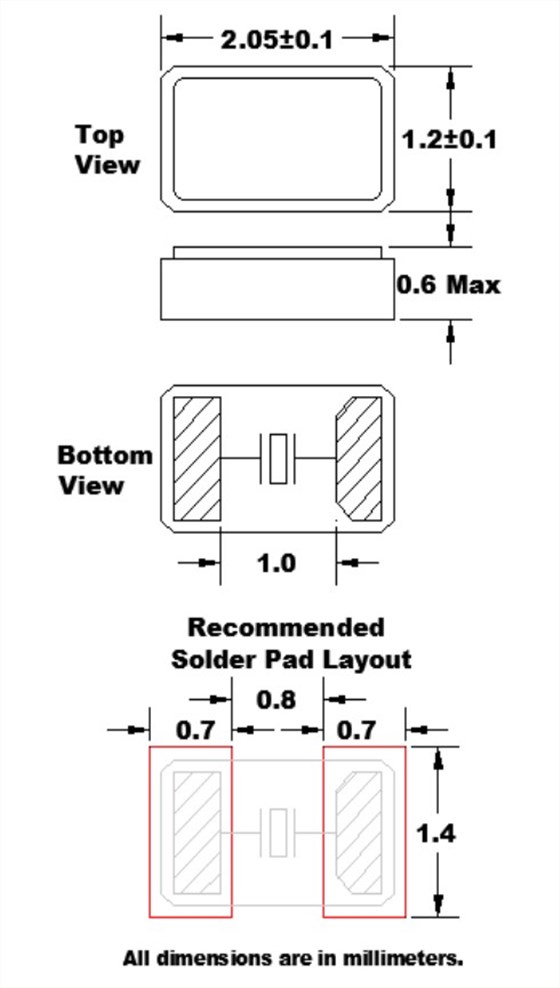

FX122,FX122-327,FK122,2012mm,32.768KHz,FOX两脚贴片晶振,尺寸图
| 原厂编码 | 晶振厂家 | 型号 | 频率 | 包装/封装 | 频率稳定度 |
| FOXSDLF/120-20 | Fox晶振 | HC49SDLF | 12MHz | HC49/US | ±50ppm |
| FX135A-327 | Fox晶振 | FX135A | 32.768kHz | 2-SMD, No Lead | - |
| FSRLF327 | Fox晶振 | FSRLF | 32.768kHz | 4-SOJ, 5.50mm pitch | - |
| FSXLF327 | Fox晶振 | FSXLF | 32.768kHz | 4-SMD, Flat Lead, 3 Leads | - |
| FQ5032B-12.000 | Fox晶振 | C5BQ | 12MHz | 4-SMD, No Lead | ±30ppm |
| FSMLF327 | Fox晶振 | FSMLF | 32.768kHz | 4-SOJ, 2.29mm pitch | - |
| FOXSDLF/160-20 | Fox晶振 | HC49SDLF | 16MHz | HC49/US | ±50ppm |
| FOXSDLF/200-20 | Fox晶振 | HC49SDLF | 20MHz | HC49/US | ±50ppm |
| FQ3225B-12.000 | Fox晶振 | FQ3225B | 12MHz | 4-SMD, No Lead | ±50ppm |
| FOXSLF/200-20 | Fox晶振 | HC49SLF | 20MHz | HC49/US | ±50ppm |
| FOXSLF/120-20 | Fox晶振 | HC49SLF | 12MHz | HC49/US | ±50ppm |
| FX252BS-16.000 | Fox晶振 | FX252B | 16MHz | 4-SMD, No Lead | ±50ppm |
| FQ5032B-20.000 | Fox晶振 | C5BQ | 20MHz | 4-SMD, No Lead | ±30ppm |
| FOXLF200-20 | Fox晶振 | HC49ULF | 20MHz | HC49/U | ±50ppm |
| NC38LF-327 | Fox晶振 | NC38LF | 32.768kHz | Cylindrical Can, Radial | - |
| NC26LF-327 | Fox晶振 | NC26LF | 32.768kHz | Cylindrical Can, Radial | - |
| FOXSDLF/120R-20/TR | Fox晶振 | HC49SDLF | 12MHz | HC49/US | ±50ppm |
| FSRLF327-6 | Fox晶振 | FSRLF | 32.768kHz | 4-SOJ, 5.50mm pitch | - |
| FX425B-12.000 | Fox晶振 | FX425B | 12MHz | 4-SMD, No Lead | ±50ppm |
| FX122-327 | Fox晶振 | FX122 | 32.768kHz | 2-SMD, No Lead | - |
| FOXSLF/160-20 | Fox晶振 | HC49SLF | 16MHz | HC49/US | ±50ppm |
| FOXSLF/160 | Fox晶振 | HC49SLF | 16MHz | HC49/US | ±50ppm |
| FOXSLF/128-20 | Fox晶振 | HC49SLF | 12.288MHz | HC49/US | ±50ppm |
| FOXSLF/245F-20 | Fox晶振 | HC49SLF | 24.576MHz | HC49/US | ±50ppm |
| FOXSLF/120 | 进口晶振 | HC49SLF | 12MHz | HC49/US | ±50ppm |
| FOXLF120-20 | Fox晶振 | HC49ULF | 12MHz | HC49/U | ±50ppm |
| FOXLF160 | Fox晶振 | HC49ULF | 16MHz | HC49/U | ±50ppm |
| FOXLF160-20 | Fox晶振 | HC49ULF | 16MHz | HC49/U | ±50ppm |
| FOXSDLF/245F-20 | Fox晶振 | HC49SDLF | 24.576MHz | HC49/US | ±50ppm |
| FOXSDLF/160R-20/TR | Fox晶振 | HC49SDLF | 16MHz | HC49/US | ±50ppm |
| FOXSDLF/200R-20/TR | Fox晶振 | HC49SDLF | 20MHz | HC49/US | ±50ppm |
| FOXSDLF/245FR-20/TR | Fox晶振 | HC49SDLF | 24.576MHz | HC49/US | ±50ppm |
| FQ5032B-24.576 | Fox晶振 | C5BQ | 24.576MHz | 4-SMD, No Lead | ±30ppm |
| FQ5032B-16.000 | Fox晶振 | C5BQ | 16MHz | 4-SMD, No Lead | ±30ppm |
| FQ5032BR-12.000 | Fox晶振 | C5BQ | 12MHz | 4-SMD, No Lead | ±50ppm |
| FQ5032BR-20.000 | Fox晶振 | C5BQ | 20MHz | 4-SMD, No Lead | ±50ppm |
| FQ3225B-16.000 | Fox晶振 | FQ3225B | 16MHz | 4-SMD, No Lead | ±50ppm |
| FQ3225BR-12.000 | Fox晶振 | FQ3225B | 12MHz | 4-SMD, No Lead | ±50ppm |
| FOXLF120 | Fox晶振 | HC49ULF | 12MHz | HC49/U | ±50ppm |
| FOXSDLF/128-20 | Fox晶振 | HC49SDLF | 12.288MHz | HC49/US | ±50ppm |
| FOXSLF/200 | Fox晶振 | HC49SLF | 20MHz | HC49/US | ±50ppm |
| FX252BS-20.000 | Fox晶振 | FX252B | 20MHz | 4-SMD, No Lead | ±50ppm |
| FQ5032BR-16.000 | Fox晶振 | C5BQ | 16MHz | 4-SMD, No Lead | ±50ppm |
| FX425B-16.000 | Fox晶振 | FX425B | 16MHz | 4-SMD, No Lead | ±50ppm |
| FQ3225B-20.000 | Fox晶振 | FQ3225B | 20MHz | 4-SMD, No Lead | ±50ppm |
| FQ3225BR-16.000 | Fox晶振 | FQ3225B | 16MHz | 4-SMD, No Lead | ±50ppm |
| FQ3225BR-20.000 | Fox晶振 | FQ3225B | 20MHz | 4-SMD, No Lead | ±50ppm |
| 603-12-67 | Fox晶振 | FX325BS | 12MHz | 4-SMD, No Lead | ±50ppm |
| FX532B-12.000 | Fox晶振 | FX532B | 12MHz | 4-SMD, No Lead | ±50ppm |
| FX532B-16.000 | Fox晶振 | FX532B | 16MHz | 4-SMD, No Lead | ±50ppm |
| FX532B-20.000 | Fox晶振 | FX532B | 20MHz | 4-SMD, No Lead | ±50ppm |
| FX532B-24.576 | Fox晶振 | FX532B | 24.576MHz | 4-SMD, No Lead | ±50ppm |
| FX425B-20.000 | Fox晶振 | FX425B | 20MHz | 4-SMD, No Lead | ±50ppm |
| FX425B-24.576 | Fox晶振 | FX425B | 24.576MHz | 4-SMD, No Lead | ±50ppm |
| FPXLF120-20 | Fox晶振 | FPXLF | 12MHz | 4-SMD, No Lead | ±50ppm |
| FPXLF160 | Fox晶振 | FPXLF | 16MHz | 4-SMD, No Lead | ±50ppm |
| FPXLF160-20 | Fox晶振 | FPXLF | 16MHz | 4-SMD, No Lead | ±50ppm |
| FPXLF200-20 | Fox晶振 | FPXLF | 20MHz | 4-SMD, No Lead | ±50ppm |
