F7050A‐30‐50‐D‐S‐F‐36.000MHz,7050mm,36MHZ,FCD-Tech环保晶振，尺寸7.0×5.0mm，频率36MHZ，欧美进口晶振，FCD-Tech小封装晶振，四脚贴片晶振，水晶振动子，石英SMD晶振，7050mm石英晶振，无源谐振器，无源晶振，贴片石英晶振，SMD晶体，低损耗晶振，低功耗晶振，低成本晶振，低耗能晶振，高性能晶振，高精度晶振，轻薄型晶振，测试测量晶振，仪器设备晶振，平板电脑晶振，移动设备晶振，视频监控晶振，数字音频晶振，具有良好的耐压性能。
石英晶振产品被广泛用于测试测量，仪器设备，平板电脑，移动设备，视频监控，数字音频等应用。F7050A‐30‐50‐D‐S‐F‐36.000MHz,7050mm,36MHZ,FCD-Tech环保晶振.

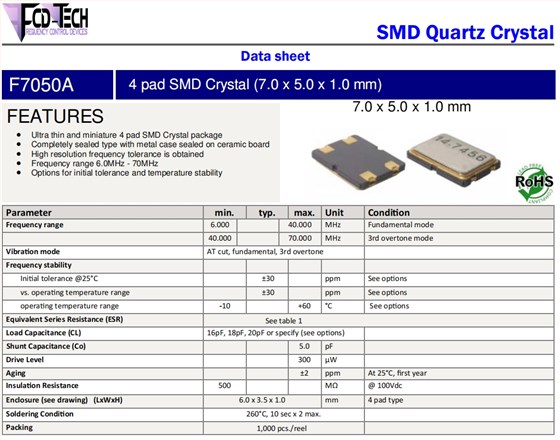

F7050A‐30‐50‐D‐S‐F‐36.000MHz,7050mm,36MHZ,FCD-Tech环保晶振 参数表
| Parameter | min. | typ. | max. | Unit | Condi?on | ||||||||||
| Frequency range |
|
36.000 |
|
MHz | Fundamental mode | ||||||||||
| 40.000 | 70.000 | MHz | 3rd overtone mode | ||||||||||||
| Vibra?on mode | AT cut, fundamental, 3rd overtone | ||||||||||||||
| Frequency stability | |||||||||||||||
| Ini?al tolerance @25°C | ±30 | ppm | See op?ons | ||||||||||||
| vs. opera?ng temperature range | ±30 | ppm | See op?ons | ||||||||||||
| opera?ng temperature range | ‐10 | +60 | °C | See op?ons | |||||||||||
| Equivalent Series Resistance (ESR) | See table 1 | ||||||||||||||
| Load Capacitance (CL) | 16pF, 18pF, 20pF or specify (see op?ons) | ||||||||||||||
| Shunt Capacitance (Co) | 5.0 | pF | |||||||||||||
| Drive Level | 300 | µW | |||||||||||||
| Aging | ±2 | ppm | At 25°C, ?rst year | ||||||||||||
| Insula?on Resistance | 500 | M? | @ 100Vdc | ||||||||||||
| Enclosure (see drawing)(LxWxH) | 6.0 x 3.5 x 1.0 | mm | 4 pad type | ||||||||||||
| Soldering Condi?on | 260°C, 10 sec x 2 max. | ||||||||||||||
| Packing | 1,000 pcs./reel | ||||||||||||||

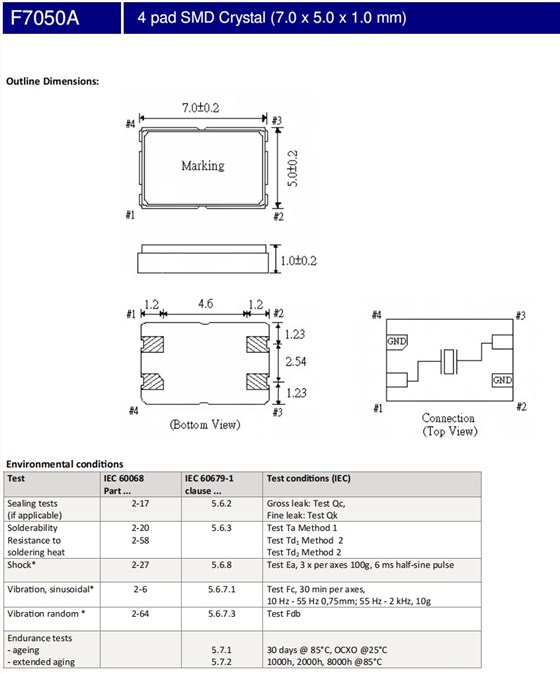

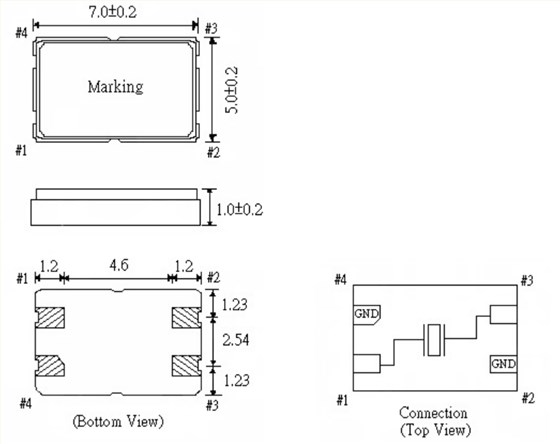

F7050A‐30‐50‐D‐S‐F‐36.000MHz,7050mm,36MHZ,FCD-Tech环保晶振尺寸图

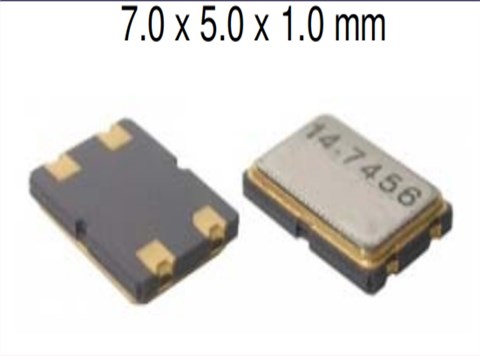

F7050A‐30‐50‐D‐S‐F‐36.000MHz,7050mm,36MHZ,FCD-Tech环保晶振
产品特点：
超薄微型4焊盘SMD晶振封装
完全密封型，金属外壳密封在陶瓷板上
获得高分辨率频率容差
频率范围6.0MHz-70MHz
初始公差和温度稳定性选项
