F1612AS‐20‐20‐D‐30‐F‐24.000MHz,6G放大器晶振,进口FCD-Tech晶体，尺寸为1.6*1.2mm，频率24MHZ，FCD-Tech荷兰进口晶振，1612mm小尺寸晶振，无源晶体，SMD晶振，贴片石英晶振，水晶振动子，无源贴片晶振，石英晶体谐振器，石英晶体，石英贴片晶体，SMD无源晶振，进口无源晶振，低损耗贴片晶体，高性能石英晶振，高精度石英晶振，高品质贴片晶振，通信应用晶振，可穿戴设备专用晶振，6G放大器专用晶振，物联网石英晶振，仪器仪表晶振，工业应用晶振，蓝牙耳机晶振，贴片晶振产品具备低损耗高精度的特点.超级适合用于高精密应用，也包含通讯产品，可穿戴设备，物联网，蓝牙耳机等领域，并为广泛应用程序提供完美的解决方案.F1612AS‐20‐20‐D‐30‐F‐24.000MHz,6G放大器晶振,进口FCD-Tech晶体.

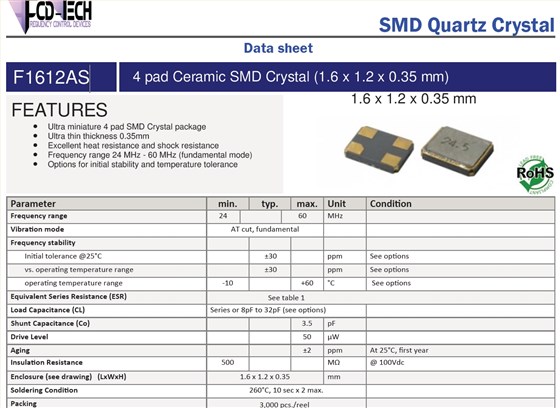

F1612AS‐20‐20‐D‐30‐F‐24.000MHz,6G放大器晶振,进口FCD-Tech晶体参数表
| Parameter | min. | typ. | max. | Unit | Condition | |||||||||||
| Frequency range | 24 |
|
MHz | |||||||||||||
| Vibration mode | AT cut, fundamental | |||||||||||||||
| Frequency stability | ||||||||||||||||
| Initial tolerance @25°C | ±30 | ppm | See options | |||||||||||||
| vs. operating temperature range | ±30 | ppm | See options | |||||||||||||
| operating temperature range | ‐10 | +60 | °C | See options | ||||||||||||

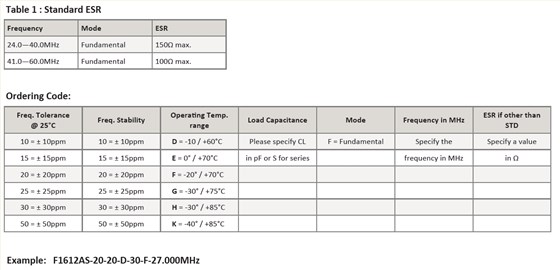

| Equivalent Series Resistance (ESR) | See table 1 | |||||||||||||||
| Load Capacitance (CL) | Series or 8pF to 32pF (See options) | |||||||||||||||
| Shunt Capacitance (Co) | 3.5 | pF | ||||||||||||||
| Drive Level | 50 | µW | ||||||||||||||
| Aging | ±2 | ppm | At 25°C, first year | |||||||||||||
| Insulation Resistance | 500 | MΩ | @ 100Vdc | |||||||||||||
| Enclosure (see drawing)(LxWxH) | 1.6 x 1.2 x 0.35 | mm | ||||||||||||||
| Soldering Condition | 260°C, 10 sec x 2 max. | |||||||||||||||
| Packing | 3,000 pcs./reel | |||||||||||||||

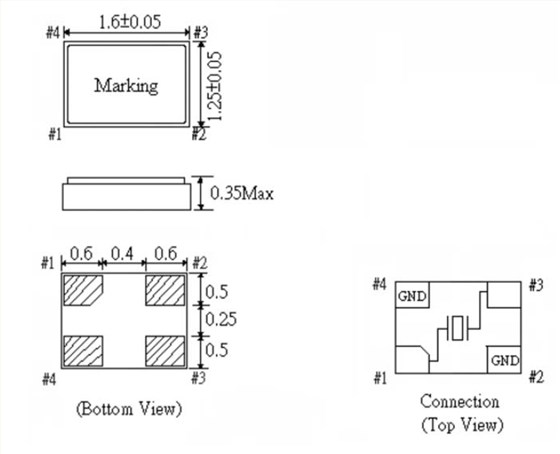

F1612AS‐20‐20‐D‐30‐F‐24.000MHz,6G放大器晶振,进口FCD-Tech晶体尺寸图
产品特性：

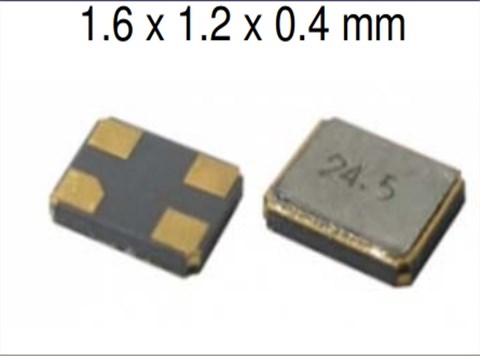

超小型4焊盘SMD晶振水晶封装
超薄厚度0.35mm
优异的耐热性和抗冲击性
频率范围24 MHz-60 MHz（基本模式）
初始稳定性和温度公差选项
更多相关FCD-Tech荷兰晶体型号，请咨询我们！
