Kyocera无线蓝牙晶体,CX1612DB轻薄型晶振,CX1612DB48000D0FPJC1

Kyocera无线蓝牙晶体,CX1612DB轻薄型晶振,CX1612DB48000D0FPJC1，尺寸1.6x1.2mm，频率48MHZ，日本进口晶振，进口京瓷晶体，京瓷石英晶振，石英SMD晶体，无源贴片晶振，石英晶体谐振器，水晶振动子，1612mm小尺寸晶振，轻薄型晶振，无铅环保晶振，数码电子晶振，无源晶振，SMD晶振，石英晶振，低损耗晶振，低功耗晶振，低耗能晶振，高质量晶振，高精度晶振，移动通信晶振，无线蓝牙晶振，网络设备晶振，影音系统晶振，小型设备晶振，便携式设备晶振，具有高精度高质量的特点。

贴片晶振产品很适合用于移动通信、蓝牙®、无线LAN，网络设备，影音系统，小型设备，便携式设备等领域。Kyocera无线蓝牙晶体,CX1612DB轻薄型晶振,CX1612DB48000D0FPJC1.

Kyocera无线蓝牙晶体,CX1612DB轻薄型晶振,CX1612DB48000D0FPJC1 参数表

項目

記号

标准规格

単位

备注

频率

f_nom

48.000

MHz

过音阶

Fundamental

―

负载容量

频率容许偏差

f_tol

±10

×10−6

25°C±3°C

串联电阻

Table 1

ohm

激励水平

Table 2

工作温度范围

T_use

−30~ +85

°C

保存温度范围

T_stg

−40~ +85

°C

频率温度特性

f_tem

±15

×10−6

相对于25°C频率的偏差

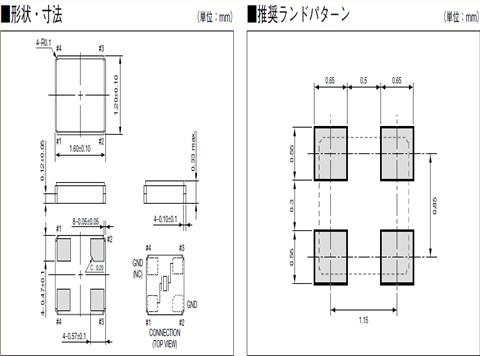

Kyocera无线蓝牙晶体,CX1612DB轻薄型晶振,CX1612DB48000D0FPJC1 尺寸图

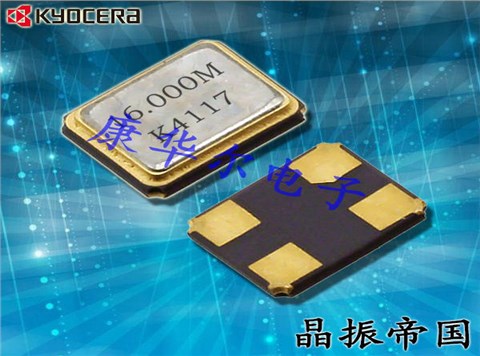

Kyocera无线蓝牙晶体,CX1612DB轻薄型晶振,CX1612DB48000D0FPJC1

石英晶体产品特点：

列出通信设备用标准频率

可自动安装、回流

通过陶瓷封装提高可靠性确保

小型薄型且优异的耐冲击性

Manufacturer Part Number原厂编码	晶振厂家	Series型号	Type 系列	Frequency	Operating Temperature工作温度
CX2016DB27120B0HLLC1	AVX Corp/Kyocera Corp	CX2016DB, Kyocera	MHz Crystal	27.12MHz	-30°C ~ 85°C
CX2016DB19200H0KFQC1	AVX Corp/Kyocera Corp	CX2016DB, Kyocera	MHz Crystal	19.2MHz	-20°C ~ 70°C
CX2016DB38400C0WPLA2	AVX Corp/Kyocera Corp	CX2016DB, Kyocera	MHz Crystal	38.4MHz	-40°C ~ 85°C
CX2016DB38400D0FLJCC	AVX Corp/Kyocera Corp	CX2016DB, Kyocera	MHz Crystal	38.4MHz	-30°C ~ 85°C
CX2016DB32000D0WZRC1	AVX Corp/Kyocera Corp	CX2016DB, Kyocera	MHz Crystal	32MHz	-25°C ~ 75°C
CX2016DB26000H0FLJC2	AVX Corp/Kyocera Corp	CX2016DB, Kyocera	MHz Crystal	26MHz	-30°C ~ 85°C
CX2016DB24000D0GEJCC	AVX Corp/Kyocera Corp	CX2016DB, Kyocera	MHz Crystal	24MHz	-10°C ~ 70°C
CX2016DB32000D0FLJCC	AVX Corp/Kyocera Corp	CX2016DB, Kyocera	MHz Crystal	32MHz	-30°C ~ 85°C
CX2016DB40000D0FLJCC	AVX Corp/Kyocera Corp	CX2016DB, Kyocera	MHz Crystal	40MHz	-30°C ~ 85°C
CX2016DB48000C0WPLA2	AVX Corp/Kyocera Corp	CX2016DB, Kyocera	MHz Crystal	48MHz	-40°C ~ 85°C
CX2016DB16000D0FLJCC	AVX Corp/Kyocera Corp	CX2016DB, Kyocera	MHz Crystal	16MHz	-30°C ~ 85°C
CT2520DB19200C0FLHAF	AVX Corp/Kyocera Corp	CT2520DB, Kyocera	MHz Crystal	19.2MHz	-30°C ~ 85°C
CX2016DB24000H0FLJC4	AVX Corp/Kyocera Corp	CX2016DB, Kyocera	MHz Crystal	24MHz	-30°C ~ 85°C
CX2016DB25000H0FLJC1	AVX Corp/Kyocera Corp	CX2016DB, Kyocera	MHz Crystal	25MHz	-30°C ~ 85°C
CX2016DB24576H0FLJC1	AVX Corp/Kyocera Corp	CX2016DB, Kyocera	MHz Crystal	24.576MHz	-30°C ~ 85°C
CX2016DB19200D0FLJC1	AVX Corp/Kyocera Corp	CX2016DB, Kyocera	MHz Crystal	19.2MHz	-30°C ~ 85°C
CX2016DB20000H0FLJC1	AVX Corp/Kyocera Corp	CX2016DB, Kyocera	MHz Crystal	20MHz	-30°C ~ 85°C
CX2016DB19200H0FLJC2	AVX Corp/Kyocera Corp	CX2016DB, Kyocera	MHz Crystal	19.2MHz	-30°C ~ 85°C
CX2016DB48000H0FLJC1	AVX Corp/Kyocera Corp	CX2016DB, Kyocera	MHz Crystal	48MHz	-30°C ~ 85°C
CX2016DB16000H0FLJC1	AVX Corp/Kyocera Corp	CX2016DB, Kyocera	MHz Crystal	16MHz	-30°C ~ 85°C
CX2016DB25000D0FLJC2	AVX Corp/Kyocera Corp	CX2016DB, Kyocera	MHz Crystal	25MHz	-30°C ~ 85°C
CX2016DB32000H0FLJC1	AVX Corp/Kyocera Corp	CX2016DB, Kyocera	MHz Crystal	32MHz	-30°C ~ 85°C
CX2016DB24000D0FLJC6	AVX Corp/Kyocera Corp	CX2016DB, Kyocera	MHz Crystal	24MHz	-30°C ~ 85°C
CX2016DB27000H0FLFC1	AVX Corp/Kyocera Corp	CX2016DB, Kyocera	MHz Crystal	27MHz	-30°C ~ 85°C
CX2016DB26000D0FLJCC	AVX Corp/Kyocera Corp	CX2016DB, Kyocera	MHz Crystal	26MHz	-30°C ~ 85°C
CX2016DB20000D0FLJCC	AVX Corp/Kyocera Corp	CX2016DB, Kyocera	MHz Crystal	20MHz	-30°C ~ 85°C
CX2016DB48000E0DLFA1	AVX Corp/Kyocera Corp	CX2016DB, Kyocera	MHz Crystal	48MHz	-30°C ~ 85°C
CX2016DB16000D0WZRC1	AVX Corp/Kyocera Corp	CX2016DB, Kyocera	MHz Crystal	16MHz	-25°C ~ 75°C
CX2016DB48000C0WLLA1	AVX Corp/Kyocera Corp	CX2016DB, Kyocera	MHz Crystal	48MHz	-30°C ~ 85°C
CX2016DB16000D0GPSC1	AVX Corp/Kyocera Corp	CX2016DB, Kyocera	MHz Crystal	16MHz	-40°C ~ 85°C
CT2520DB26000C0FZZA1	AVX Corp/Kyocera Corp	CT2520DB, Kyocera	MHz Crystal	26MHz	-25°C ~ 85°C
CX1612DB48000D0FPJC1	AVX Corp/Kyocera Corp	CX1612DB, Kyocera	MHz Crystal	48MHz	-40°C ~ 85°C
CX2016DB32000D0WPRC1	AVX Corp/Kyocera Corp	CX2016DB, Kyocera	MHz Crystal	32MHz	-25°C ~ 75°C
CX2016DB19200D0GPSC1	AVX Corp/Kyocera Corp	CX2016DB, Kyocera	MHz Crystal	19.2MHz	-40°C ~ 85°C
CX2016DB20000D0GPSC1	AVX Corp/Kyocera Corp	CX2016DB, Kyocera	MHz Crystal	20MHz	-40°C ~ 85°C
CX2016DB24000D0GPSC2	AVX Corp/Kyocera Corp	CX2016DB, Kyocera	MHz Crystal	24MHz	-40°C ~ 85°C
CX2016DB24576D0FLJC1	AVX Corp/Kyocera Corp	CX2016DB, Kyocera	MHz Crystal	24.576MHz	-30°C ~ 85°C
CX2016DB24576D0GPSC1	AVX Corp/Kyocera Corp	CX2016DB, Kyocera	MHz Crystal	24.576MHz	-40°C ~ 85°C
CX2016DB25000D0GPSC1	AVX Corp/Kyocera Corp	CX2016DB, Kyocera	MHz Crystal	25MHz	-40°C ~ 85°C
CX2016DB26000D0FLJC4	AVX Corp/Kyocera Corp	CX2016DB, Kyocera	MHz Crystal	26MHz	-30°C ~ 85°C
CX2016DB26000D0GPSC1	AVX Corp/Kyocera Corp	CX2016DB, Kyocera	MHz Crystal	26MHz	-40°C ~ 85°C
CX2016DB27000D0FLJC1	AVX Corp/Kyocera Corp	CX2016DB, Kyocera	MHz Crystal	27MHz	-30°C ~ 85°C
CX2016DB27000H0FLJC1	AVX Corp/Kyocera Corp	CX2016DB, Kyocera	MHz Crystal	27MHz	-30°C ~ 85°C
CX2016DB27000D0GPSC1	AVX Corp/Kyocera Corp	CX2016DB, Kyocera	MHz Crystal	27MHz	-40°C ~ 85°C
CX2016DB30000D0FLJC1	AVX Corp/Kyocera Corp	CX2016DB, Kyocera	MHz Crystal	30MHz	-30°C ~ 85°C
CX2016DB30000H0FLJC1	AVX Corp/Kyocera Corp	CX2016DB, Kyocera	MHz Crystal	30MHz	-30°C ~ 85°C
CX2016DB30000D0GPSC1	AVX Corp/Kyocera Corp	CX2016DB, Kyocera	MHz Crystal	30MHz	-40°C ~ 85°C
CX2016DB32000D0GPSC1	AVX Corp/Kyocera Corp	CX2016DB, Kyocera	MHz Crystal	32MHz	-40°C ~ 85°C
CX2016DB38400D0FLJC2	AVX Corp/Kyocera Corp	CX2016DB, Kyocera	MHz Crystal	38.4MHz	-30°C ~ 85°C
CX2016DB38400H0FLJC1	AVX Corp/Kyocera Corp	CX2016DB, Kyocera	MHz Crystal	38.4MHz	-30°C ~ 85°C
CX2016DB38400D0GPSC1	AVX Corp/Kyocera Corp	CX2016DB, Kyocera	MHz Crystal	38.4MHz	-40°C ~ 85°C
CX2016DB40000H0FLJC1	AVX Corp/Kyocera Corp	CX2016DB, Kyocera	MHz Crystal	40MHz	-30°C ~ 85°C
CX2016DB40000D0GPSC1	AVX Corp/Kyocera Corp	CX2016DB, Kyocera	MHz Crystal	40MHz	-40°C ~ 85°C
CX2016DB48000D0FLJC1	AVX Corp/Kyocera Corp	CX2016DB, Kyocera	MHz Crystal	48MHz	-30°C ~ 85°C
CX2016DB48000D0GPSC1	AVX Corp/Kyocera Corp	CX2016DB, Kyocera	MHz Crystal	48MHz	-40°C ~ 85°C
CX2016DB24576D0GEJCC	AVX Corp/Kyocera Corp	CX2016DB, Kyocera	MHz Crystal	24.576MHz	-10°C ~ 70°C
CX2016DB27000D0GEJCC	AVX Corp/Kyocera Corp	CX2016DB, Kyocera	MHz Crystal	27MHz	-10°C ~ 70°C
CX2016DB35416K0DZFA1	AVX Corp/Kyocera Corp	CX2016DB, Kyocera	MHz Crystal	35.416MHz	-10°C ~ 70°C
CX1612DB26000D0FLJC1	AVX Corp/Kyocera Corp	CX1612DB, Kyocera	MHz Crystal	26MHz	-30°C ~ 85°C
CX1612DB52000D0FLJC1	AVX Corp/Kyocera Corp	CX1612DB, Kyocera	MHz Crystal	52MHz	-30°C ~ 85°C
CX2016DB35416K0HJLC1	AVX Corp/Kyocera Corp	CX2016DB, Kyocera	MHz Crystal	35.416MHz	-30°C ~ 85°C
CX2016DB24576D0GEJZ1	AVX Corp/Kyocera Corp	CX2016DB, Kyocera	MHz Crystal	24.576MHz	-10°C ~ 70°C
CX2016DB26000D0FLJZ1	AVX Corp/Kyocera Corp	CX2016DB, Kyocera	MHz Crystal	26MHz	-30°C ~ 85°C
CX2016DB27000D0GEJZ1	KYOCERA Crystal	CX2016DB, Kyocera	MHz Crystal	27MHz	-10°C ~ 70°C
CX2016DB32000D0FLJZ1	AVX Corp/Kyocera Corp	CX2016DB, Kyocera	MHz Crystal	32MHz	-30°C ~ 85°C
CX2016DB38400D0FLJZ1	AVX Corp/Kyocera Corp	CX2016DB, Kyocera	MHz Crystal	38.4MHz	-30°C ~ 85°C
CX2016DB40000D0FLJZ1	AVX Corp/Kyocera Corp	CX2016DB, Kyocera	MHz Crystal	40MHz	-30°C ~ 85°C
CX2016DB24000D0GEJZ1	AVX Corp/Kyocera Corp	CX2016DB, Kyocera	MHz Crystal	24MHz	-10°C ~ 70°C
CX2016DB26000D0FLJC1	AVX Corp/Kyocera Corp	CX2016DB, Kyocera	MHz Crystal	26MHz	-30°C ~ 85°C
CX2016DB50000D0KJSC1	AVX Corp/Kyocera Corp	CX2016DB, Kyocera	MHz Crystal	50MHz	-30°C ~ 75°C
CX2016DB31250K0KJSC1	AVX Corp/Kyocera Corp	CX2016DB, Kyocera	MHz Crystal	31.25MHz	-30°C ~ 75°C
CX2016DB39062K0KJSC1	AVX Corp/Kyocera Corp	CX2016DB, Kyocera	MHz Crystal	39.0625MHz	-30°C ~ 75°C
CX2016DB38880D0KJSC1	AVX Corp/Kyocera Corp	CX2016DB, Kyocera	MHz Crystal	38.88MHz	-30°C ~ 75°C
CX2016DB40960D0KJSC1	AVX Corp/Kyocera Corp	CX2016DB, Kyocera	MHz Crystal	40.96MHz	-30°C ~ 75°C
CX2016DB53125K0KJSC1	AVX Corp/Kyocera Corp	CX2016DB, Kyocera	MHz Crystal	53.125MHz	-30°C ~ 75°C
