2520mm,CT25M32.0000F10V13-100,CT25M热敏晶体,32MHZ,NKG无线晶振,四脚贴片晶振,NKG石英晶振,2520mm热敏晶振,32MHZ贴片晶振,无源石英晶振,石英晶体,水晶振动子,石英晶体谐振器,尺寸2.5x2.0mm,频率32MHZ,无铅环保晶振,耐高温晶振,高可靠晶振,蓝牙晶振,无线应用晶振,通讯设备晶振,便携式设备晶振.
2520mm,CT25M32.0000F10V13-100,CT25M热敏晶体,32MHZ,NKG无线晶振特点:
内置热敏电阻100k?用于温度测量。
贴片晶振非常适合与具有内置温度的IC一起使用补偿振荡器电路。

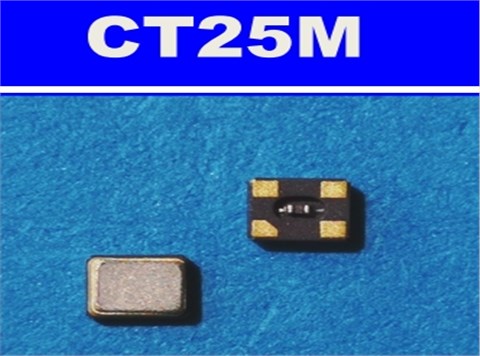

高度可靠的封装尺寸为2.5 x 2.0 x 0.8mm，带4个焊盘。

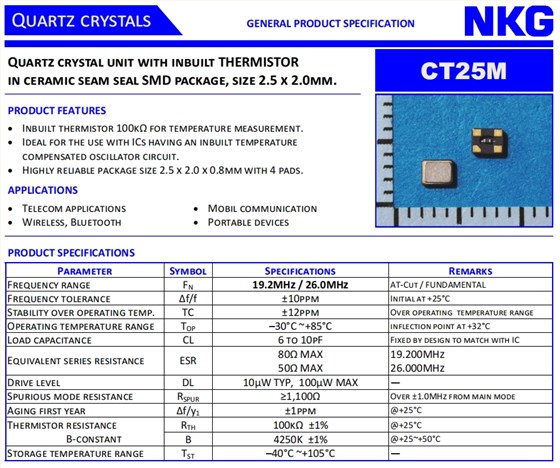

2520mm,CT25M32.0000F10V13-100,CT25M热敏晶体,32MHZ,NKG无线晶振 参数表
| Parameter | Symbol | Specifications | Remarks | ||||||||||
| Frequency range | FN | 32.0MHz | AT-Cut / FUNDAMENTAL | ||||||||||
| Frequency tolerance | Δf/f | ±10ppm | Initial at +25°C | ||||||||||
| Stability over operating temp. | TC | ±12ppm | Over operatingtemperature range | ||||||||||
| Operating temperature range | TOP | –30°C ~+85°C | inflection point at +32°C | ||||||||||
| Load capacitance | CL | 6 to 10pF | Fixed by design to match with IC | ||||||||||
| Equivalent series resistance | ESR |
80Ω MAX 50Ω MAX |
19.200MHz 26.000MHz |
||||||||||
| Drive level | DL | 10µW TYP,100µW MAX | — | ||||||||||
| Spurious mode resistance | RSPUR | ≥1,100? | Over ±1.0MHz from main mode | ||||||||||
| Aging first year | Δf/y1 | ±1ppm | @+25°C | ||||||||||
|
Thermistor resistance B-constant |
RTH | 100k?±1% | @+25°C | ||||||||||
| B | 4250K±1% | @+25~+50°C | |||||||||||
| Storage temperature range | TST | –40°C ~+105°C | — | ||||||||||

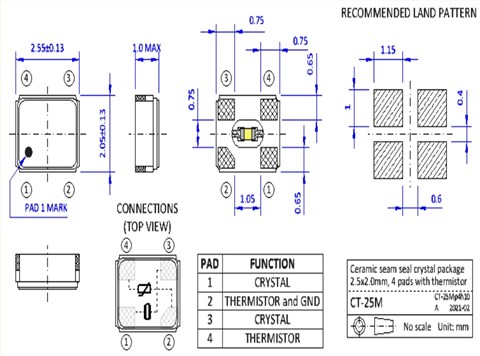

2520mm,CT25M32.0000F10V13-100,CT25M热敏晶体,32MHZ,NKG无线晶振尺寸图
