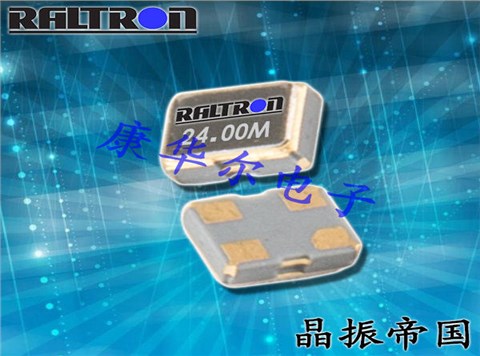

CO2016智能穿戴晶振,CO2016-20.000-3.3-50-T-TR,Raltron有源晶振

CO2016智能穿戴晶振,CO2016-20.000-3.3-50-T-TR,Raltron有源晶振，尺寸2.0x1.6mm，频率20MHZ，电压3.3V，支持输出CMOS，美国拉隆晶振，欧美进口晶振，2016mm有源晶振，时钟晶体振荡器，有源贴片晶振，有源石英振荡器，石英晶体振荡器，CMOS输出晶振，高性能有源晶振，高品质有源晶振，低功耗有源晶振，低耗能有源晶振，低电压有源晶振，低相位有源晶振，智能穿戴专用有源晶振，移动通信有源晶振，物联网有源晶振，光通讯有源晶振，便携式设备有源晶振，多媒体设备有源晶振，具有低功耗高品质的特点，OSC晶振产品比较适合用于智能穿戴，移动通信，物联网，光通讯，便携式设备，多媒体设备等应用领域。CO2016智能穿戴晶振,CO2016-20.000-3.3-50-T-TR,Raltron有源晶振.

CO2016智能穿戴晶振,CO2016-20.000-3.3-50-T-TR,Raltron有源晶振 参数表

PARAMETER

VALUE

Nominal Frequency

20MHZ

Operating Temperature Range

-20°C~+70°CStandard
-40°C ~ +85?C Extended

Frequency Stability*

±20 ppm, ±25 ppm, ±30 ppm, ±50 ppm

Storage Temperature Range

-55°C to +125°C

Supply Voltage (Vcc)

1.8 V, 3.3 V, 5.0 V

Supply Current

240 µA max

Output
CMOS

Symmetry

40% to 60% at 50% Vdd (45% to 55% Available)

Rise / Fall Time

200 ns max at 10% to 90% Vdd

Logic “0” Level

Vcc x 0.1 V max

Logic “1” Level

Vcc x 0.9 V min

Load

15 pF max

Enable / Disable Function

Pin 1: High or Open >> Output enabled Pin 3
Pin 1: Low >> Output disabled (High impedance)

Start-up Time

10 ms max

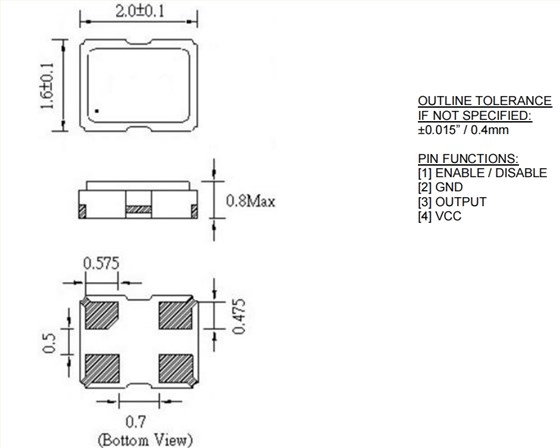

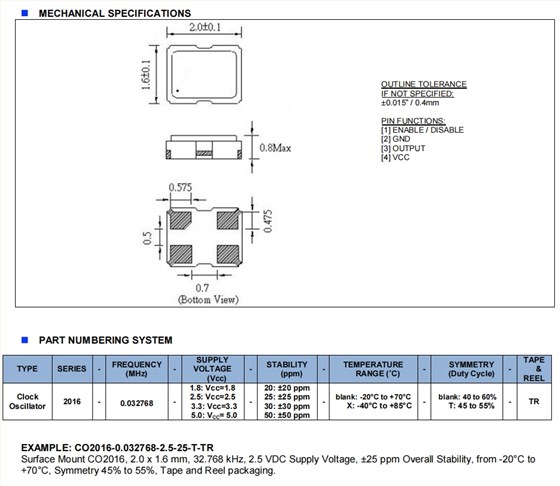

CO2016智能穿戴晶振,CO2016-20.000-3.3-50-T-TR,Raltron有源晶振 尺寸图

CO2016智能穿戴晶振,CO2016-20.000-3.3-50-T-TR,Raltron有源晶振

OscillatorCrystal产品特点：

支持比较宽的频率

CMOS输出

电源电压1.8~5.0 V

低电流消耗类型

低相位噪声

元器件详情	包装	Oscillator Type	Operating Frequency	Frequency Stability	Supply Voltage
	盒装		32MHz	±100ppm	5V
CO13100-32.000-EXT
Raltron
CO13系列32 MHz 13.21 x 13.21 mm 5 V ±100 ppm通孔时钟振荡器
	管装		40MHz	±100ppm	5V
CO19050-40.000-T
Raltron
CO1 Series 40 MHz 5 V ±100 ppm -20°C TO +70°C Thru-Hole HCMOS Clock Oscillator
	卷盘		20MHz	±50ppm	3.3V
CO2016-20.000-3.3-50-T-TR
Raltron
CO2016 系列 2 x 1.6 mm 20 MHz 3.3 V ±50 ppm 表面贴装时钟振荡器
	卷盘		25MHz	±50ppm	3.3V
CO2016-25.000-3.3-50-T-TR
Raltron
CO2016 系列 2 x 1.6 mm 25 MHz 3.3 V ±50 ppm 表面贴装时钟振荡器
	卷盘		50MHz	±50ppm	3.3V
CO2016-50.000-3.3-50-T-TR
Raltron
CO2016系列2 x 1.6 mm 50 MHz 3.3 V ±50 ppm表面贴装时钟振荡器
	卷盘		25MHz	±20ppm	3.3V
CO4302-25.000-EXT-T-T
Raltron
CO4 Series 25 MHz 3.3 V ±20 ppm -40°C TO +85°C SMT CMOS Clock Oscillator
	卷盘		40MHz	±20ppm	3.3V
CO4302-40.000-T-EXT-TR
Raltron
CO43 系列 40 MHz ±20 ppm -40 至 +85°C 严格对称标准贴装时钟振荡器
	卷盘		11.184MHz	±25ppm	3.3V
CO43025-11.184-TR
Raltron
CO43025 系列 11.184 MHz 薄型 5 X 7 mm 3.3 V 25 PPM 表面贴装振荡器
	卷盘		12.96MHz	±25ppm	3.3V
CO43025-12.960-TR
Raltron
CO43025系列12.960 MHz薄型5 X 7 mm 3.3 V 25 PPM表面贴装振荡器
	盒装		14.3182MHz	±25ppm	3.3V
CO43025-14.31818-T
Raltron
CO43025 系列 14.31818 MHz 薄型 5 X 7 mm 3.3 V 25 PPM 表面贴装振荡器
	卷盘		14.3182MHz	±25ppm	3.3V
CO43025-14.31818-T-TR
Raltron
CO4 Series 14.31818 MHz 3.3 V ±25 ppm -20°C TO +70°C SMT CMOS Clock Oscillator
	卷盘		16.384MHz	±25ppm	3.3V
CO43025-16.384-T-TR
Raltron
CO43025 系列 16.384 MHz 薄型 5 X 7 mm 3.3 V 25 PPM 表面贴装振荡器
	卷盘		20MHz	±25ppm	3.3V
CO43025-20.000-EXT-T-TR
Raltron
CO43025 系列 20 MHz 薄型 5 X 7 mm 3.3 V 25 PPM 表面贴装扩展型振荡器
	卷盘		24.576MHz	±25ppm	3.3V
CO43025-24.576-T-TR
Raltron
CO43 Series 24.576 MHz 7 x 5 mm 3.3 V ±25 ppm Surface Mount Clock Oscillator
	卷盘		24.704MHz	±25ppm	3.3V
CO43025-24.704-EXT-T
Raltron
CO43 Series 24.704 MHz 7 x 5 mm 3.3 V ±25 ppm Surface Mount Clock Oscillator
	卷盘		25MHz	±25ppm	3.3V
CO43025-25.000-T-TR
Raltron
CO43 Series 25 MHz 7 x 5 mm 3.3 V ±25 ppm Surface Mount Clock Oscillator
	卷盘
CO43025-32.000-EXT-T-TR
Raltron
CO4 Series 32 MHz 3.3 V ±25 ppm -40°C TO +85°C SMT CMOS Clock Oscillator
	卷盘		25MHz	±25ppm	3.3V
CO43025S-25.000-EXT-TR
Raltron晶振
CO43025 系列 25 MHz 薄型 5 X 7 mm 3.3 V 25 PPM 表面贴装扩展型振荡器
	卷盘		27MHz	±25ppm	3.3V
CO43025S-27.000-T-TR- L30
Raltron
CO43 Series 27 MHz 7 x 5 mm 3.3 V ±25 ppm Surface Mount Clock Oscillator
	卷盘		1.8432MHz	±50ppm	3.3V
CO4305-1.8432MHZ-T
Raltron
CO43 Series 1.8432 MHz 7 x 5 mm 3.3 V ±50 ppm Surface Mount Clock Oscillator
	卷盘		10MHz	±50ppm	3.3V
CO4305-10.000-T-TR
Raltron
CO4 Series 10 MHz 3.3 V ±50 ppm -20°C TO +70°C SMT CMOS Clock Oscillator
	卷盘		11.0592MHz	±50ppm	3.3V
CO4305-11.0592MHZ-T
Raltron
CO4 Series 11.0592 MHz 3.3 V ±50 ppm -20°C TO +70°C SMT CMOS Clock Oscillator
	剪切卷带		11.2896MHz	±50ppm	3.3V
CO4305-11.2896-EXT-T-TR
Raltron
CO43 Series 11.2896 MHz ±50 ppm -40 to +85°C Tight Symmetry SMT Clock Oscillator
	卷盘		16MHz	±50ppm	3.3V
CO4305-16.000-EXT-TR
Raltron
C043 系列 16 MHz ± 50 ppm 7 x 5 mm 3.3 V 表面贴装时钟振荡器
	卷盘		2.048MHz	±50ppm	3.3V
CO4305-2.048-T-TR
Raltron
CO43 系列 2.048 MHz 7 x 5 mm 3.3 V ±50 ppm 表面贴装时钟振荡器
	卷盘		20MHz	±50ppm	3.3V
CO4305-20.000-T-TR
Raltron
CO43系列20 MHz 7 x 5 mm 3.3 V ±50 ppm表面贴装时钟振荡器
	卷盘		22.118MHz	±50ppm	3.3V
CO4305-22.118-EXT-TR
Raltron
CO4 Series 22.118 MHz 3.3 V ±50 ppm -40°C TO +85°C SMT CMOS Clock Oscillator
	卷盘		22.118MHz	±50ppm	3.3V
CO4305-22.118M-EXT
Raltron
CO43 系列 22.118 MHz 7 x 5 mm 3.3 V ±100 ppm 表面贴装时钟振荡器
	卷盘		24MHz	±50ppm	3.3V
CO4305-24.000-T-TR
Raltron
CO43 系列 24 MHz 7 x 5 mm 3.3 V ±100 ppm 表面贴装时钟振荡器
	卷盘		24MHz	±50ppm	3.3V
CO4305-24.000-TR
Raltron
CO43 系列 24 MHz 7 x 5 mm 3.3 V ±100 ppm 表面贴装时钟振荡器
	卷盘		24.576MHz	±50ppm	3.3V
CO4305-24.576-EXT-T-T
Raltron
CO4 Series 24.576 MHz 3.3 V ±50 ppm -40°C TO +85°C SMT CMOS Clock Oscillator
	卷盘		24.576MHz	±50ppm	3.3V
CO4305-24.576-EXT-TR-L30
Raltron
CO43 Series 24.576 MHz 7 x 5 mm 3.3 V ±50 ppm Surface Mount Clock Oscillator
	卷盘		25MHz	±50ppm	3.3V
CO4305-25.000-EXT-TR
Raltron
CO4 Series 25 MHz 3.3 V ±50 ppm -40°C TO +85°C SMT CMOS Clock Oscillator
	卷盘		25MHz	±50ppm	3.3V
CO4305-25.000-EXT-TR-L30
Raltron
CO4 Series 25 MHz 3.3 V ±50 ppm -40°C TO +85°C SMT CMOS Clock Oscillator
	卷盘		25MHz	±50ppm	3.3V
CO4305-25.000-TR
Raltron
CO4305 系列 25 MHz 50 ppm 3.3 V -10 至 70°C 表面贴装振荡器
	卷盘		25MHz	±50ppm	3.3V
CO4305-25.000T-TR
Raltron
CO43 Series 25 MHz 7 x 5 mm 3.3 V ±50 ppm Surface Mount Clock Oscillator
	卷盘		28.224MHz	±50ppm	3.3V
CO4305-28.224-EXT-TR
Raltron
CO43 Series 28.224 MHz 7 x 5 mm 3.3 V ±50 ppm Surface Mount Clock Oscillator
