3225mm,BXT-322(V),TCXO,LiHom品牌,蜂窝电话应用晶振,韩国进口晶振,Lihom力宏晶振,型号:BXT-322(V)系列晶振,频率范围:13MHz至40MHz,电源电压:+1.7V~+3.3V。工作温度范围:-30℃至+85℃,小体积贴片晶振,尺寸:3.2x2.5x1.1mm,四脚贴片晶振,SMD TCXO晶振,温补晶振,石英晶振,有源晶振,3225晶振,热敏晶振,石英晶体振荡器。具有超小型,轻薄型,低抖动,低功耗,低相位噪声,低电源电压,低耗能,低损耗等特点。应用程序:蜂窝电话(GSM、CDMA和WCDMA),GPS模块晶振,WIBRO、DMB、PDA,中继器等。
3225mm,BXT-322(V),TCXO,LiHom品牌,蜂窝电话应用晶振,产品特点:

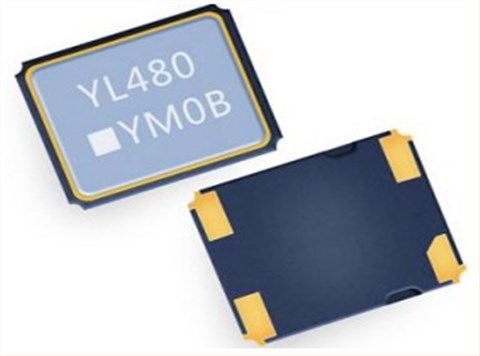

-3.2 x 2.5 x 1.1(最大)mm的表面安装石英晶体单元
带有热敏电阻,温补晶振
-优异的可靠性特性,如热和机械冲击
-不含铅且满足RoHs要求
-可进行回流焊接

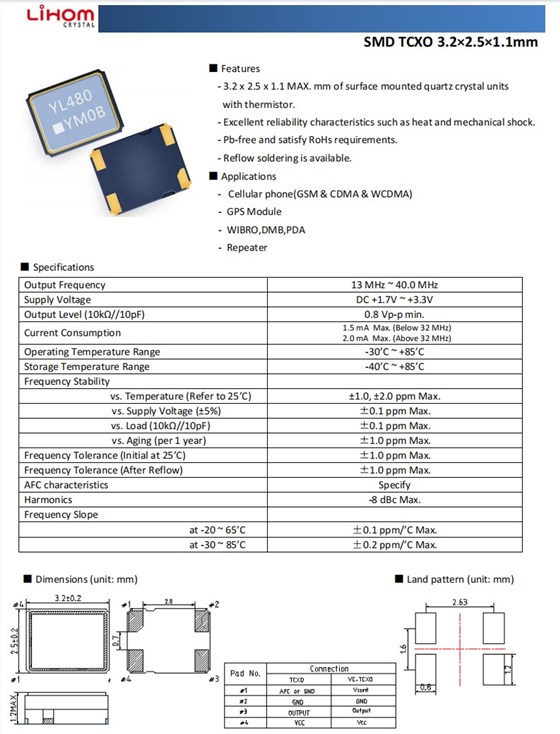

3225mm,BXT-322(V),TCXO,LiHom品牌,蜂窝电话应用晶振,参数表
Output Frequency
13 MHz ~ 40.0 MHz
Supply Voltage
DC +1.7V ~ +3.3V
Output Level (10k?//10pF)
0.8 Vp-pmin.
Current Consumption
1.5 mAMax. (Below 32 MHz)
2.0 mAMax. (Above 32 MHz)
Operating Temperature Range
-30℃ ~ +85℃
Storage Temperature Range
-40℃ ~ +85℃
Frequency Stability
vs. Temperature (Refer to 25℃)
±1.0, ±2.0 ppm Max.
vs. Supply Voltage (±5%)
±0.1 ppm Max.
vs. Load (10k?//10pF)
±0.1 ppm Max.
vs. Aging (per 1 year)
±1.0 ppm Max.
Frequency Tolerance (Initial at 25℃)
±1.0 ppm Max.
Frequency Tolerance (After Reflow)
±1.0 ppm Max.
AFC characteristics
Specify
Harmonics
-8 dBc Max.
Frequency Slope
at -20 ~ 65℃
±0.1 ppm/℃ Max.
at -30 ~ 85℃
±0.2 ppm/℃ Max.

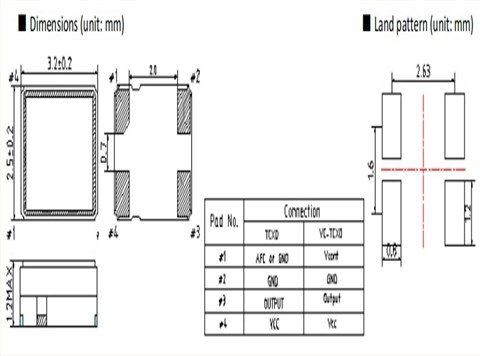

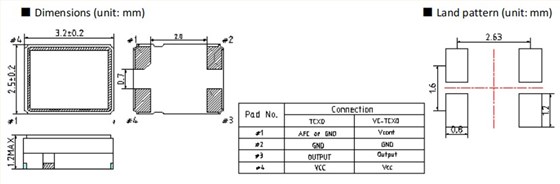

3225mm,BXT-322(V),TCXO,LiHom品牌,蜂窝电话应用晶振,尺寸图
