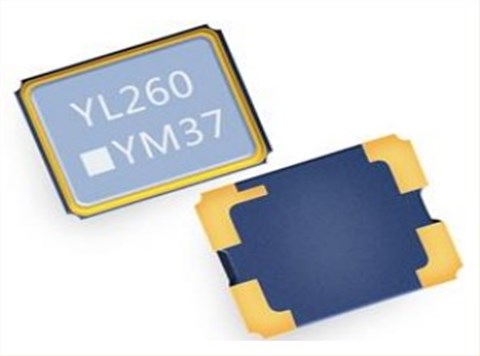

BXT-201(V),TCXO,2016mm,LiHom有源晶振,GPS模块晶振

产品简介

BXT-201(V),TCXO,2016mm,LiHom有源晶振,GPS模块晶振，韩国进口晶振，Lihom力宏晶振，型号：BXT-201(V)系列晶振，频率范围：8MHz至52MHz，电源电压：+1.7V~+3.3V。工作温度范围：-30℃至+85℃，小体积晶振尺寸：2.0x1.6x0.85mm，四脚贴片晶振，TCXO温补晶体振荡器，温补晶振，有源晶振，石英晶振，热敏晶振，石英晶体振荡器，2016晶振，SMD晶振。具有超小型，轻薄型，低抖动，低功耗，低相位噪声，低电压，低耗能，低损耗等特点。应用程序：蜂窝电话（GSM、CDMA和WCDMA），GPS模块晶振，WIBRO、DMB、PDA，中继器等。

产品详情

BXT-201(V),TCXO,2016mm,LiHom有源晶振,GPS模块晶振,产品特点：

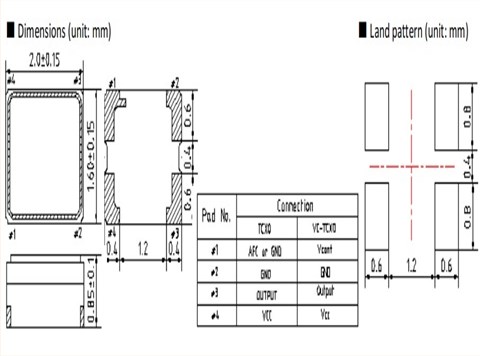

-2.0 x 1.6 x 0.85（最大）mm表面安装石英晶体单元
-带有热敏电阻，石英晶体振荡器
-优异的可靠性特性，如热和机械冲击
-不含铅且满足RoHs要求
-可进行回流焊接

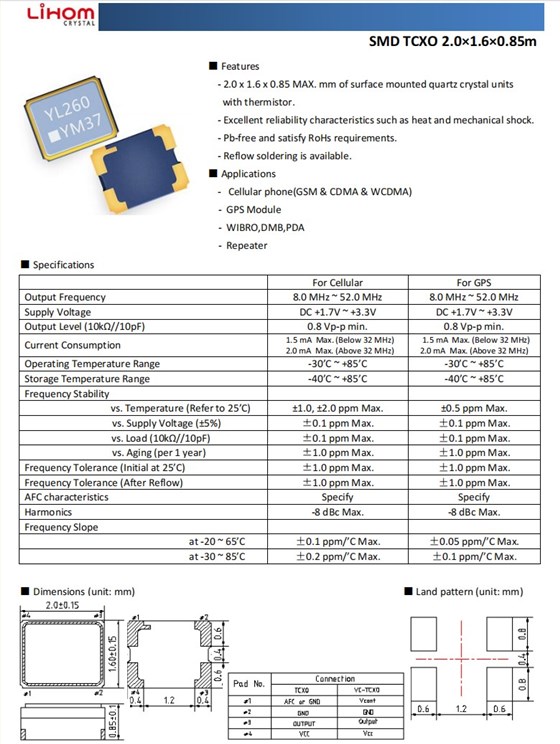

BXT-201(V),TCXO,2016mm,LiHom有源晶振,GPS模块晶振,参数表

	For Cellular	For GPS
Output Frequency	8.0 MHz ~ 52.0 MHz	8.0 MHz ~ 52.0 MHz
Supply Voltage	DC +1.7V ~ +3.3V	DC +1.7V ~ +3.3V
Output Level (10k?//10pF)	0.8 Vp-pmin.	0.8 Vp-pmin.
Current Consumption	1.5 mAMax. (Below 32 MHz) 2.0 mAMax. (Above 32 MHz)	1.5 mAMax. (Below 32 MHz) 2.0 mAMax. (Above 32 MHz)
Operating Temperature Range	-30’C ~ +85’C	-30’C ~ +85’C
Storage Temperature Range	-40’C ~ +85’C	-40’C ~ +85’C
Frequency Stability
vs. Temperature (Refer to 25’C)	±1.0, ±2.0 ppm Max.	±0.5 ppm Max.
vs. Supply Voltage (±5%)	±0.1 ppm Max.	±0.1 ppm Max.
vs. Load (10k?//10pF)	±0.1 ppm Max.	±0.1 ppm Max.
vs. Aging (per 1 year)	±1.0 ppm Max.	±1.0 ppm Max.
Frequency Tolerance (Initial at 25’C)	±1.0 ppm Max.	±1.0 ppm Max.
Frequency Tolerance (After Reflow)	±1.0 ppm Max.	±1.0 ppm Max.
AFC characteristics	Specify	Specify
Harmonics	-8 dBc Max.	-8 dBc Max.
Frequency Slope
at -20 ~ 65’C	±0.1 ppm/’C Max.	±0.05 ppm/’C Max.
at -30 ~ 85’C	±0.2 ppm/’C Max.	±0.1 ppm/’C Max.
