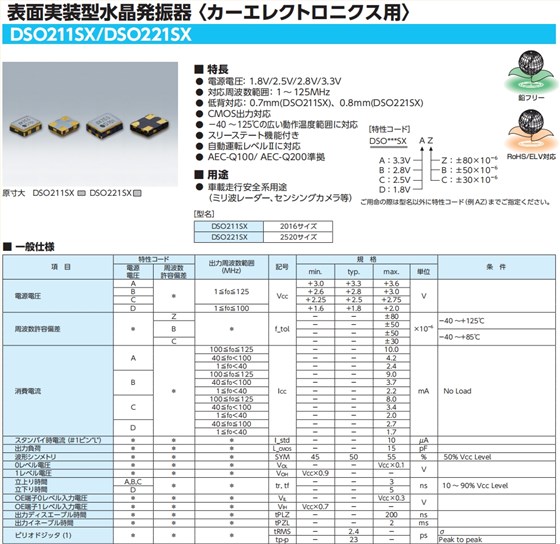

7FE02496A00,DSO221SX传感相机晶振,大真空CMOS输出振荡器 参数表
项目 | 特性代码 |
输出频率范围 ( MHz ) |
符号 | 规格值 | 单位 | 条件 | ||||
---|---|---|---|---|---|---|---|---|---|---|
电源 电压 |
频率 允许偏差 |
最小。 | typ | 最大。 | ||||||
电源电压 | A | * | 1≦fo≦125 | VCC | +3.0 | +3.3 | +3.6 | V | ||
B | * | +2.6 | +2.8 | +3.0 | ||||||
C | * | +2.25 | +2.5 | +2.75 | ||||||
D | * | 1≦fo≦100 | +1.6 | +1.8 | +2.0 | |||||
频率允许偏差 (包括常温偏差) |
* | A | * | f_tol | - | - | ±100 | ×10-6 | -40~+125℃ | |
Z | - | - | ±80 | |||||||
B | - | - | ±50 | |||||||
- | - | ±50 | -40~+85℃ | |||||||
C | - | - | ±30 | |||||||
消耗电流 | A | * | 100≦fo≦125 | ICC | - | - | 10.0 | mA | No Load | |
40≦fo<100 | - | - | 4.2 | |||||||
1≦fo<40 | - | - | 2.4 | |||||||
B | 100≦fo≦125 | - | - | 9.0 | ||||||
40≦fo<100 | - | - | 3.7 | |||||||
1≦fo<40 | - | - | 2.2 | |||||||
C | 100≦fo≦125 | - | - | 8.0 | ||||||
40≦fo<100 | - | - | 3.4 | |||||||
1≦fo<40 | - | - | 2.0 | |||||||
D | 40≦fo≦100 | - | - | 2.7 | ||||||
1≦fo<40 | - | - | 1.7 | |||||||
待机时电流( #1针" l " ) | * | * | * | I_std | - | - | 10 | μA | ||
输出负载 | * | * | * | L_CMOS | - | - | 15 | pF | ||
波形对称 | * | * | * | SYM | 45 | 50 | 55 | % | at 50% V抄送 | |
0电平电压 | * | * | * | VOL | - | - | VCC×0.1 | V | ||
1电平电压 | VOH | VCC×0.9 | - | - | ||||||
上升时间 下降时间 |
a,b,c | * | * | tr,tf | - | - | 3 | ns | 10~90% VCCLevel | |
D | - | - | 5 | |||||||
OE引脚0电平输入电压 | * | * | * | VIL | - | - | VCC×0.3 | V | ||
OE引脚1电平输入电压 | * | * | * | VIH | VCC×0.7 | - | - | |||
输出禁用时间 | * | * | * | tPLZ | - | - | 200 | ns | ||
输出使能时间 | * | * | * | tPZL | - | - | 2 | ms | ||
句点抖动(1) | * | * | * | tRMS | - | 2.4 | - | ps | σ | |
tp-p | - | 23 | - | Peak to peak | ||||||
总抖动(1) | * | * | * | tTL | - | 34 | - | ps | tDJ+n×tRJ n=14.1(BER=1×10-12) (2) | |
相位抖动 | * | * | 40≦fo≦125 | tpj | - | - | 1 | ps | fo offset:12kHz?20MHz | |
10≦fo<40 | fo offset:12kHz?5MHz | |||||||||
可靠性规格 | AEC-Q100/AEC-Q200 | |||||||||
包装单位(1) | 3000pcs./reel(φ180 ) |

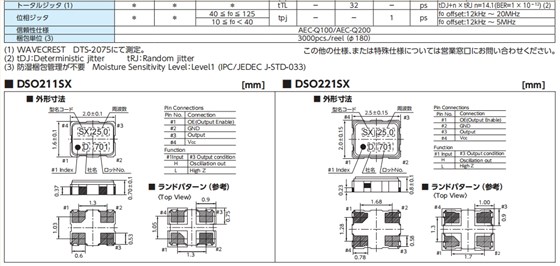

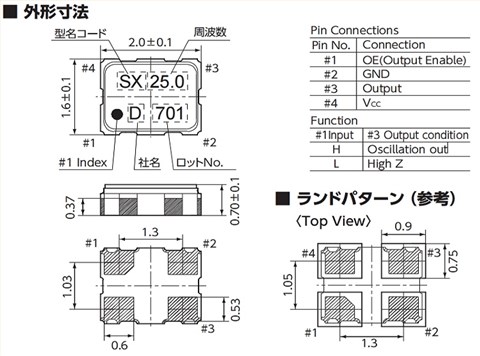

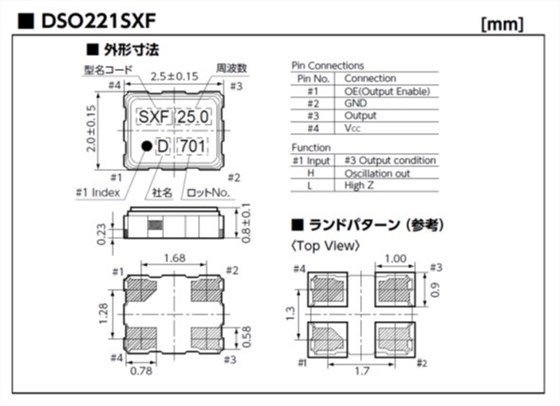

7FE02496A00,DSO221SX传感相机晶振,大真空CMOS输出振荡器 尺寸图

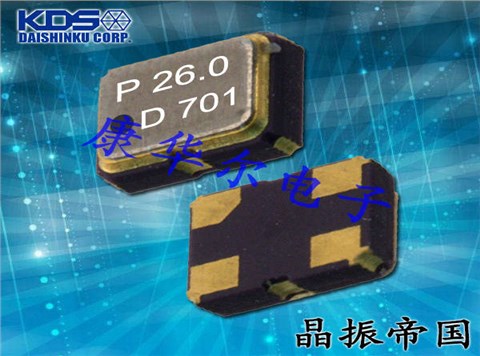

7FE02496A00,DSO221SX传感相机晶振,大真空CMOS输出振荡器
产品特点:
电源电压: 1.8V/2.5V/2.8V/3.3V
支持频率范围: 1~125MHz
矮型对应: 0.8mm
CMOS输出有源晶振
适用于-40~125℃的广阔工作温度范围
带三态功能
支持自动驾驶ⅱ级
符合AEC-Q100/AEC-Q200标准
