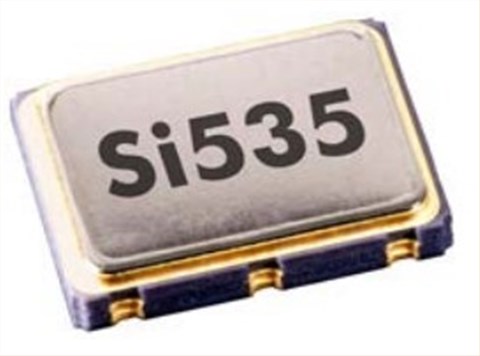

535BB156M250DG,Si535,7050mm,156.25MHz,Silicon差分晶振

535BB156M250DG,Si535,7050mm,156.25MHz,Silicon差分晶振，美国进口晶振，Silicon品牌晶振，型号：Si535，编码为：535BB156M250DG，频率为：156.250MHz，电压：3.3V，LVDS输出差分晶振，温度稳定性：±20ppm，工作温度范围：-40℃至+85℃，小体积晶振尺寸：7.0x5.0mm封装，六脚贴片晶振，有源晶振，石英晶振，差分晶体振荡器。应用程序：10/40/100G数据中心，10G以太网，交换机/路由器，光纤通道/SAS/存储，企业服务器，网络，电信，光模块，无线网络等应用。

535BB156M250DG,Si535,7050mm,156.25MHz,Silicon差分晶振，美国进口晶振，Silicon品牌晶振，型号：Si535，编码为：535BB156M250DG，频率为：156.250MHz，电压：3.3V，LVDS输出差分晶振，温度稳定性：±20ppm，工作温度范围：-40℃至+85℃，小体积晶振尺寸：7.0x5.0mm封装，六脚贴片晶振，有源晶振，石英晶振，差分晶体振荡器。应用程序：10/40/100G数据中心，10G以太网，交换机/路由器，光纤通道/SAS/存储，企业服务器，网络，电信，光模块，无线网络等应用。
Si535 XO利用天空解决方案的先进DSPLL®电路提供一个高速差分频率的超低抖动时钟。与传统的XO不同，每个输出频率都需要一个不同的晶体，而Si535石英晶振使用一个固定的晶体来提供一个大范围的输出频率。这种基于集成电路的方法允许晶体谐振器提供特殊的频率稳定性和可靠性。此外，DSPLL时钟合成提供了优越的电源噪声抑制，简化了在通信系统中通常发现的噪声环境中产生低抖动时钟的任务。基于Si535 IC的XO在装运时被工厂编程，从而消除了与自定义振荡器相关的长时间的前置时间。

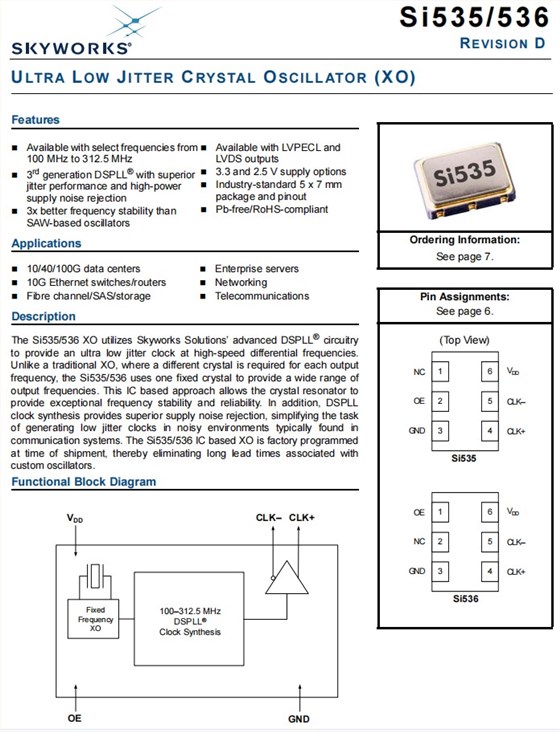

535BB156M250DG,Si535,7050mm,156.25MHz,Silicon差分晶振,产品特点：

535BB156M250DG,Si535,7050mm,156.25MHz,Silicon差分晶振,参数表

Parameter

Symbol

Test Condition

Min

Typ

Max

Unit

Nominal Frequency1

fO

LVPECL/LVDS

156.250

MHz

Initial Accuracy

fi

Measured at +25 °C at time of shipping

—

±1.5

—

ppm

Temperature Stability1,2

–7 –20

— —

+7 +20

ppm

Aging

fa

Frequency drift over first year

±3

ppm

Frequency drift over 20 year life

—

—

±10

ppm

Total Stability2

Temp stability = ±20 ppm

—

—

±31.5

ppm

Temp stability = ±7 ppm

—

—

20

Powerup Time3

tOSC

TA= –40°C — +85°C

10

ms

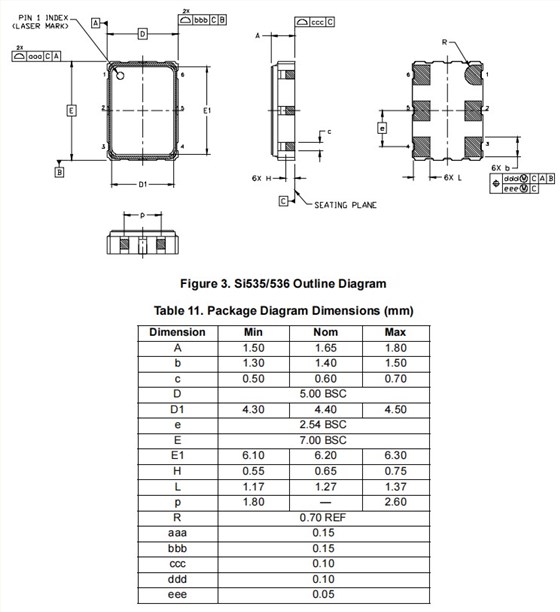

535BB156M250DG,Si535,7050mm,156.25MHz,Silicon差分晶振,尺寸图
