中国电信与谷歌和华为Mate50苹果iPhone14卫星通信通话SG5032VAN爱普生晶振X1G004261007100
谷歌或通过Android14大版本更新引入对卫星连接功能的支持,或许也是尝试性的.毕竟谷歌只做平台,具体的硬件和通信运营需要业界支持.
从华为在Mate50上抢先发布卫星通信功能这一动作来看,爱普生晶振似乎他们也判断苹果不会马上推出卫星通信功能.
在卫星通信功能方面华为已经抢先一步推出了短报文功能,虽然不能打电话,也不能上网.但对于野外探险以及特殊需求的市场来说是非常有用的,对于卫星通信的发展也是一大进步.
如果苹果在欧美推出卫星通信功能,而不在中国市场提供,那可能会影响其在中国市场的形象和地位.因此推测iPhone14仍然推出完善的卫星通话功能.

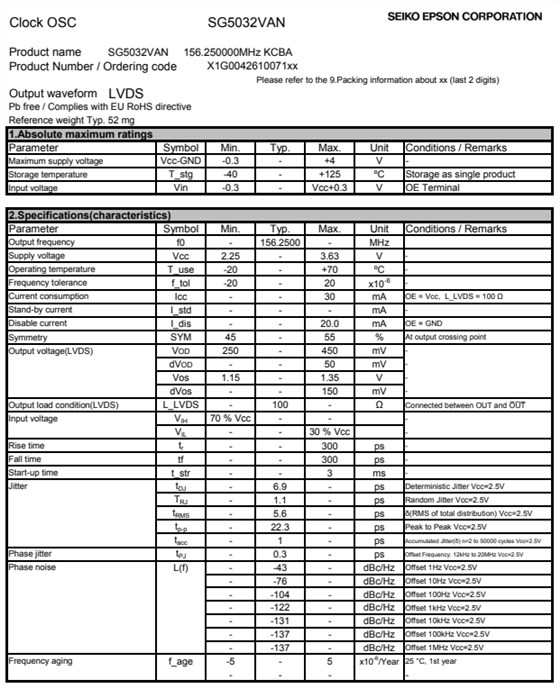

SG5032VAN爱普生晶振X1G004261007100,华为Mate50苹果iPhone14卫星通信差分晶振
| 爱普生有源晶振编码 | 型号 | 频率 | 长X宽X高 | 输出波 | 电源电压 | 工作温度 | 频差 |
| X1G004261006900 | SG5032VAN | 150.000000MHz | 5.00x3.20x1.20mm | LVDS | 2.250to3.630V | -20to70°C | +/-20ppm |
| X1G004261007100 | SG5032VAN | 156.250000MHz | 5.00x3.20x1.20mm | LVDS | 2.250to3.630V | -20to70°C | +/-20ppm |
| X1G004261010200 | SG5032VAN | 250.000000MHz | 5.00x3.20x1.20mm | LVDS | 2.250to3.630V | -40to85°C | +/-30ppm |
| X1G004261010700 | SG5032VAN | 153.600000MHz | 5.00x3.20x1.20mm | LVDS | 2.250to3.630V | -40to85°C | +/-50ppm |
| X1G004261011400 | SG5032VAN | 78.125000MHz | 5.00x3.20x1.20mm | LVDS | 2.250to3.630V | -40to85°C | +/-50ppm |
| X1G004261011900 | SG5032VAN | 120.000000MHz | 5.00x3.20x1.20mm | LVDS | 2.250to3.630V | -40to85°C | +/-50ppm |
| X1G004261012100 | SG5032VAN | 644.531250MHz | 5.00x3.20x1.20mm | LVDS | 2.250to3.630V | -40to85°C | +/-50ppm |
| X1G004261012500 | SG5032VAN | 148.351600MHz | 5.00x3.20x1.20mm | LVDS | 2.250to3.630V | -40to85°C | +/-50ppm |
| X1G004261012600 | SG5032VAN | 133.333300MHz | 5.00x3.20x1.20mm | LVDS | 2.250to3.630V | -40to85°C | +/-50ppm |
| X1G004261012800 | SG5032VAN | 250.000000MHz | 5.00x3.20x1.20mm | LVDS | 2.250to3.630V | -40to85°C | +/-50ppm |
| X1G004261012900 | SG5032VAN | 135.000000MHz | 5.00x3.20x1.20mm | LVDS | 2.250to3.630V | -40to85°C | +/-30ppm |
| X1G004261013100 | SG5032VAN | 322.265625MHz | 5.00x3.20x1.20mm | LVDS | 2.250to3.630V | -40to85°C | +/-30ppm |
| X1G004261013300 | SG5032VAN | 230.000000MHz | 5.00x3.20x1.20mm | LVDS | 2.250to3.630V | -40to85°C | +/-50ppm |
| X1G004261013500 | SG5032VAN | 148.351600MHz | 5.00x3.20x1.20mm | LVDS | 2.250to3.630V | -40to85°C | +/-30ppm |
| X1G004261013600 | SG5032VAN | 644.531250MHz | 5.00x3.20x1.20mm | LVDS | 2.250to3.630V | -40to85°C | +/-30ppm |
| X1G004261013800 | SG5032VAN | 148.351600MHz | 5.00x3.20x1.20mm | LVDS | 2.250to3.630V | -20to70°C | +/-20ppm |
| X1G004261014100 | SG5032VAN | 161.132812MHz | 5.00x3.20x1.20mm | LVDS | 2.250to3.630V | -40to85°C | +/-30ppm |
| X1G004261014300 | SG5032VAN | 625.000000MHz | 5.00x3.20x1.20mm | LVDS | 2.250to3.630V | -40to85°C | +/-30ppm |
| X1G004271000100 | SG5032EAN | 125.000000MHz | 5.00x3.20x1.20mm | LV-PECL | 2.250to3.630V | -40to85°C | +/-50ppm |
| X1G004271000400 | SG5032EAN | 100.000000MHz | 5.00x3.20x1.20mm | LV-PECL | 2.250to3.630V | -40to85°C | +/-50ppm |
| X1G004271001200 | SG5032EAN | 150.000000MHz | 5.00x3.20x1.20mm | LV-PECL | 2.250to3.630V | -40to85°C | +/-50ppm |
| X1G004271001300 | SG5032EAN | 155.520000MHz | 5.00x3.20x1.20mm | LV-PECL | 2.250to3.630V | -40to85°C | +/-50ppm |
| X1G004271001400 | SG5032EAN | 156.250000MHz | 5.00x3.20x1.20mm | LV-PECL | 2.250to3.630V | -40to85°C | +/-50ppm |
| X1G004271002000 | SG5032EAN | 125.000000MHz | 5.00x3.20x1.20mm | LV-PECL | 2.250to3.630V | -40to85°C | +/-30ppm |
| X1G004271003300 | SG5032EAN | 156.250000MHz | 5.00x3.20x1.20mm | LV-PECL | 2.250to3.630V | -40to85°C | +/-30ppm |
对于苹果公司来说,推出一项新的功能势必是全球性的,或者说能在全球大部分范围内都能使用的功能.因此具有上网功能的卫星通信服务或许离我们还有一段距离.
SG5032VAN爱普生晶振X1G004261007100,华为Mate50苹果iPhone14卫星通信差分晶振
